Installation Manual for Windows 2003 Server (manual setup) Edition 04/2006 Fig. 2-34 Add Mirror Menu → Navigate the cursor to the hatch ed field (1) from Disk 0 and press t he right mouse button. → Now sel ect "Add …
Installation Manual for Windows 2003 Server (manual setup) Edition 04/2006

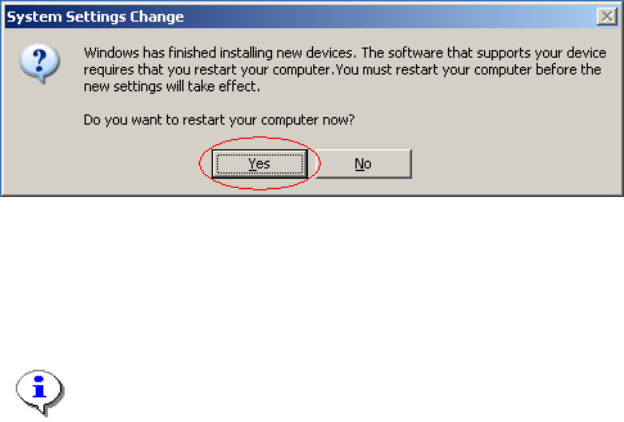

Fig. 2-33 System Settings Change
→ Confirm this information with Yes.
The computer reboots again!
Note:
Depending on the hardware of your computer a dialog may now appear on the screen
- asking you if there are further hardware components to configure.
You can postpone a further hardware configuration activating the appropriate checkbox to
show this dialog again at the next start of Windows 2003.
2.4.3 Procedure
After the second reboot you have to start the Disk Management again. Now proceed as follows:
→ Start the Disk Administrator via Start ->Administrative Tools -> Computer Management -> Disk
Management.
30 / 34
Installation Manual for Windows 2003 Server (manual setup) Edition 04/2006

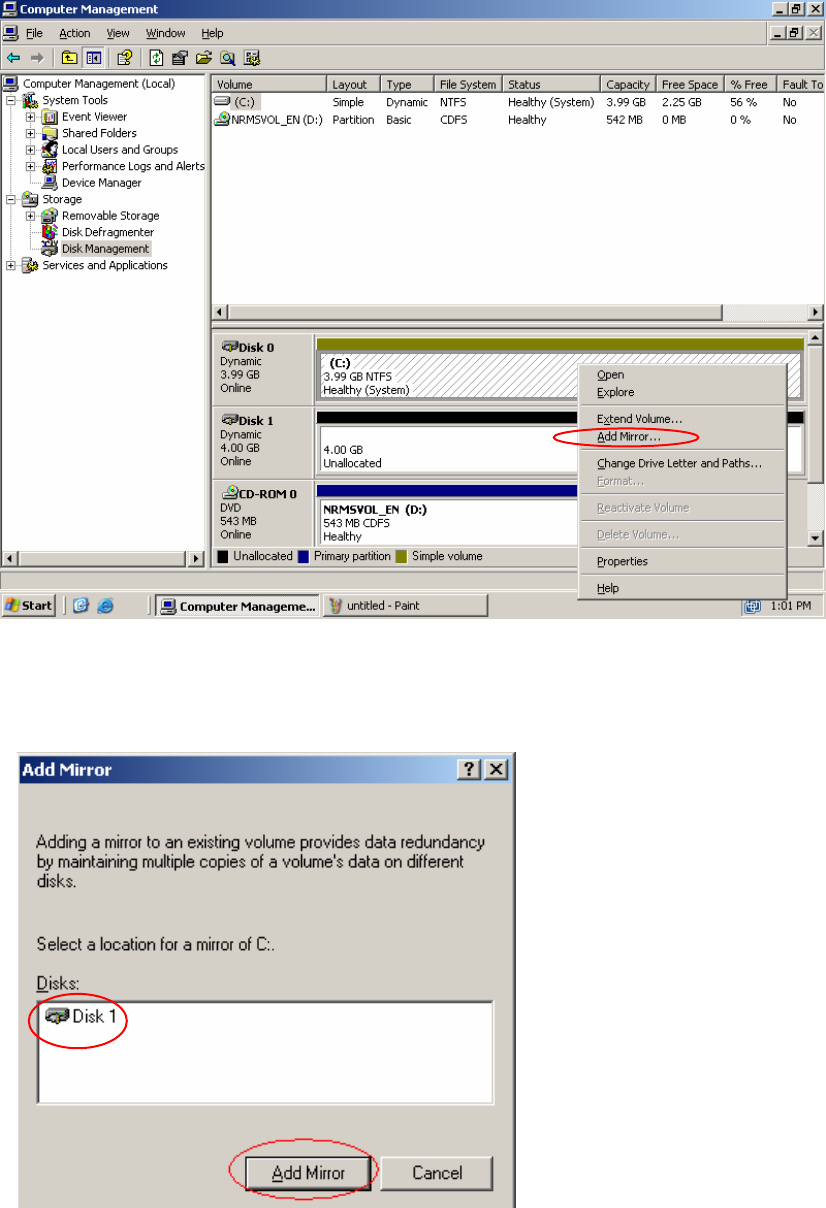

Fig. 2-34 Add Mirror Menu
→ Navigate the cursor to the hatched field (1) from Disk 0 and press the right mouse button.
→ Now select "Add Mirror..." and press the left mouse button.
2
Fig. 2-35 Add Mirror
→ Choose now "Disk 1" and confirm with Add Mirror.
31 / 34
Installation Manual for Windows 2003 Server (manual setup) Edition 04/2006
Fig. 2-36 Computer Management
You can see how much percentage to mirror set was build. You can wait until the mirror set is
completely built.
Note:
The Disk mirroring takes 1,5 hours. Please don’t close the dialog before the mirroring was
done.
Close all dialogs after the disk mirroring was done.
This should be your Boot screen after mirroring and reboot
