Station Software 710.1 (R17-1) / Version Description 06/2017 Edition
12
4.10 Twin Head – Placing Two Long but Narrow Components in One
Cycle
Two long but narrow components can now be placed in one Twin Head cycle even if the
components have a diagonal bigger than a segment distance of 70.8 mm.

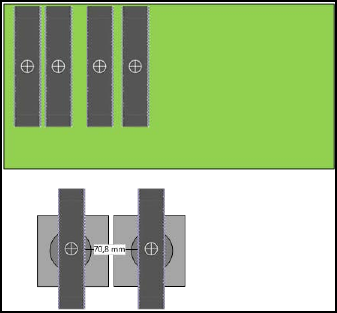

Example:
If these components are placed in an angle of 90 or 270 degrees, they do not collide during
teaching and placing.
4.11 Nozzles – New Concave Nozzles
Compatible mode: Not supported
The station software supports the new concave nozzles 1204, 2204 and 4204.
4.12 Long Board Option up to 1525 mm
Compatible mode: Complete
The licensed Long Board Option up to 1500 mm - Machine Connection license now supports
boards up to 1525 mm. The relevant settings have to be enabled in SIPLACE Pro.
Detailed information on the Long Board Option can be found in the LBO User Manual,
item no.: [00197085-xx].
4.13 Automatic Calibration – System Identification for SX-series
Compatible mode: Complete
The System identification calibration feature has been introduced for the SX-series placement
machines in the automatic calibration. Therefore, an additional calibration step may be required
after the station software has been installed. Please refer to the Installation Manual,
item no.: [00198236-xx].
Station Software 710.1 (R17-1) / Version Description 06/2017 Edition
13
4.14 Miscellaneous Improvements and Adaptions
4.14.1 Audible Signal for Indicator Lamps – New Pulse State
Compatible mode: Complete
The audible signal for the indicator lamps has been enhanced and now supports three states: On,
Off and Pulse (new). The Pulse state is similar to the lamp indicators flashing state.
Allowed pulse values: 50 ms on, 950 ms off.
The audible signal can be switched off in the Production view on the station software GUI.
4.14.2 Station Software GUI – Adaptions
Compatible mode: Complete
– For the following detailed errors a button in the message bar is offered to confirm the error
directly:
40022 Position of dispenser nozzle has not been measured
40040 Reject plate must be empty
40039 Reject plate is full
40033 Prerequisites for changing lane width …
40025 Inspection of dispenser nozzle failed
– When the top side of a component is taught, the wizard will be offered instead of the SIPLACE
Vision teaching page.
Station Software 710.1 (R17-1) / Version Description 06/2017 Edition
14
5 Hardware Specifications
5.1 Supported Feeder Types
The following feeders are supported by the 710.1 station software version:
– 4 mm – 104 mm X-feeder
– 2x8 mm X-feeder
– 16 mm XN-feeder
– Surftape AX (8 mm, 12 mm, 16 mm)
– LED feeder TE
LED feeder HS
– SIPLACE Glue Feeder
– SIPLACE JTF-S (X-series S and SX1/SX2 V2 only)
– SIPLACE JTF-M (X-series S, X4i S micron and SX1/SX2 V2 only)
– SIPLACE JTF-ML (TX-series only)
– SIPLACE JTF-ML2 (TX-series only)
– Arbitrary Carrier X
– Conveyor Carrier X
– Carrier X (XTH) (X2, X3, X4 on location 2 and 4 only)
– Carrier SX (SX1/SX2 with Twin Head and CPP head only)
– FFI feeders:
HanSan LED feeder
Top Engineering LED feeder
Data IO RoadRunners
– IPTE Multi Stick Feeder:
IPTE Multistick 60 AX
IPTE Multistick XL80 AX
– Stick feeder with X-adapter
– Label feeder with X-adapter
– Reject conveyor with X-adapter
– Dip module for X-tables (LDU_X)
– MTC2 (X2, X3, X4 on location 2 and 4, X2 S, X3 S, X4 S on location 2)
– WPC5/WPC6 (SX1/SX2, X-series S on location 2)
– SIPLACE Wafer Systems (CA-series only)
– Splice sensor X-feeder
