3-47 维修与维护 No. 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 P ART NO. FC07-000544B FC30-001 177A FC07-001234A FC18-000520A FC18-000519A FC18-000521A FC15-000574B FC15-000573A FC24-000013A MC19-000171B FC38…
3-46
EXCEN-Series EXCEN
带式喂料带式器的操作手册

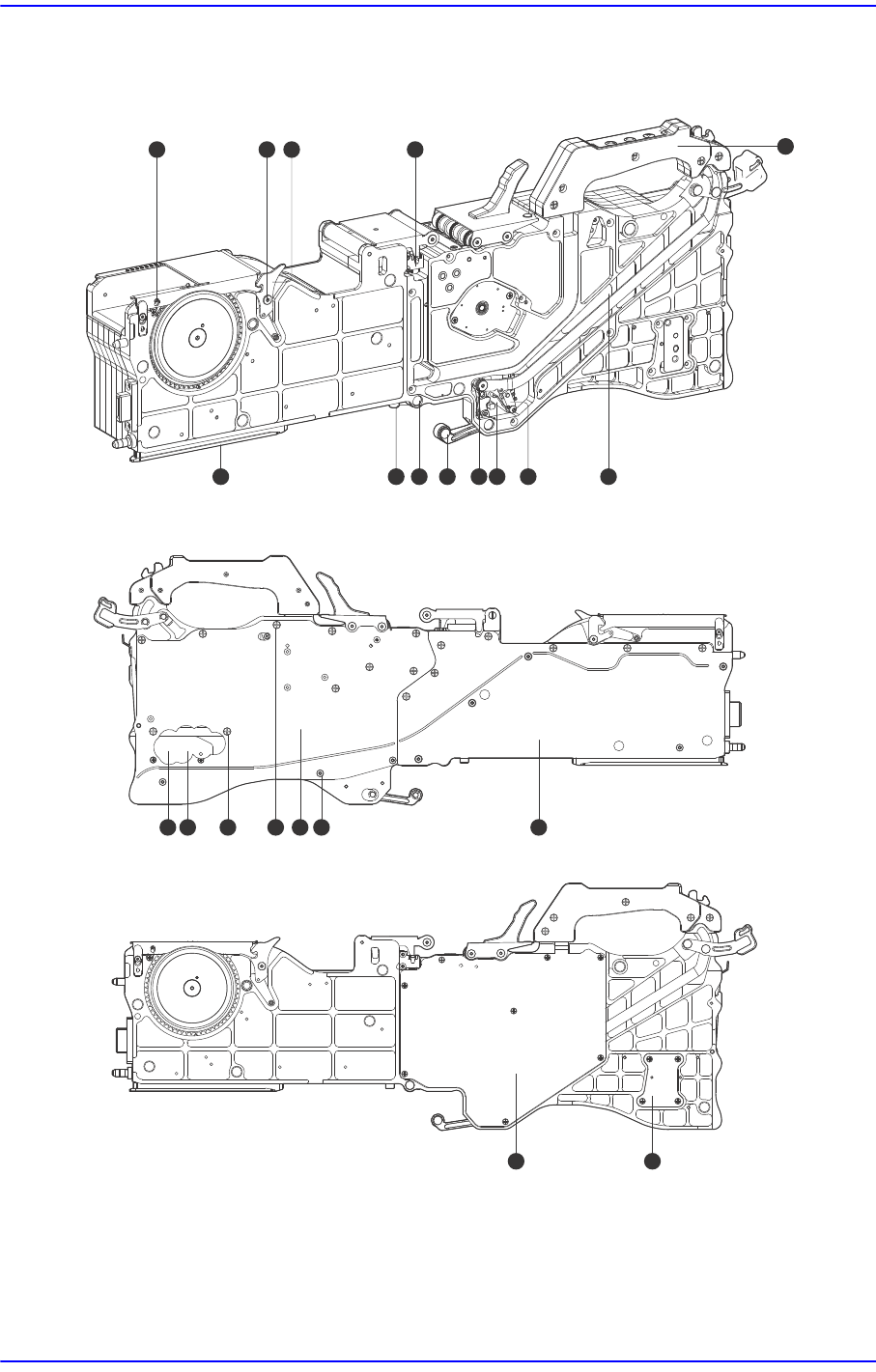

46 45 5544
54535251504947 48
37 38 39 40 41 42 43
57 58
56
3-47
维修与维护
No.
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
PART NO.
FC07-000544B
FC30-001177A
FC07-001234A
FC18-000520A
FC18-000519A
FC18-000521A
FC15-000574B
FC15-000573A
FC24-000013A
MC19-000171B
FC38-000047A
FC09-000866A
J70653553A
J70653554A
AM03-001557C
MC19-000174A
FC38-000046A
Q'TY
1
1
1~3
4
4
8
1
1
1
1
1
1
1
2
1
1
1
PART NAME
V SPLICING RIGHT BLOCK 44
V SPLICING SPACER 44
FC30-001177B + FC07-001234A (FAIR)
FLAT HEAD CAP SCREW
FLAT HEAD CAP SCREW
SOCKET HEAD CAP SCREW
V RIGHT COVER2-L
V RIGHT COVER1-L
V REAR LOCKER-L
V LOCKER LEVER SHAFT-L
V TAPE GUIDE SPRING PLATE-L
INSTALL GUIDE
CLAMPING ROLLER
CLAMP BLOCK SHAFT
CLAMP V ASSY
CLAMP LINK SHAFT1
V CLAMP RETURN SPRING-L
No.
57
58
AM03-000613A
FC28-000220B
AM03-000614A
FC29-000715A
1
1
1
1
CLAMP SWITCH HARNESS ASSY VL
V CLAMP LINK-L
DRAIN SENSOR HARNESS ASSY VL
V HANDLE LEFT-L
PART NO.
FC15-000575A
J70661281A
Q'TY
1
1
PART NAME
V LEFT COVER-L
SPLICING BOARD COVER-L
37
44
51
56 57 58
52 53 54 55
45 46 47 48 49 50
38 39 40 41 42 43
