3-23 维修与维护 38 35 36 37 No. 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 P ART NO. AM03-000616A FC38-000047A FC24-000013A AM03-000614A FC29-000715A FC28-000220A AM03-000613A FC38-000046A MC19-000174A AM03-001557C…
3-22
EXCEN-Series EXCEN
带式喂料带式器的操作手册
3-23
维修与维护
38
35 36 37

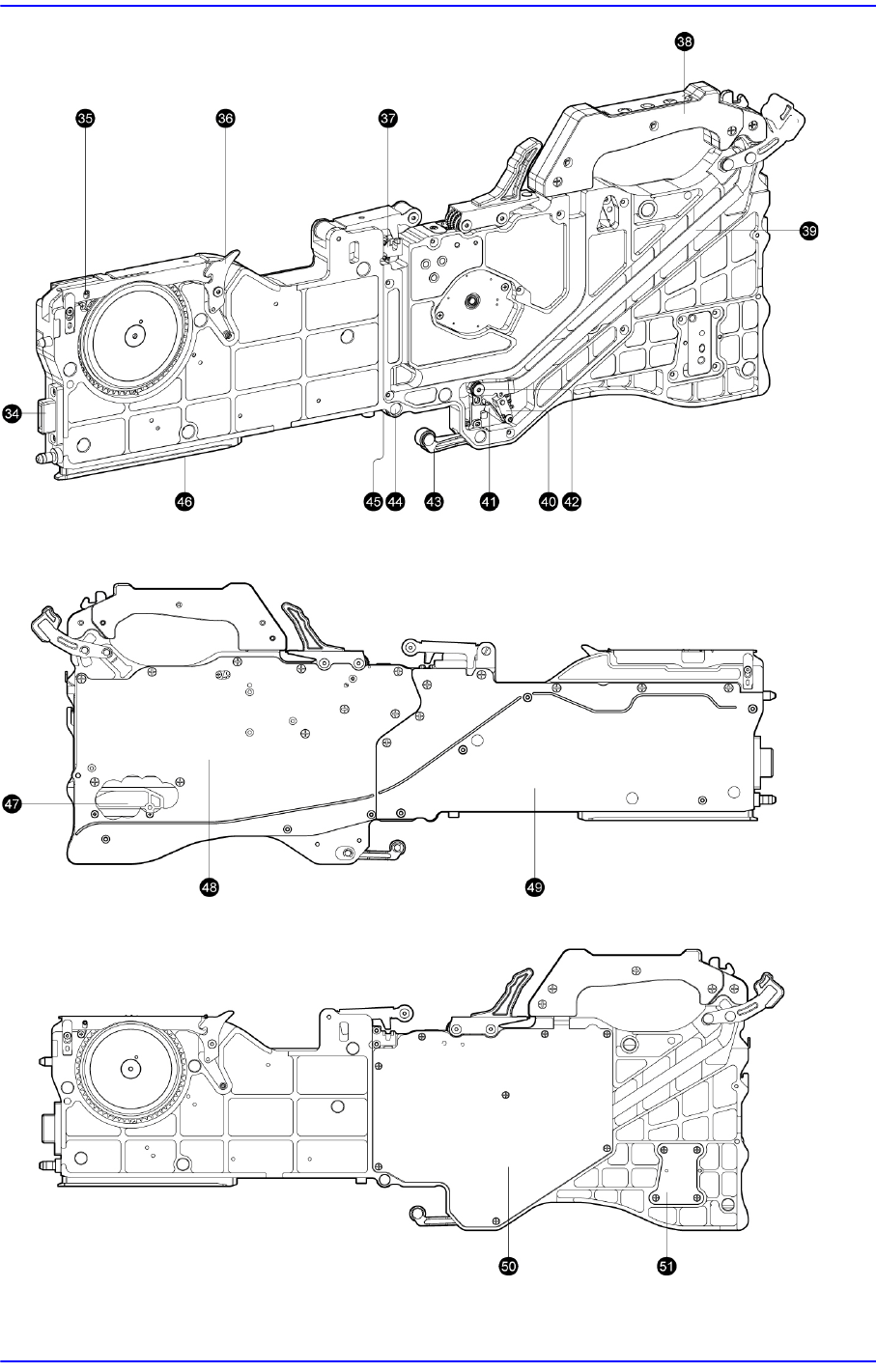

No.
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
PART NO.
AM03-000616A
FC38-000047A
FC24-000013A
AM03-000614A
FC29-000715A
FC28-000220A
AM03-000613A
FC38-000046A
MC19-000174A
AM03-001557C
J70653554A
Q'TY
1
1
1
1
1
1
1
1
1
1
2
PART NAME
MAIN CONNECTOR HARNESS ASSY VL
V TAPE GUIDE SPRING PLATE-L
V REAR LOCKER-L
DRAIN SENSOR HARNESS ASSY VL
V HANDLE LEFT-L
V CLAMP LINK-L
CLAMP SWITCH HARNESS ASSY VL
V CLAMP RETURN SPRING-L
CLAMP LINK SHAFT1
CLAMP V ASSY
CLAMP BLOCK SHAFT
No. PART NO. Q'TY PART NAME
39
43
45
44
40
4241
46
47
48
49 50 51
34
J70653553A
FC09-000866A
FC07-000313C
FC15-000574B
FC15-000573A
FC15-000575A
J70661281A
1
1
1
1
1
1
1
CLAMPING ROLLER
INSTALL GUIDE
V SPLICING RIGHT BLOCK 12
V RIGHT COVER2-L
V RIGHT COVER1-L
V LEFT COVER-L
SPLICING BOARD COVER-L
3-24
EXCEN-Series EXCEN
带式喂料带式器的操作手册

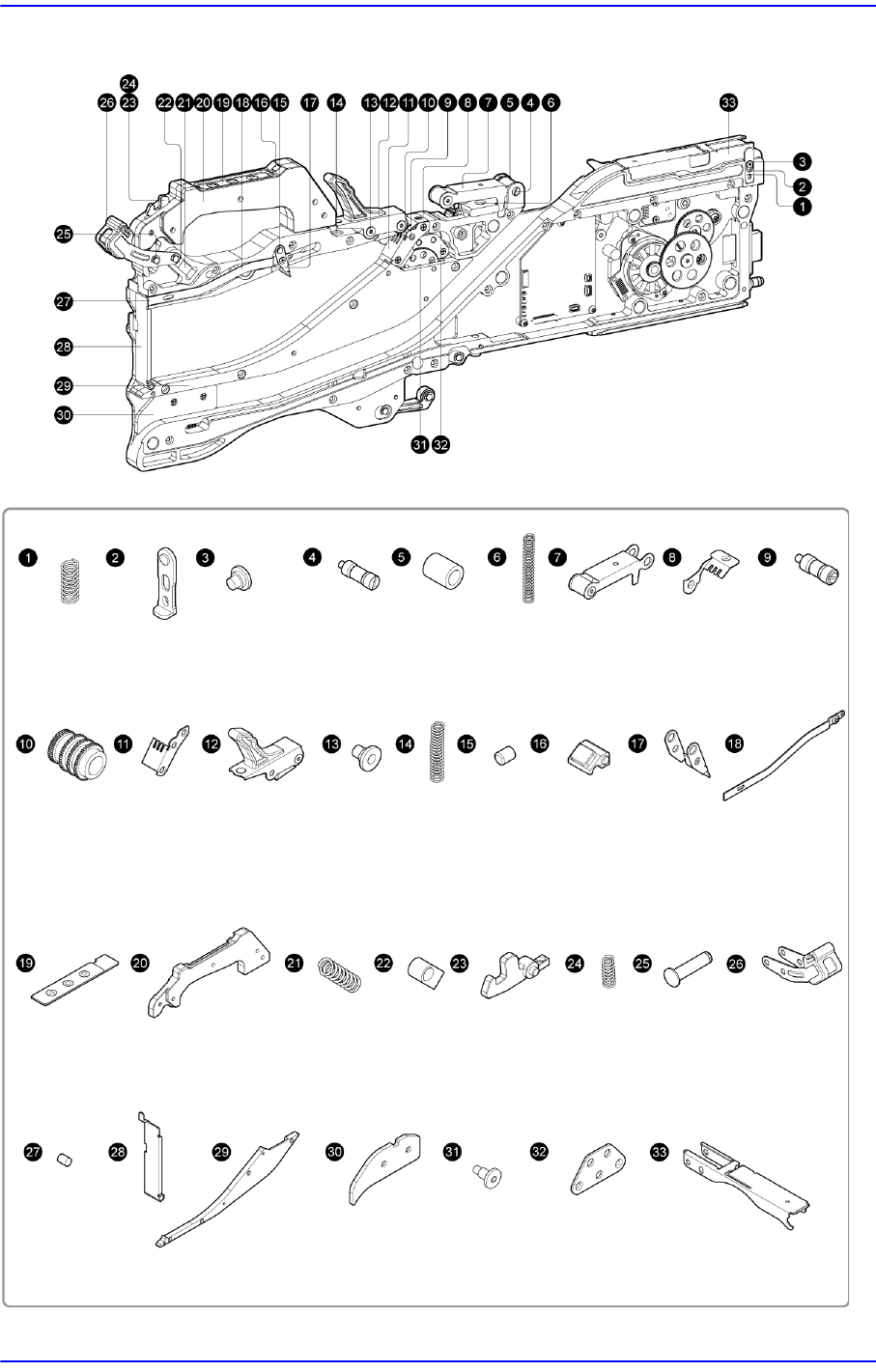

3.5.4. 16mm Feeder
