3-29 维修与维护 No. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 P ART NO. FC38-000044B FC28-000218D MC19-000193B J70661291A J70652830A J70661292A FC18-000303B J71651465A AM03-003749A FC29-…
3-28
EXCEN-Series EXCEN
带式喂料带式器的操作手册

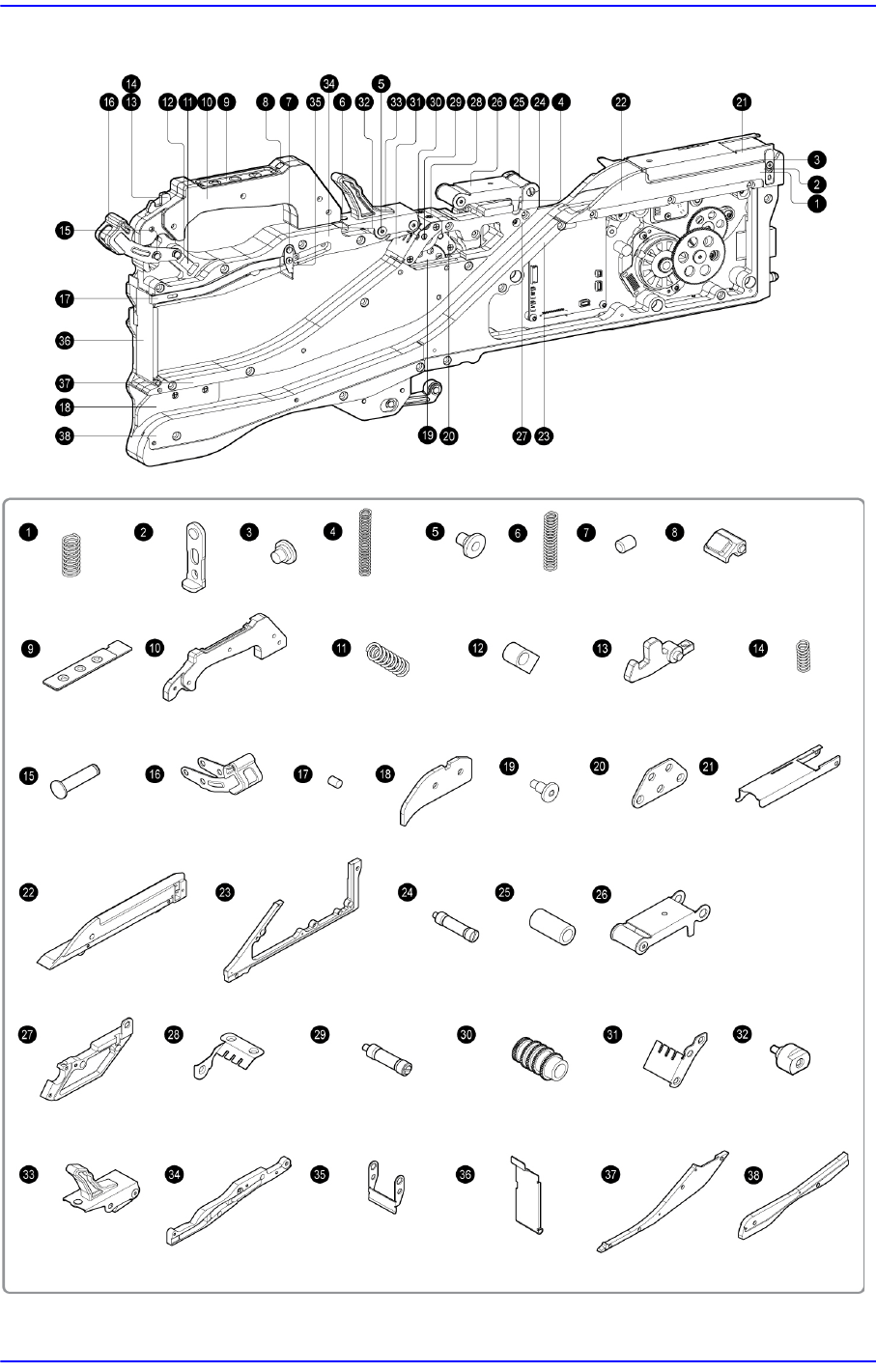

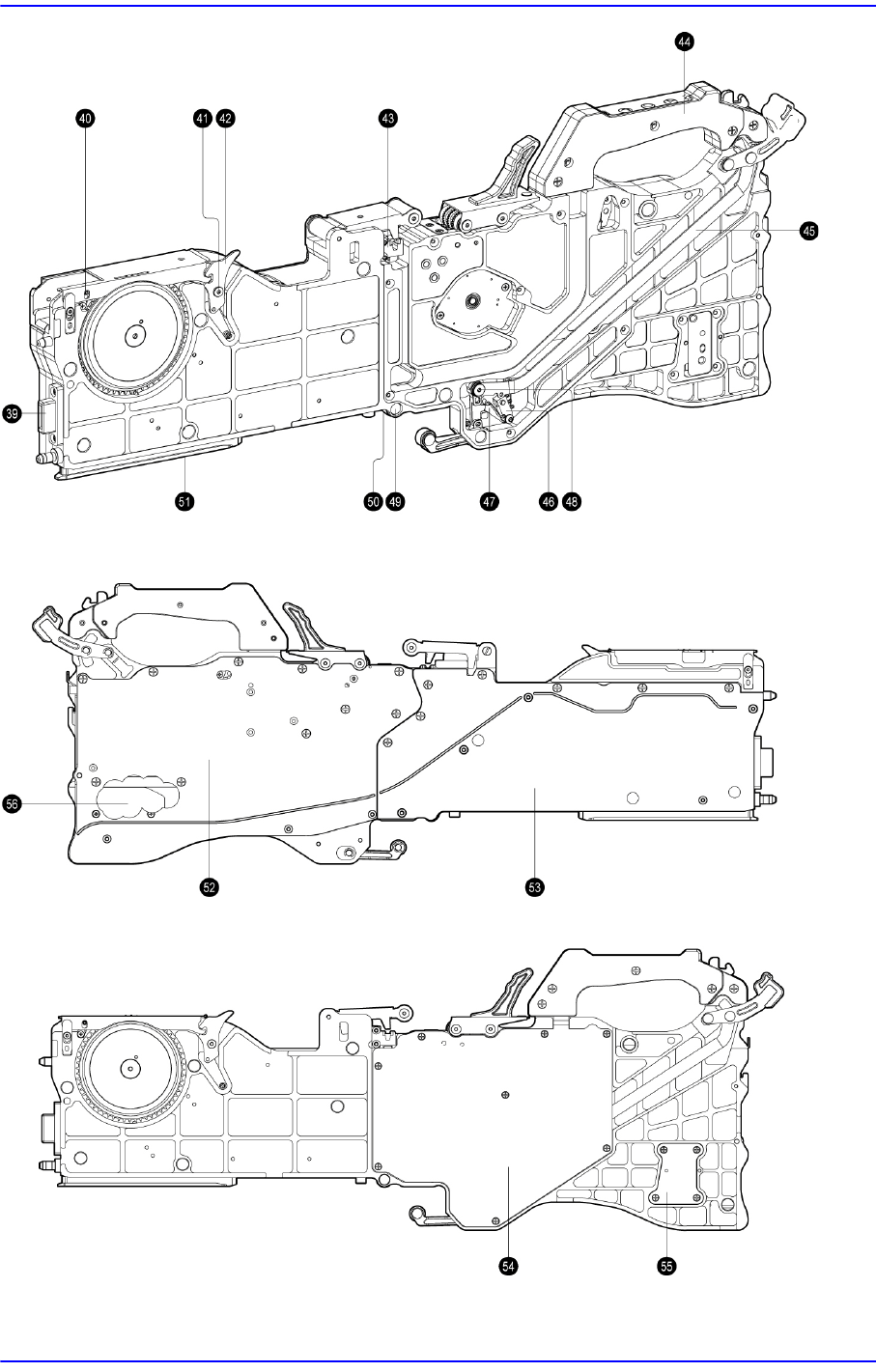

3.5.5. 24mm Feeder
3-29
维修与维护
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
PART NO.
FC38-000044B
FC28-000218D
MC19-000193B
J70661291A
J70652830A
J70661292A
FC18-000303B
J71651465A
AM03-003749A
FC29-000716A
J70661293A
J70661257A
FC09-000865A
J70661295A
J70661254A
J70661259A
EP10-901401
FC07-000312B
MC19-000192B
FC15-000576A
Q'TY
2
2
2
1
3
1
1
1
1
1
1
1
1
1
2
1
1
1
1
1
PART NAME
V LOCKER FRONT SPRING-L
V LOCKER FRONT-L
V LOCKER FRONT SHAFT-L
D-TENSIONER L SPRING
FLANGED SHAFT
D-FOLLOWER L SPRING
V DRAIN LEVER PIN-L
MAIN LED LIGHT
UI ASSY VL
V HANDLE RIGHT-L
CLAMP SPRING
SPRING HOLDER
CLAMP HOOK
CLAMP HOOK SPRING
CLAMP ROLLER SHAFT
CLAMP LEVER
MAGNET
V SPLICING LEFT BLOCK-L
V D-STAGE GEAR1 SHAFT-L
V DRAIN COVER-L
No.
31
32
33
34
35
36
37
38
57
PART NO.
FC09-000950A
MC19-000196A
AM03-003842A
FC07-000307A
FC28-000213A
FC28-000216A
FC07-000309A
FC07-000310A
FC29-002014A
Q'TY
1
1
1
1
1
1
2
1
1
PART NAME
V D-GEAR BKT 24
V DRAIN HANDLE SHAFT 24
V D-FOLLOWER ASSY 24
V DRAIN BOX BLOCK-L
V D-BOX LINK1 24
V D-BOX DOOR 24
V SUPPORT BLOCK DRAIN-L
V SUPPORT BLOCK BOTTOM-L
V HOLE STOPPER 24
FC29-000698C
FC07-000303B
FC07-000308A
MC19-000180A
FC35-000035A
AM03-003841A
FC07-000305A
FC09-000953A
MC19-000183B
MC11-000234D
1
1
1
1
1
1
1
1
1
1
V TAPE GUIDE 24
V TAPE RIGHT GUIDE 24
V SUPPORT BLOCK INDEX-L
V D-TENSIONER HINGE 24
V D-TENSIONER ROLLER 24
V D-TENSIONER ASSY 24
V D-TENSIONER BLOCK 24
V D-GEAR BKT2 24
V D-GEAR SHAFT 24
V DRAIN GEAR 24
