MODEL TCM-X1 10J 0603-002 236 フィーダキャリッジカバー Feeder Carriage Cover Fig. MC-5 作業エリア安全扉パネル Work Area Safety Door Panel 403 405 404 403 401 402 401
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TCM-X110J
0306-001
235
301 630 103 4744 SHOCK ABSORBER 8
302 630 098 0837 MECH PARTS(COLLAR) 8
303 630 098 0844 MECH PARTS(BOLT) 8
304 630 098 0851 MECH PARTS(BOLT) 8
305 630 098 0868 MECH PARTS(ST0PPER) 8
321 630 106 8831 MECH PARTS(BRACKET) 2
322 630 106 8848 MECH PARTS(BRACKET) 2
323 630 106 8855 MECH PARTS(BRACKET) 1
324 630 106 8862 MECH PARTS(BRACKET) 1
325 630 123 8258 MECH PARTS(BRACKET) 1
326 630 123 8265 MECH PARTS(BRACKET) 1
327 630 123 8272 MECH PARTS(BRACKET) 1
328 630 123 8289 MECH PARTS(BRACKET) 1
329 630 106 8558 MECH PARTS(BRACKET) 1
330 630 106 8565 MECH PARTS(BRACKET) 1
331 630 119 1829 MECH PARTS(BRACKET) 2
332 630 119 1836 MECH PARTS(BRACKET) 2
339 630 106 8572 MECH PARTS(RAIL) 1
366 630 098 1926 MECH PARTS(CAP) 1
381 630 103 4409 NUT 16
390 630 000 7800 BOLT,HEX-SCT 1
392 630 109 3710 BOLT 16
393 630 109 4298 BOLT 1
394 630 109 3680 BOLT 8
396 630 109 4328 BOLT 8
399 411 141 4404 WASHER V 8X17X1.6 8
MC-4
MODEL TCM-X110J
0603-002
236
フィーダキャリッジカバー
Feeder Carriage Cover

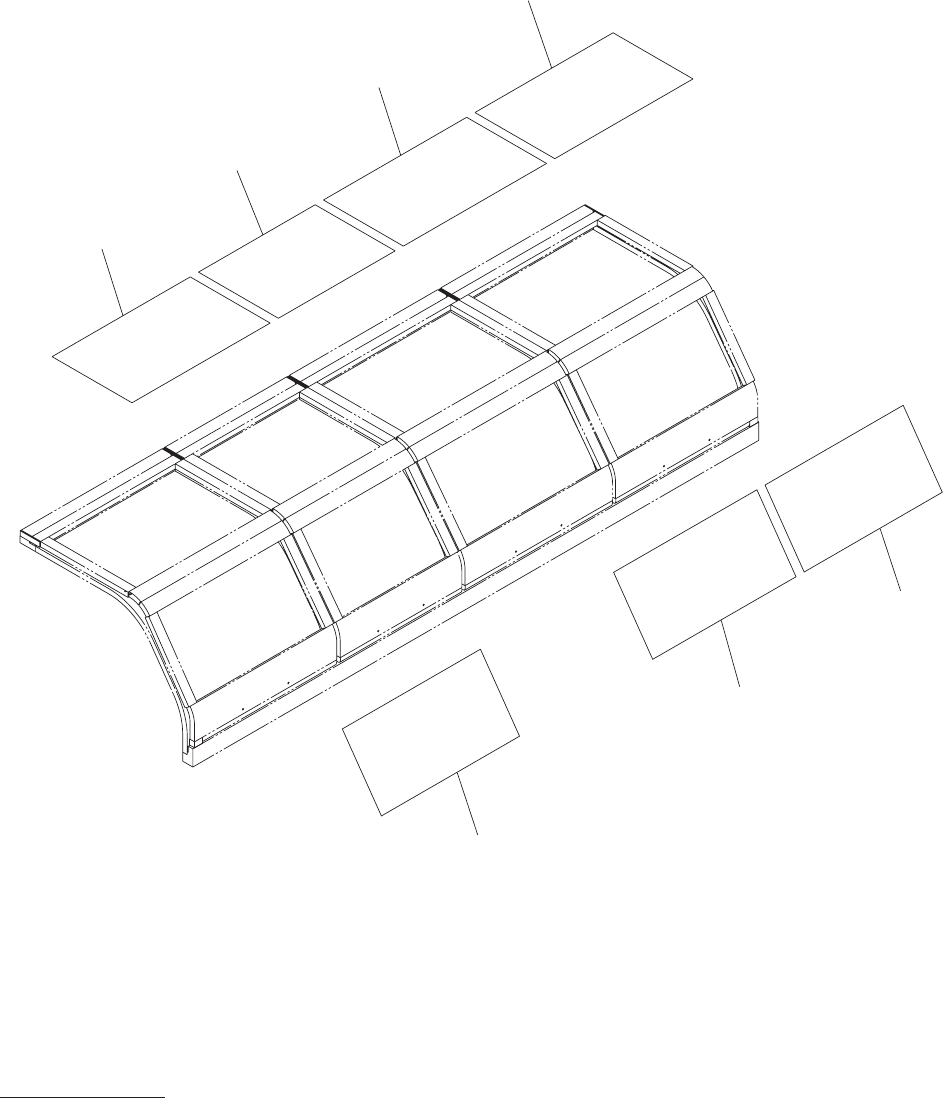

Fig. MC-5
作業エリア安全扉パネル
Work Area Safety Door
Panel
403
405
404
403
401
402
401
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TCM-X110J
0603-002
237
401 630 105 4889 COVER 2
402 630 105 4896 COVER 1
403 630 105 4902 COVER 2
404 630 105 4919 COVER 1
405 630 105 4926 COVER 1
MC-5
