MODEL TCM-X1 10J 0507-002 34 103 103-0 5 103-11 103-2 1 103-2 0 103-31 103-30 103-4 1 103-4 0 103-0 7 103-10 103-09 103-1 4 103-0 6 103-08 103-13 103-12 103-02 111 11 2 113 104 10 5 11 4 106 123 11 2 113 10 7 10 7 10 8 1…
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TCM-X110J
0306-001
33
601 630 117 6024 SUPPORT 1 810C--010-601
602 630 117 6031 SUPPORT 1 810C--010-602
603 411 141 4305 WASHER V 6X12.5X1.6 6 810C--010-603
604 411 141 3001 WASHER SPR 6 6 810C--010-604
605 630 000 7886 BOLT,HEX-SCT 6 810C--010-605
606 411 088 1702 WASHER V 5X10X1 16 810C--010-606
607 411 008 2109 WASHER SPR 5 16 810C--010-607
608 411 140 5006 BOLT HEX 5X16 16 810C--010-608
609 630 086 2720 SUPPORT 5 810C--010-609
610 411 141 4305 WASHER V 6X12.5X1.6 12 810C--010-610
611 411 141 3001 WASHER SPR 6 12 810C--010-611
612 630 000 7879 BOLT,HEX-SCT 12 810C--010-612
613 630 089 2284 NAME PLATE,INDEX 4 810C--010-613
616 630 114 8892 SUPPORT 1 810C--010-616
C-7
MODEL TCM-X110J
0507-002
34
103
103-0
5
103-11
103-2
1
103-2
0
103-31
103-30
103-4
1
103-4
0
103-0
7
103-10
103-09
103-1
4
103-0
6
103-08
103-13
103-12
103-02
111
11
2
113
104
10
5
11
4
106
123
11
2
113
10
7
10
7
10
8
10
8
117
10
9
10
9
124
102
115
116
122

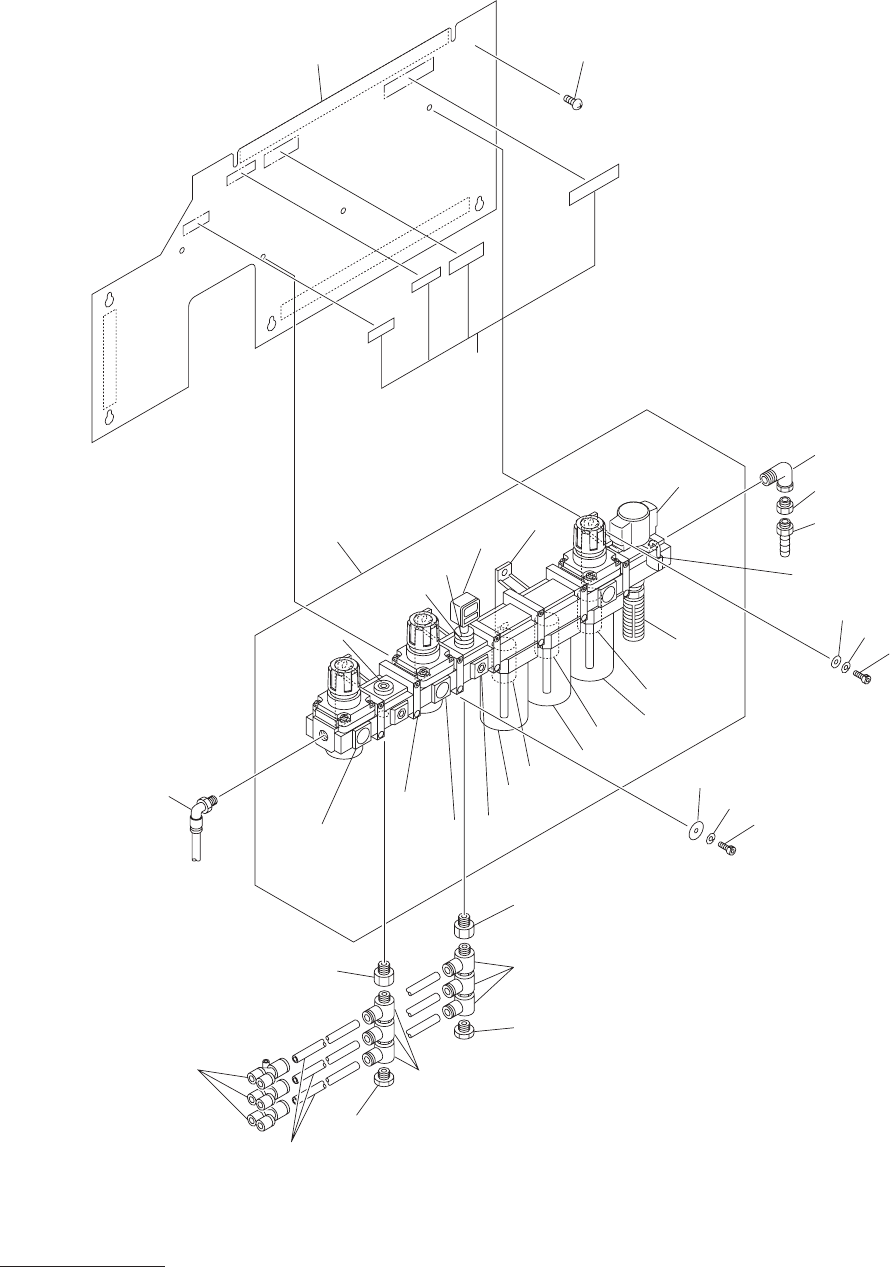

空圧制御部
PNEUMATIC SECTION
Fig. D-2
エアポート配管
Air Port Piping
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TCM-X110J
0507-002
35
102 630 003 7890 PIPE FITTINGS 1 810D--010-102
103 630 118 9109 AIR LINE EQPT 1 810D--010-103
103 -02 630 121 4467 AIR LINE EQPT 1
103 -05 630 121 4481 VALVE 1
103 -06 630 105 7606 SWITCH,PRESSURE 1 SP1
103 -07 630 105 7538 PIPE FITTINGS 2
103 -08 630 121 4504 AIR LINE EQPT 4
103 -09 630 121 4498 AIR LINE EQPT 3
103 -10 630 121 4474 AIR LINE EQPT 1
103 -11 630 105 7521 AIR LINE EQPT 1
103 -12 630 121 4535 PIPE FITTINGS 1
103 -13 630 105 7545 PIPE FITTINGS 1
103 -14 630 105 7569 PIPE FITTINGS 5
103 -20 630 121 4436 AIR LINE EQPT 1
103 -21 630 121 5648 AIR LINE EQPT(ELEMENT) 1
103 -30 630 121 4443 AIR CLEAN EQPT 1
103 -31 630 121 5655 AIR LINE EQPT(ELEMENT) 1
103 -40 630 121 4450 AIR CLEAN EQPT 1
103 -41 630 121 5662 AIR LINE EQPT(ELEMENT) 1
104 630 003 8033 PIPE FITTINGS 1 810D--010-104
105 630 008 0285 PIPE FITTINGS 1 810D--010-105
106 630 003 7364 PIPE FITTINGS 1 810D--010-106
107 630 003 8231 PIPE FITTINGS 2 810D--010-107
108 630 003 8224 PIPE FITTINGS 6 810D--010-108
109 630 003 8248 PIPE FITTINGS 2 810D--010-109
111 411 141 4305 WASHER V 6X12.5X1.6 2 810D--010-111
112 411 141 3001 WASHER SPR 6 4 810D--010-112
113 630 000 7893 BOLT,HEX-SCT 4 810D--010-113
114 630 053 4917 MECH PARTS (PADLOCK) 1 810D--010-114
115 630 122 6866 COVER(RBR) 1 810D--010-115
116 411 113 9109 SCR TRS 5X10 7 810D--010-116
117 630 089 9559 PIPE FITTINGS 3 810D--010-117
122 630 131 6277 NAME PLATE,PARTS 1 810D--010-122
123 630 001 0237 WASHER 2 810D--010-123
124 630 119 6848 TUBE 1 810D--010-124
