Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE MODEL TCM-X1 10J 0306-001 295 351 630 1 1 1 1728 ASSY ,CORD(X100MOT F1) 1 -XCN105 810SB-010-351 354 630 1 1 1 2633 ASSY ,CORD(X100MOT F2) 1 -XCN1 17 810SB-010-354 355 630 …
MODEL TCM-X110J
0306-001
294
ケーブル配線
CABLE WIRING

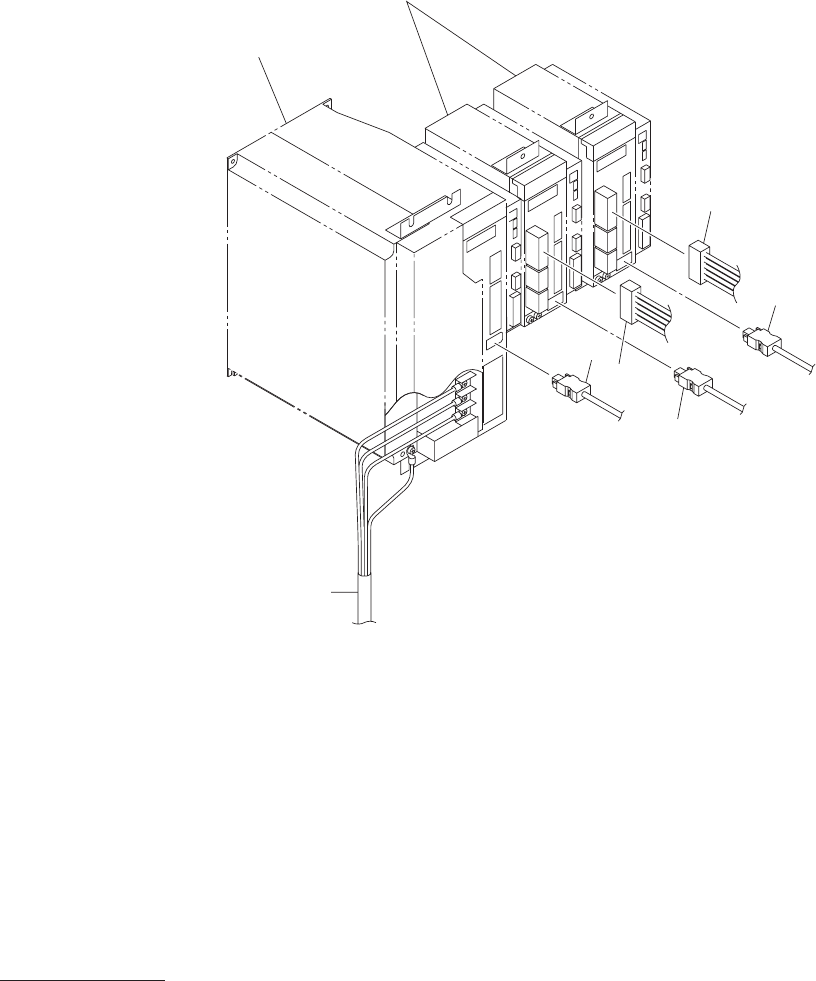

Fig. SB-4 F
軸ドライバ
F Axis Drivers
See Fig.RL-5
Key No.453
ASMD2
(F1)
ASMD5
(F2)
351
355
354
358
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TCM-X110J
0306-001
295
351 630 111 1728 ASSY,CORD(X100MOT F1) 1 -XCN105 810SB-010-351
354 630 111 2633 ASSY,CORD(X100MOT F2) 1 -XCN117 810SB-010-354
355 630 108 9256 CORD (LINEAR 2.7M) 1 XCN106-XCN107 810SB-010-355
358 630 108 9249 CORD (LINEAR 2.1M) 1 XCN118-XCN119 810SB-010-358
SB-4
MODEL TCM-X110J
0306-001
296
ケーブル配線
CABLE WIRING

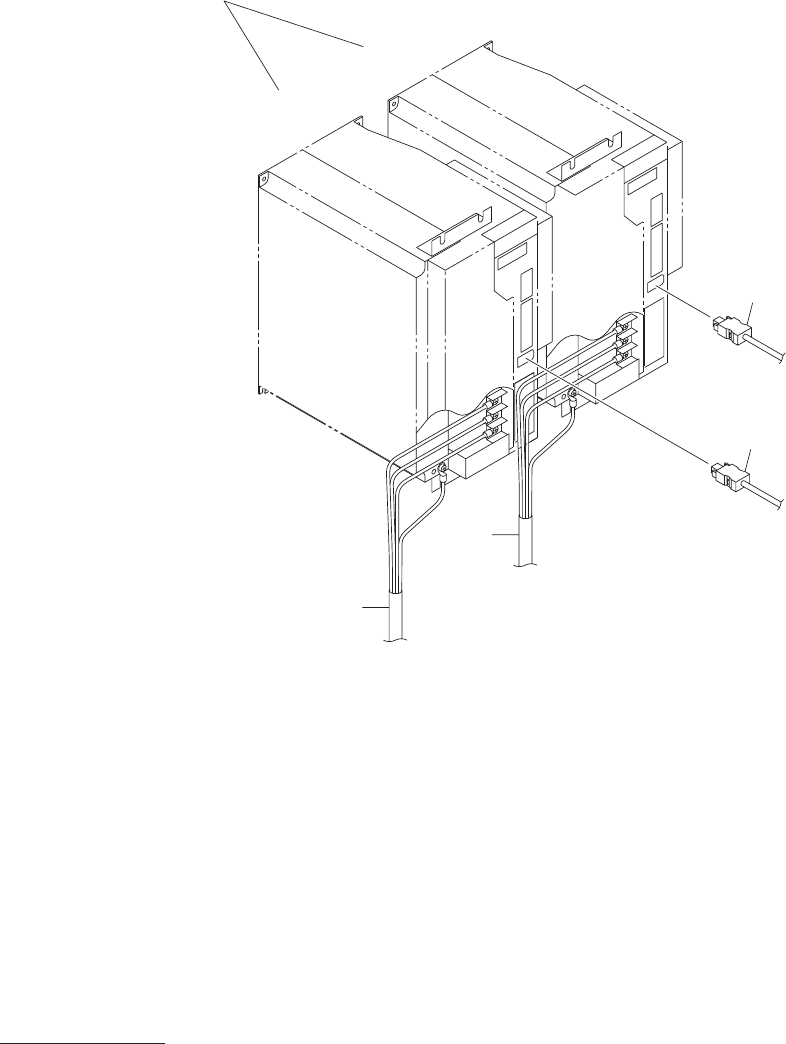

Fig. SB-6
H
軸、
CZ
軸、
MZ
軸ドライバ
H Axis,CZ Axis,MZ Axis Driver
553
551
553
551
See Fig.RM-1
Key No.55
ASMD10
(MZ)
ASMD9
(CZ)
See Fig.RM-1
Key No.54
ASMD1(H)
554
552
