CP-65 P ARTS LIST ver09 2 9 . 本体( Y A B ) 2 9 . B o d y ( Y A B ) 2 9 - 1 2 9 . 本体( Y A B ) 2 9 . B o d y ( Y A B ) 2 7 2 5 3 0 5 , 2 1 2 4 2 5 3 8 3 4 3 3 2 8 2 6 4 3 0 1 3 1 2 1 7 2 0 4 6 4 5 3 5 4 7 1 6 1 9 1 2 1 3 1 …
28.エアー配管図(YPI)
28.Pneumatic circuit diagram(YPI)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
43 K5339C 2 CONTROLLER, SPEED ｺﾝﾄﾛｰﾗ ｽﾋﾟｰﾄﾞ AS1301F-M5-06(ｼﾛ)
44 S1056A 1 SILENCER ｻｲﾚﾝｻ AN101-01
45 H1134A 1 VALVE, SOL ﾊﾞﾙﾌﾞ SOL VZ415-5LZ-01-U
46 H1037H 1 VALVE, MANUAL ﾊﾞﾙﾌﾞ 手動 HV8-01-2
47 H1007H 2 GENERATOR, VACUUM 発生器 真空 VSL10-601
49 S4016R 1 SEPARATOR, MIST ｾﾊﾟﾚｰﾀ ﾐｽﾄ AFM3000-02-D
50 1 VALVE, PRESSURE REDUCING ﾊﾞﾙﾌﾞ 減圧 AF2000-02-BG
51 WPL5012 1 CYLINDER, AIR ｼﾘﾝﾀﾞ ｴｱｰ
52 K5332A 2 CONTROLLER, SPEED ｺﾝﾄﾛｰﾗ ｽﾋﾟｰﾄﾞ SS4-M5A ･
CP-65 PARTS LIST ver09
28 - 3
28.エアー配管図(YPI)
28.Pneumatic circuit diagram(YPI)
CP-65 PARTS LIST ver09

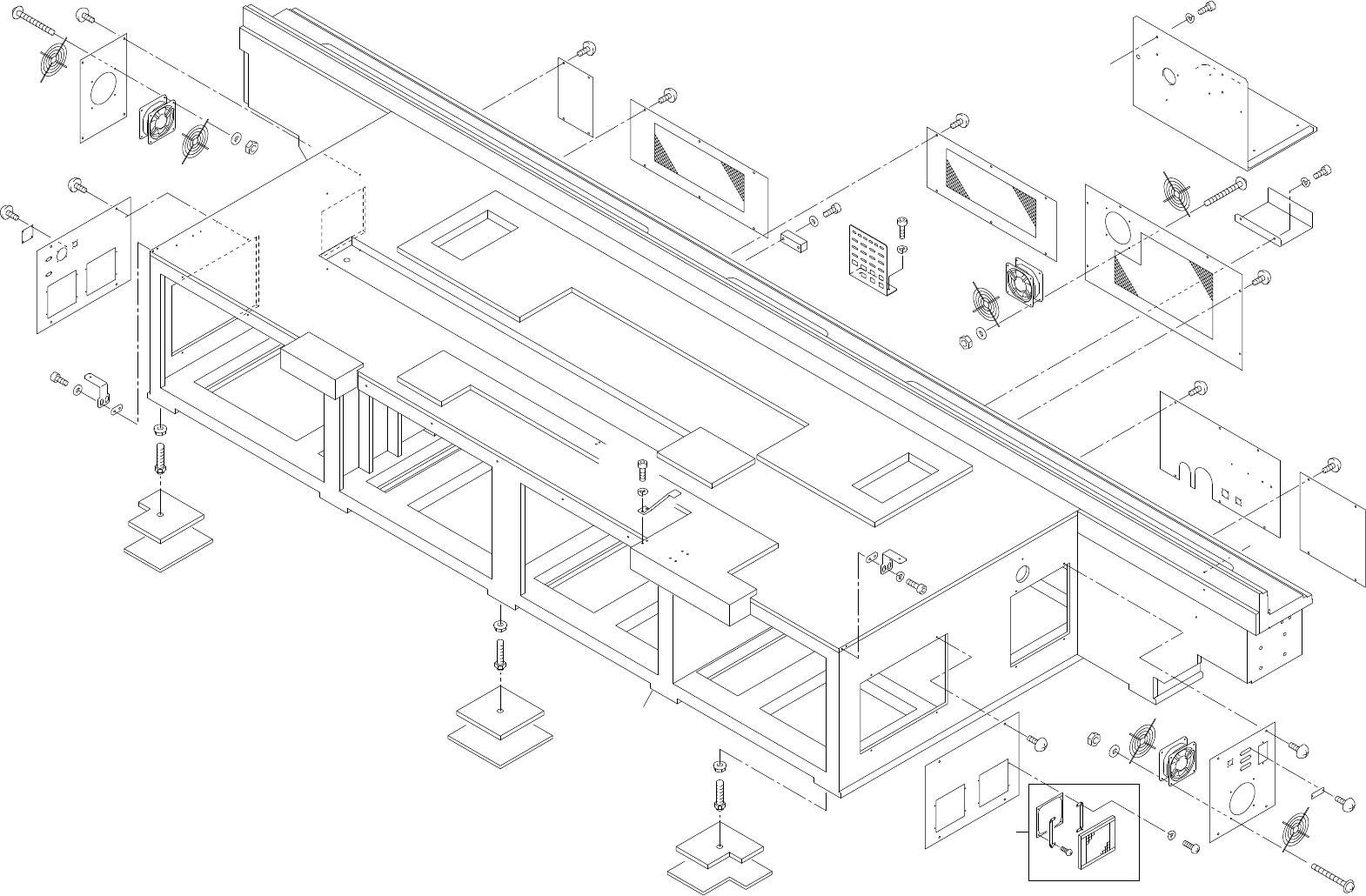

29.本体(YAB)
29.Body(YAB)
29 - 1
29.本体(YAB)
29.Body(YAB)
27
25
30
5,21
24
25
38
34
33
2826
4
30
13
12
17
20
46
45
35
47
16
19
12
13
1
48
36
31
20
18
12
13
47
35
45
46
2
30
25
27
30
3
24
25
34
38
11
30
10
30
15
37
32
39
35
29
9
30
38
34
25
24
8
30
25
27
36
31
14
30
7
30
6
50
52
51
53
36
31
54
B
B
x16
208
176
165
175
161
175
161
175
161
183
162
176
167
175
161
13
13
B
A
139
26
29.本体(YAB)
29.Body(YAB)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
1 YAB0018 1 BED ﾍﾞｯﾄﾞ
2 WAB0301 1 COVER ｶﾊﾞｰ
3 WAB0312 1 COVER ｶﾊﾞｰ
4 WAB0320 1 COVER ｶﾊﾞｰ
5 WAB0343 1 COVER ｶﾊﾞｰ
6 YAB0050 1 COVER ｶﾊﾞｰ
7 YAB0020 1 COVER ｶﾊﾞｰ
8 WAB0043 1 COVER ｶﾊﾞｰ
9 YAB0030 1 COVER ｶﾊﾞｰ
10 YAB0040 1 COVER ｶﾊﾞｰ
11 YAB0060 1 COVER ｶﾊﾞｰ
12 MGA0262 14 BOLT, LEVELING ﾎﾞﾙﾄ ﾚﾍﾞﾘﾝｸﾞ
13 MGA0272 14 NUT ﾅｯﾄ
14 MGA0280 1 HOLDER 受け
15 MPZ4350 1 STOPPER ｽﾄｯﾊﾟ
16 GXA2070 10 SHEET, LEVELING ｼｰﾄ ﾚﾍﾞﾘﾝｸﾞ
17 GXA2080 1 SHEET, LEVELING ｼｰﾄ ﾚﾍﾞﾘﾝｸﾞ
18 GXA2090 1 SHEET, LEVELING ｼｰﾄ ﾚﾍﾞﾘﾝｸﾞ
19 GXA2100 10 PAD, ANTI-VIBRATION ﾊﾟｯﾄ 防振
20 GXA2110 2 PAD, ANTI-VIBRATION ﾊﾟｯﾄ 防振
21 CSAB0020 1 COVER ｶﾊﾞｰ (Option)For SECS/GEM
24 H2013Z 3 FAN ﾌｧﾝ 109P1224H402
25 K1141T 6 GUARD, FIN ｶﾞｰﾄﾞ ﾌｨﾝ 109-019C
26 H3019A 4 FILTER ﾌｨﾙﾀ A-20
27 K5199T SCREW, WASHER ASS'Y 小ﾈｼﾞ座金組込み M4X40L
28 K5256A SCREW, HEX SOCKET BUTTON 小ﾈｼﾞ六角穴ﾎﾞﾀﾝ M3X8L
29 H5298A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X10L
30 K5215A SCREW, TRUSS 小ﾈｼﾞ ﾄﾗｽ M5X10L
31 H5322A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X15L
32 H5360A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M10X25L
33 W1021A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M
34 W1041A WASHER, FLAT ﾜｯｼｬ 平 4M/MX0.8X9
35 W1023A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M
36 W1024A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M
37 W1015A WASHER, CONICAL ﾜｯｼｬ 皿 M-10-H
38 N1080A NUT, HEX ﾅｯﾄ 六角 M4 P=0.7
39 WWZ0145 1 PLATE ﾌﾟﾚｰﾄ
CP-65 PARTS LIST ver09
29 - 2
