CP-65 PARTS LIST ver09

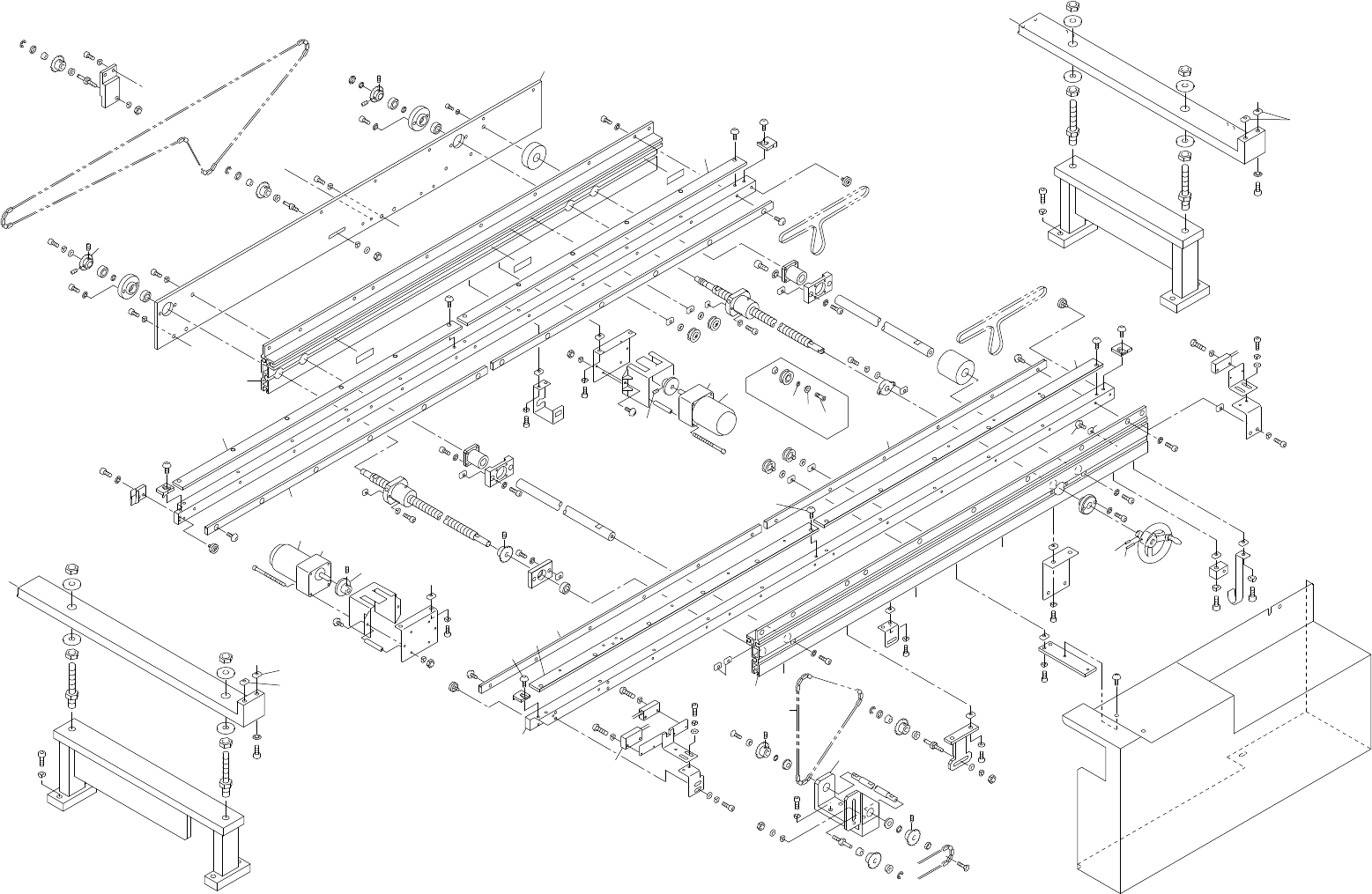

4.アウトコンベア(YQC)
4.Out conveyor(YQC)
4 - 1
4.アウトコンベア(YQC)
4.Out conveyor(YQC)
x8.5
A
D
B
G
C
65
92
107
85
105
71
64
43
116
61
96
108
56
98
91
65
54
114
60
87
28
132
110
57
57
110
42
65
67
109
94
90
98
62
65
98
91
108
96
65
56
54
116
114
61
60
132
28
87
121
118
120
121
119
43
16
107
92
64
71
65
85
105
110
57
110
57
11
65
109
94
65
12
109
98
103
98
92
30
78
49
74
73
74
63
113
112
81
51
9
133
72
75
48
63
74
73
74
78
142
98
109
112
133
113
72
48
75
103
98
F
98
109
89
97
21
78
49
74
73
74
19
31
115
55
10
99
124
123
115
127
66
68
52
52
68
66
99
124
122
10
66
17
97
88
18
84
96
101
79
111
100
98
91
128
65
65
25
98
91
93
98
20
65
131
46
92
98
65
130
65
98
91
125
102
98
117
14
135
111
100
134
111
100
88
97
102
79
27
84
105
22
23
115
115
55
A
F
G
C
B
D
92
98
90
107
92
98
92
98
103
113
50
76
47
70
76
103
98
109
92
98
78
49
74
73
74
59
32
47
90
107
113
50
76
47
70
76
92
98
3
15
88
106
115
115
40
53
115
115
2
39
5
53
36
86
96
69
41
113
73
76
58
65
91
107
96
86
35
37
53
4
115
115
7
45
69
82
65
8
92
98
103
6
45
115
53
115
38
69
129
88
106
24
26
107
92
106
88
33
34
1
113
113
136
137
138
139
140
141
208
176
165
175
161
175
161
175
161
183
162
176
167
175
161
13
13
B
A
139
26
4.アウトコンベア(YQC)
4.Out conveyor(YQC)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
1 YQC1010 1 PLATE ﾌﾟﾚｰﾄ
2 YQC1020 1 PLATE ﾌﾟﾚｰﾄ
3 YQC1030 1 PLATE ﾌﾟﾚｰﾄ
4 YQC1040 1 RAIL ﾚｰﾙ
5 YQC1050 1 RAIL ﾚｰﾙ
6 YQC1070 1 GUIDE, BELT ｶﾞｲﾄﾞ ﾍﾞﾙﾄ
7 YQC1080 1 GUIDE, BELT ｶﾞｲﾄﾞ ﾍﾞﾙﾄ
8 YQC1092 1 BALL SCREW ﾎﾞｰﾙﾈｼﾞ
9 YQC1101 1 BKT BKT
10 YQC0250 4 BOLT ﾎﾞﾙﾄ
11 YQC1130 1 BRIDGE ﾌﾞﾘｯｼﾞ
12 YQC1140 1 BKT BKT
14 MQC3630 1 BKT, SENSOR BKT ｾﾝｻ
15 MQC3753 1 STOPPER ｽﾄｯﾊﾟ
16 MQC3941 1 STOPPER ｽﾄｯﾊﾟ
17 MQC4092 1 BKT, SENSOR BKT ｾﾝｻ
18 GVC2182 1 BKT, SENSOR BKT ｾﾝｻ
19 GVC2311 1 SHAFT ｼｬﾌﾄ
20 GVC2420 1 BKT, COVER BKT ｶﾊﾞｰ
21 YQC1190 1 PLATE ﾌﾟﾚｰﾄ
22 YQC1210 1 JOINT ｼﾞｮｲﾝﾄ
23 LQC1510 1 GUIDE ｶﾞｲﾄﾞ
24 AJQC3941 1 HANDLE ﾊﾝﾄﾞﾙ
25 CLC3212 1 HOOK ﾌｯｸ
26 CLC9031 1 BKT BKT
27 YQC1180 2 NUT ﾅｯﾄ
28 M5063A 2 MOTOR, REVERSIBLE ﾓｰﾀ ﾘﾊﾞｰｼﾌﾞﾙ RM-H6A06ZMR039
30 . 1 CHAIN, ROLLER ﾁｪｰﾝ ﾛｰﾗ RS25NP 86 Link
31 . 1 CHAIN, ROLLER ﾁｪｰﾝ ﾛｰﾗ RS25NP 246 Link
32 N1014A 1 NUT, FINE U ﾅｯﾄ ﾌｧｲﾝU AN00
33 H2056A 1 PIN, SPRING ﾋﾟﾝ ｽﾌﾟﾘﾝｸﾞ 4ﾟX14L
34 H2061A 1 PIN, SPRING ﾋﾟﾝ ｽﾌﾟﾘﾝｸﾞ 4ﾟX28L
35 YQC0060 1 GUIDE, BELT ｶﾞｲﾄﾞ ﾍﾞﾙﾄ
36 YQC0080 1 GUIDE, BELT ｶﾞｲﾄﾞ ﾍﾞﾙﾄ
37 YQC0100 1 GUIDE, BELT ｶﾞｲﾄﾞ ﾍﾞﾙﾄ
38 YQC0110 1 GUIDE, BELT ｶﾞｲﾄﾞ ﾍﾞﾙﾄ
39 YQC0120 1 GUIDE, BELT ｶﾞｲﾄﾞ ﾍﾞﾙﾄ
CP-65 PARTS LIST ver09
4 - 2
4.アウトコンベア(YQC)
4.Out conveyor(YQC)
4.アウトコンベア(YQC)
4.Out conveyor(YQC)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
40 YQC0130 1 GUIDE, BELT ｶﾞｲﾄﾞ ﾍﾞﾙﾄ
41 YQC0142 1 BALL SCREW ﾎﾞｰﾙﾈｼﾞ
42 YQC0171 1 BRIDGE ﾌﾞﾘｯｼﾞ
43 YQC0190 2 SHAFT ｼｬﾌﾄ
45 YQC0210 2 BELT ﾍﾞﾙﾄ
46 WQC0120 1 HOLDER 受け
47 GVC0141 3 COLLAR ｶﾗｰ
48 GVC0320 2 COLLAR ｶﾗｰ
49 GVC0350 3 COLLAR ｶﾗｰ
50 GVC2262 2 SPROCKET ｽﾌﾟﾛｹｯﾄ
51 GVC2320 1 SHAFT ｼｬﾌﾄ
52 MQC1061 4 PULLEY ﾌﾟｰﾘ
53 MQC1290 4 PULLEY ﾌﾟｰﾘ
54 MQC3293 2 COVER ｶﾊﾞｰ
55 MQC3323 2 GUIDE ｶﾞｲﾄﾞ
56 MQC3421 2 BKT BKT
57 MQC3440 8 WASHER ﾜｯｼｬ
58 MQC3451 1 HOLDER ﾎﾙﾀﾞ
59 MQC3461 1 SHAFT ｼｬﾌﾄ
60 MQC3501 2 PULLEY ﾌﾟｰﾘ
61 MQC3901 8 SPACER ｽﾍﾟｰｻ
62 WQC0142 1 BKT BKT
63 MQC4130 2 SHAFT ｼｬﾌﾄ
64 IQC5791 2 PLATE ﾌﾟﾚｰﾄ
65 IQC6062 29 NUT ﾅｯﾄ
66 IQC6071 6 NUT ﾅｯﾄ
67 IQC6290 1 NUT ﾅｯﾄ
68 IQC6041 4 RETAINER, BEARING 押え ﾍﾞｱﾘﾝｸﾞ
69 JQC3672 4 NUT ﾅｯﾄ
70 CLC9051 2 HOLDER ﾎﾙﾀﾞ
71 H4429H 2 BEARING, BALL ﾍﾞｱﾘﾝｸﾞ ﾎﾞｰﾙ LMK16UU
72 S3033A 2 SPROCKET ｽﾌﾟﾛｹｯﾄ RS25-13T 1-Type
73 S3034A 6 SPROCKET ｽﾌﾟﾛｹｯﾄ RS25-13T 2-Type
74 H4445A 8 BEARING, MINIATURE ﾍﾞｱﾘﾝｸﾞ ﾐﾆﾁｭｱ LF-1050ZZ
75 H4451A 2 BEARING, MINIATURE ﾍﾞｱﾘﾝｸﾞ ﾐﾆﾁｭｱ LF-1680ZZ
76 H4440A 5 BEARING, MINIATURE ﾍﾞｱﾘﾝｸﾞ ﾐﾆﾁｭｱ L-1910ZZ
78 S1022A 4 CIR-CLIP ｻｰｸﾘｯﾌﾟ ST-EW-4
CP-65 PARTS LIST ver09
4 - 3
4.アウトコンベア(YQC)
4.Out conveyor(YQC)
