Proprietary and Confidential Information Dual Lanes Stand ar d 30” Module - - • Standa r d Rails • Max / Min Boar d = 14 .75” / 1.75” • Special Or de r Siamese Center Ra ils • Max / Min Boar d = 17 .62” / 3.00” - - 8.25”…
Proprietary and Confidential Information
Dual Lanes
--

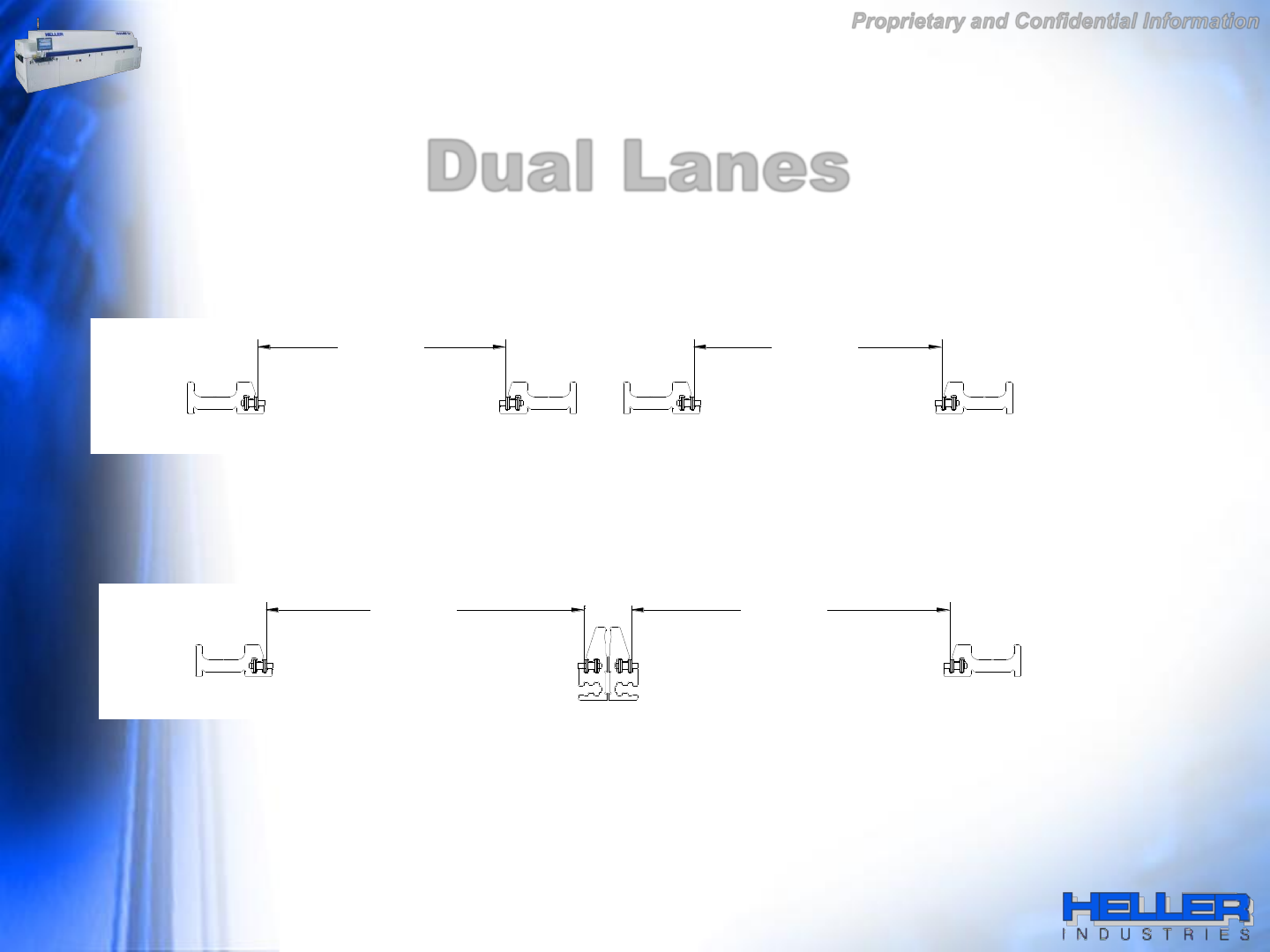

•Standard Rails ; Max / Min Board = 10.75” / 1.75”
•18” Total Heat ; Center Rails Dist = 5.5”
•Special Order Siamese Center Rails
•Max / Min Board = 13.62” / 3.00” ; Center Rails
Dist = 1.38”
--
Standard 26” Module
8.31” 8.31”
6.25” 6.25”
Proprietary and Confidential Information
Dual Lanes

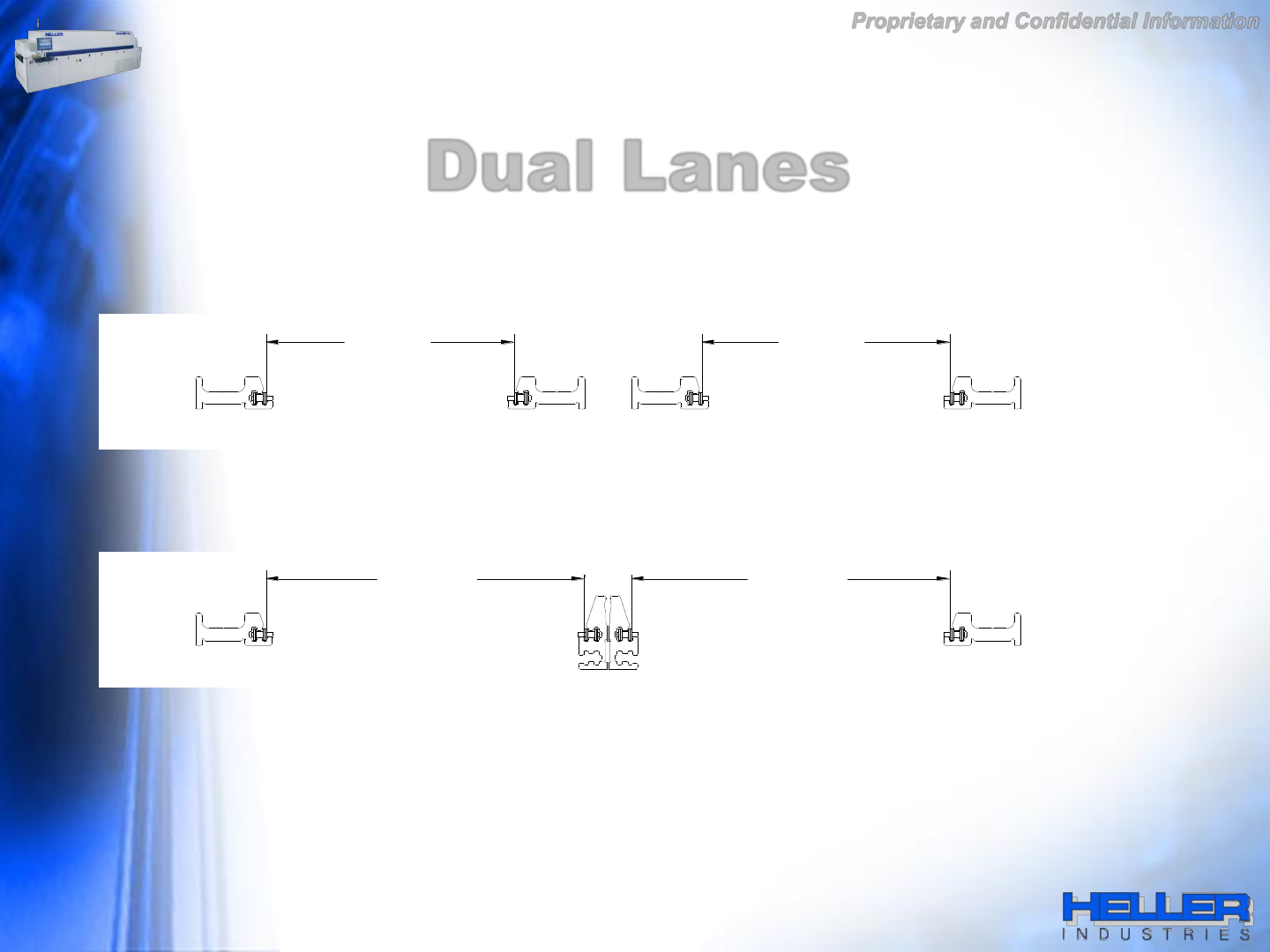

Standard 30” Module
--
•Standard Rails
•Max / Min Board = 14.75” /
1.75”
•Special Order Siamese
Center Rails
•Max / Min Board = 17.62” /
3.00”
--
8.25” 8.25”
10.31” 10.31”
Proprietary and Confidential Information
