Na chrüstanleitung Digitales Druckluftregelventil und neuer Luftfilter Twinhead
Ausgabe 08/2008
18
1
1
1
1
1
Retrofit instructions Digital pressure regulation valve and new air filter Twinhead
08/2008 Edition
19
2 Retrofit instructions
Digital Pressure regulation valve and
new air filter Twinhead
SIPLACE HF-series / X-series / D3
2.1 Reason for retrofit
To further improve the quality and user-friendliness of the Twinhead placement head, the "Digital
pressure regulation valve, Twinhead 03058802-01" with a new "Air filter unit comp. 03051420-01"
has been introduced. 2
This replaces the old analog "Vacuum regulation system 0
3002566S01“ and the old "Air filter unit
comp. 03013061S01". 2
In the past, one of the Twinhead modules had to be
removed in order to perform maintenance to
the air filter. After the upgrade, the air filters at both modules are accessible without removal. 2
2.2 Necessary tools
– Set of Allen keys
– Set of screwdrivers
2
Retrofit instructions Digital pressure regulation valve and new air filter Twinhead
08/2008 Edition
20

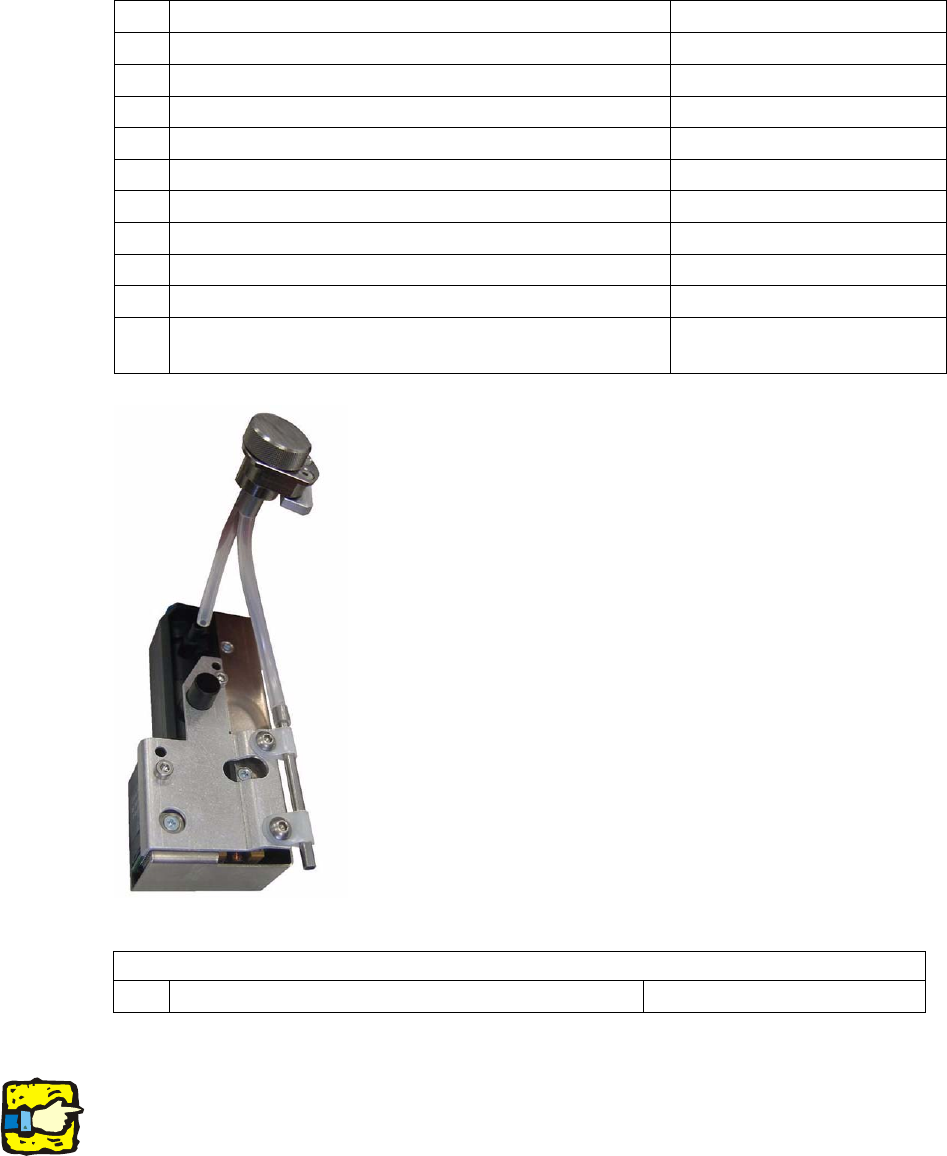

2.3 Required parts
1
Retrofit kits (preassembled) Item no: 03071759-01
1 Air filter, complete
Item no: 03051420-01
1 Silicon hose 4.5x2.5x60
Item no: 03053642-01
1 Silicon hose 4.5x2.5x96
Item no: 03046416-01
1 Dig. pressure reg. valve Twinhead
Item no: 03058802-01
1 Mounting bracket
Item no: 03041233-02
1 Precision tube 4x0.5x56
Item no: 03052632-01
2 Clamp d=5 H2P
Item no: 03052551-01
2 DIN EN ISO 7380-M4 x 6-A2
Item no: 00319283-01
2 DIN912-M3 x 6-A2-70
Item no: 00201463-01
1
Retrofit instructions Digital pressure regulation valve and
new air filter Twinhead SIPLACE X-series
Item no: 00196286-xx
Optional (not included in the retrofit kit)
1
Main head board for P+P head
Item no: 00352833-09
2
2
2
2
The board does not form part of the retrofit kit and must be ordered separately if required.
If you want to replace the main head board, please note th
e instructions in chapter 2.5 "Prerequi-
sites for the conduct of this retrofit"
, the note at "Final works" and the corresponding Service Man-
ual. 2
