Retrofit instructions Digital pressure regulation valve and new air filter Twinhead
08/2008 Edition
28

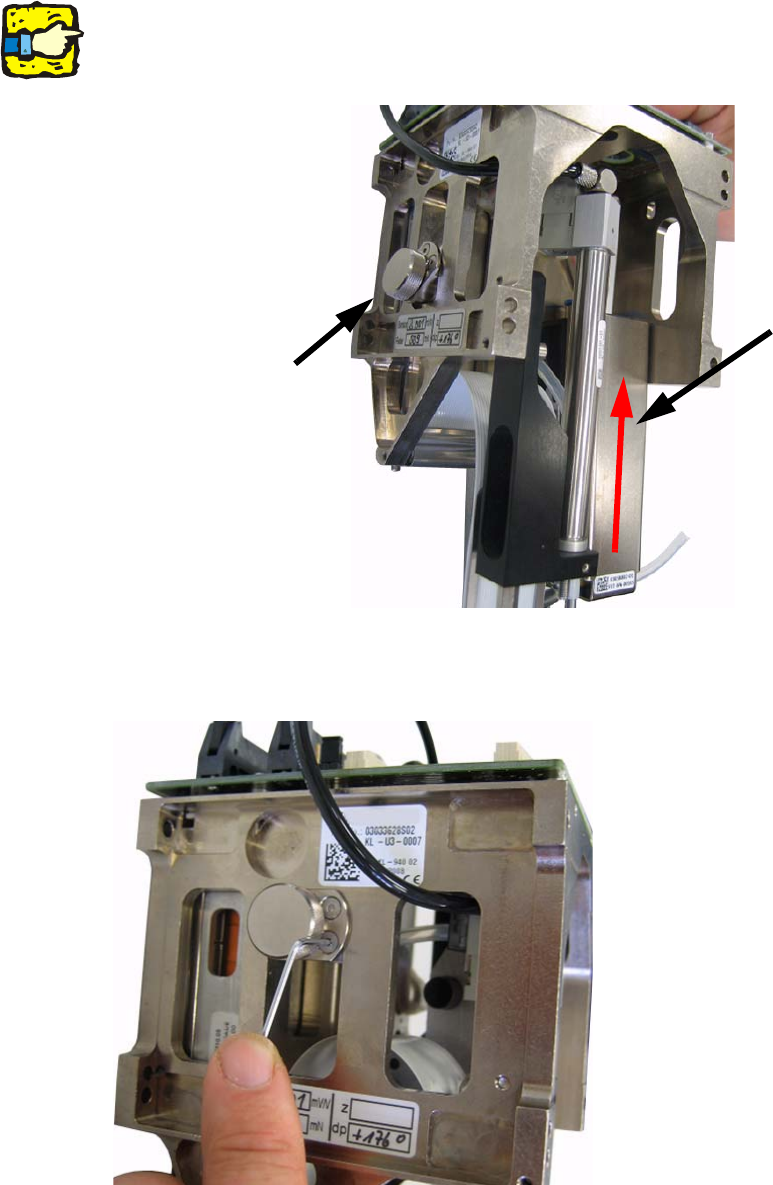

: Insert the new air filter in the head at the same time as the digital pressure regulating valve.
2
Guide the hoses along the back of the return unit and make sure you do not invert them! 2
Guide the air filter
through the central
aperture on the indi-
cated side (side la-
beled "DP zero
point") 2
Push the pressure
regulating valve to-
ward the main head
board and then in-
sert it carefully in the
board. 2
2
2
: Push the complete filter up to the stop in the direction of the main head plate and tighten the
two screws for the mechanical clamping.
2
The filter is now fastened to the head housing. 2
Retrofit instructions Digital pressure regulation valve and new air filter Twinhead
08/2008 Edition
29

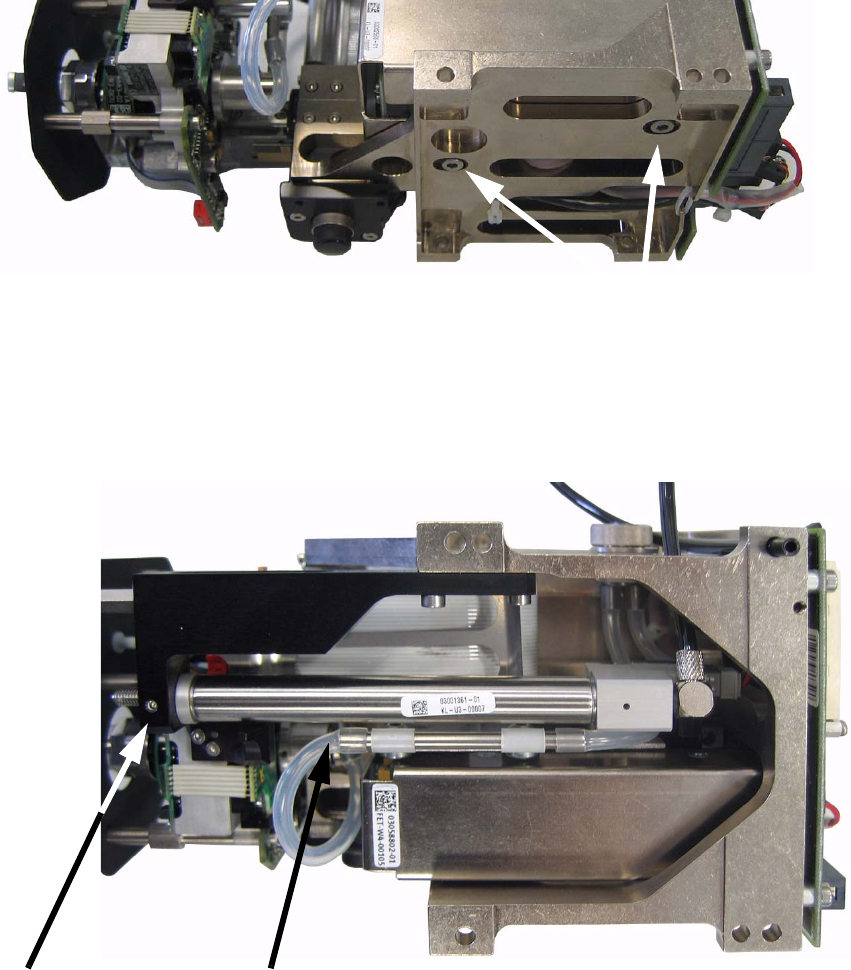

: Fasten the digital pressure regulating valve using the two securing screws (see left picture at
page 50).
Securing screws 2
2
2
: Rotate the return unit to its starting position and fix it in position.
Insert the hose on the precision tube.
Insert hose 2
Return unit fixing 2
2
2
2
2
Retrofit instructions Digital pressure regulation valve and new air filter Twinhead
08/2008 Edition
30

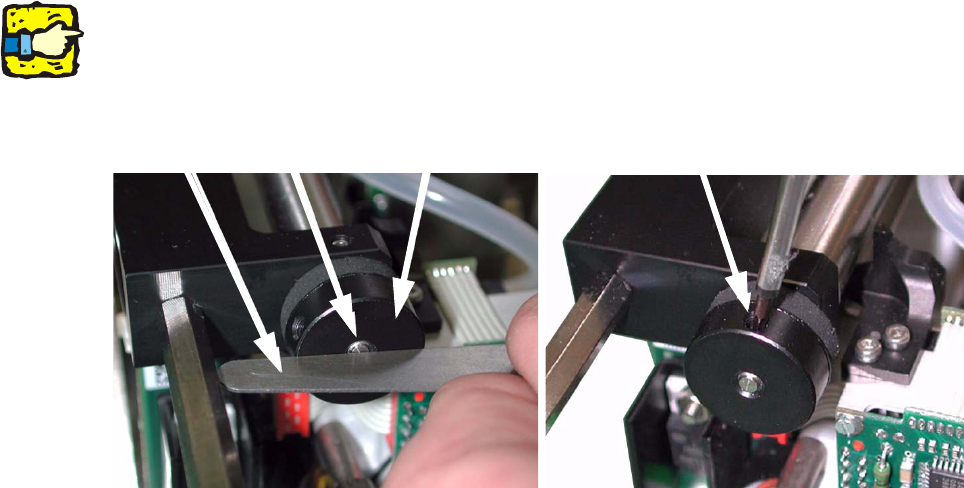

: Screw the buffer back onto the return unit shaft and fix the unit..
2
The lower side of the buffer must be flush with the screw. (Check with feeler gauge). 2
Feeler
Screw 2
Buffer 2
