Retrofit instructions Digital pressure regulation valve and new air filter Twinhead
08/2008 Edition
23
2.6 Removal of analog vacuum regulator with old air
filter unit (additional volume)
2
2

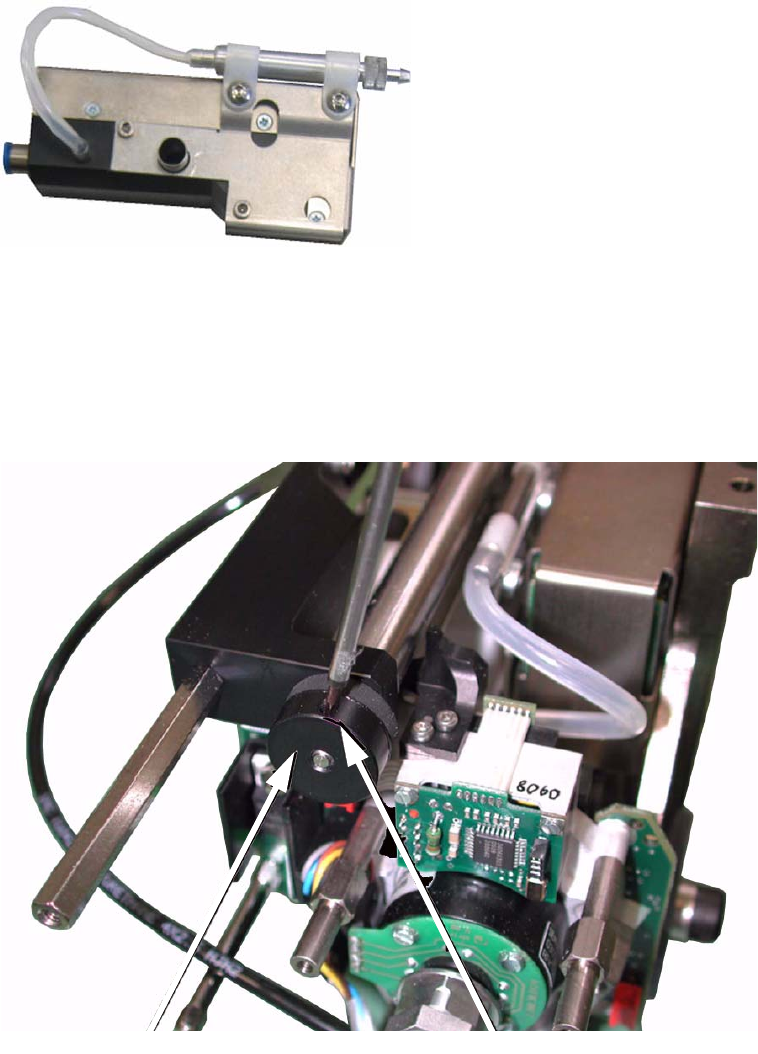

: Remove the segment to retrofit of the Twinhead.
: Remove the buffer at the return unit.
: Loosen the setscrew and unscrew the buffer from the return unit.
Buffer 2
Setscrew 2
2
Retrofit instructions Digital pressure regulation valve and new air filter Twinhead
08/2008 Edition
24

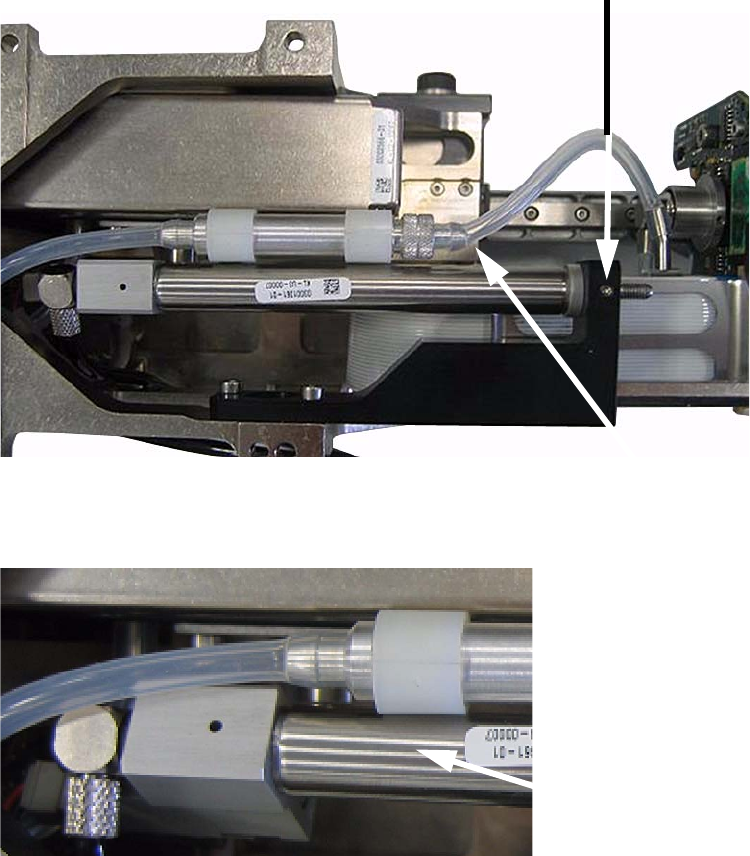

: Loosen the return unit and turn this as indicated in the figure.
Later, this will make it easier to remove the vacuum unit and piping.
Here, you remove the hose
from the old air filter unit 2
Slightly rotate the
return unit 2
Loosen this setscrew 2
2
2
2
2
2
2
2
Retrofit instructions Digital pressure regulation valve and new air filter Twinhead
08/2008 Edition
25

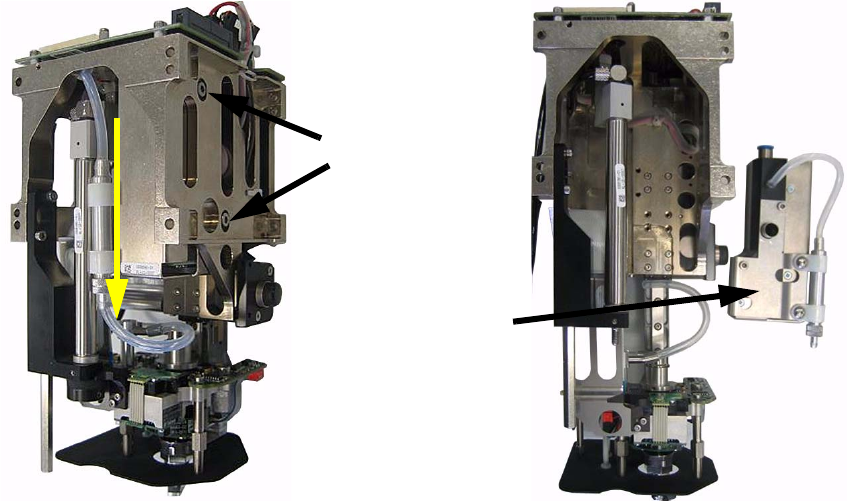

: Loosen the securing screws and remove the vacuum regulation system.
Carefully withdraw the vacuum regulator from the man head board and remove it fully from the
head
Loosen screws 2
Vacuum regulator 2
2
2
The removal operation is now completed. 2
