3-21 Parts Location 5OM-1751 1305-002 Side Panel (Center) 4 4 K33A K33B R04F R04B Symbol Name Remarks K33A EM-CONT ACTOR K33B EM-CONT ACTOR R04F RESISTOR_SPECIAL X1 (Front) Axis Motor Regenerative Resistor R04B RESISTOR_…
3-20
Parts Location
5OM-1751
1305-002

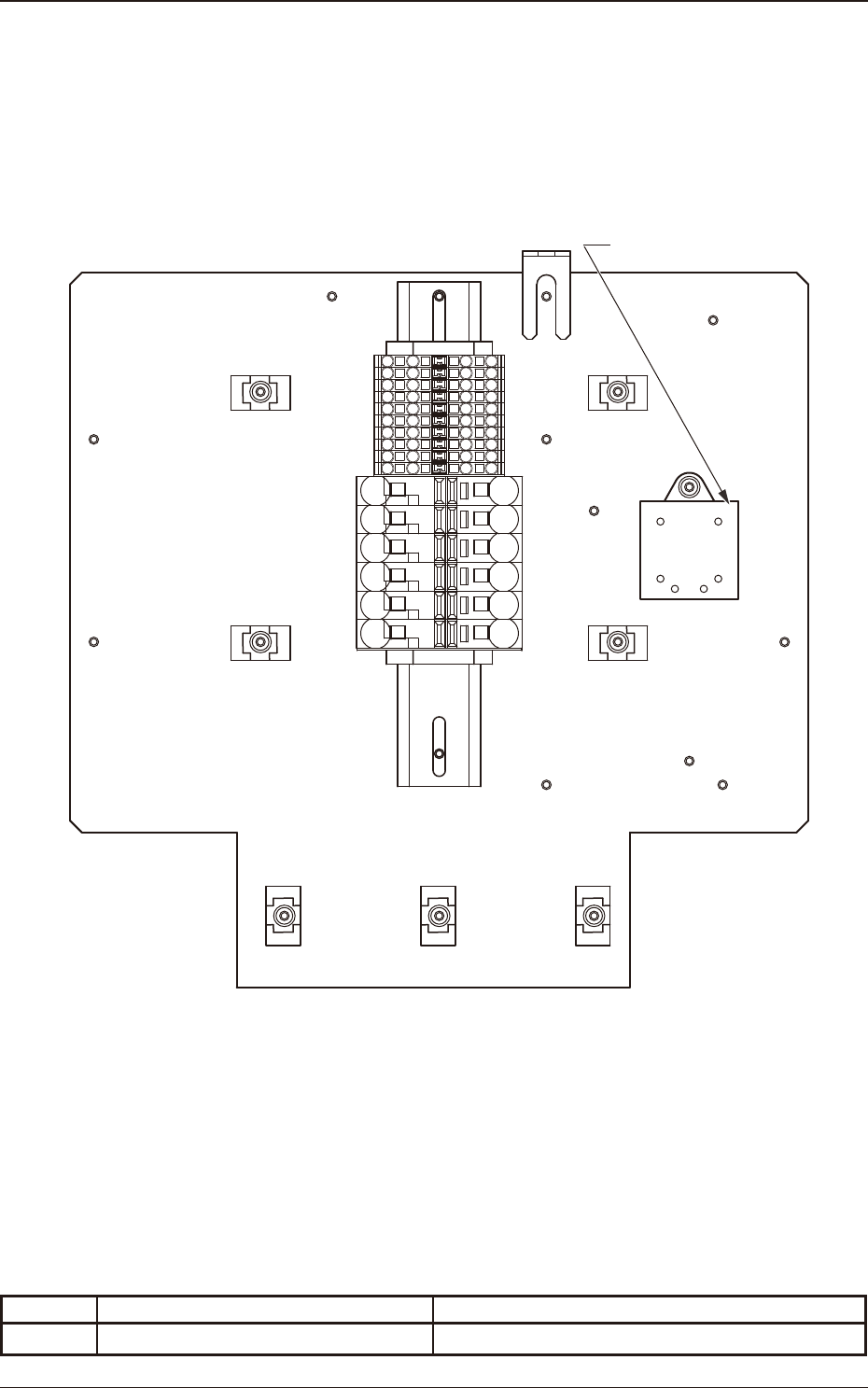

Side Panel Front (Outside)
TB : AC1
F200
Symbol Name Remarks
F200 Lightning Surge Protecter
3-21
Parts Location
5OM-1751
1305-002
Side Panel (Center)
4 4
K33A
K33B
R04F R04B
Symbol Name Remarks
K33A EM-CONTACTOR
K33B EM-CONTACTOR
R04F RESISTOR_SPECIAL X1 (Front) Axis Motor Regenerative Resistor
R04B RESISTOR_SPECIAL X1 (Rear) Axis Motor Regenerative Resistor
3-22
Parts Location
5OM-1751
1305-002
Side Panel (Rear)
K1B
K75 K77
K4 K3
F2(6.3A)
F7(6.3A)
Symbol Name Remarks
K3
Safety Relay (Emergency Stop Switch)
K4
Block #1 Feeder Power ON Relay
K75 Block #1 Feeder Power ON Relay
K77 Block #2 Feeder Power ON Relay
K1B POWER ON Relay
