4-41 5OM-1751 Axis Axis Axis Multi Functional Head Circuit Diagram 1

100%1 / 190
4-40
5OM-1751
Multi-Functional Head Nozzle 1 Side
G5S Main Body Platform
Vacuum Valve Vacuum break
(Blow valve)
Height check Height check
Light emitting side
Multi-Functional Head Nozzle 2 Side
Light receiving side
Out of limitVacuum Valve Vacuum break
(Blow valve)
Height check Height check
Light emitting sideLight receiving side
Out of limit
Multi Functional Head Block Diagram
4-41
5OM-1751
Axis
Axis
Axis

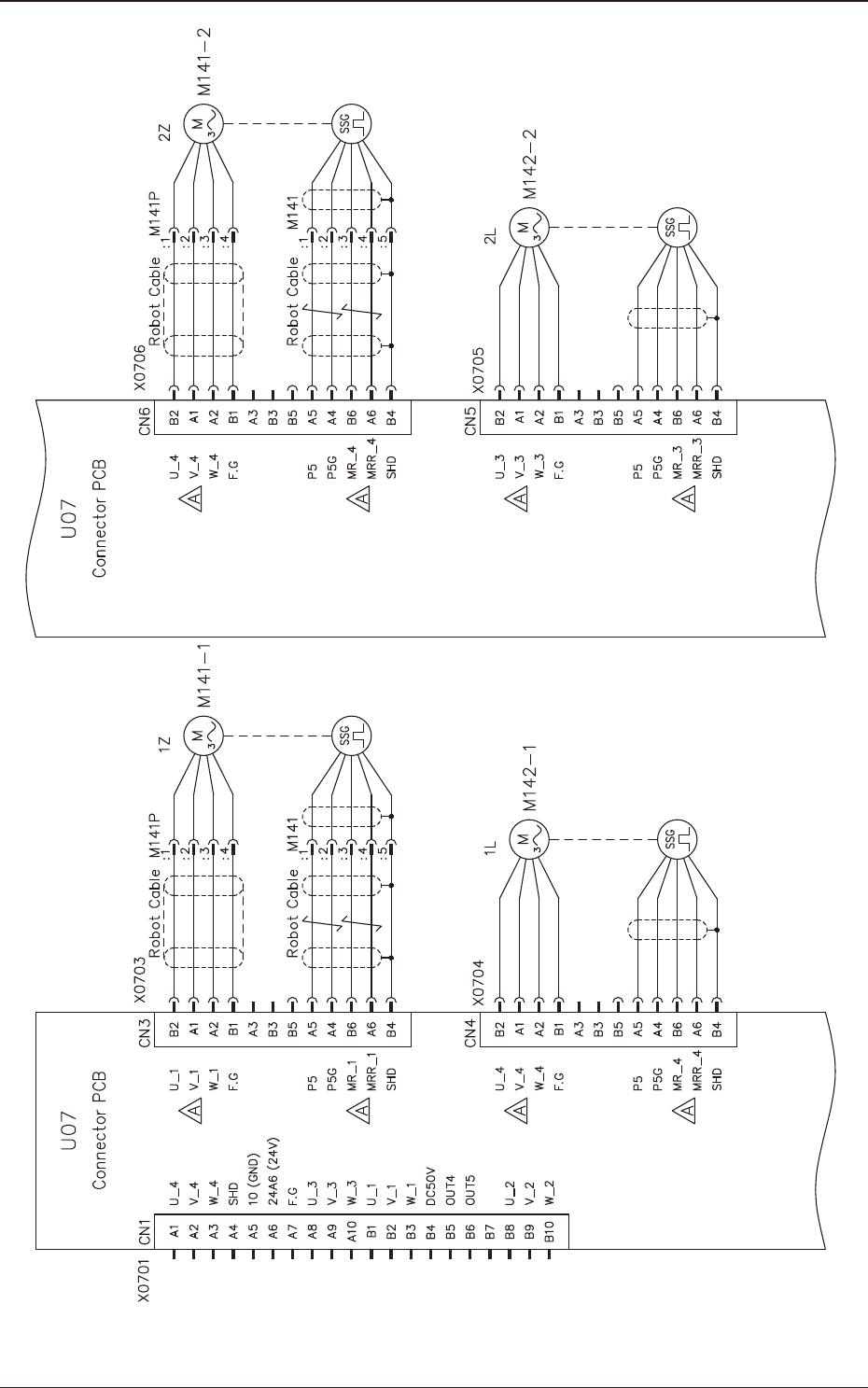

Multi Functional Head Circuit Diagram 1
4-42
5OM-1751

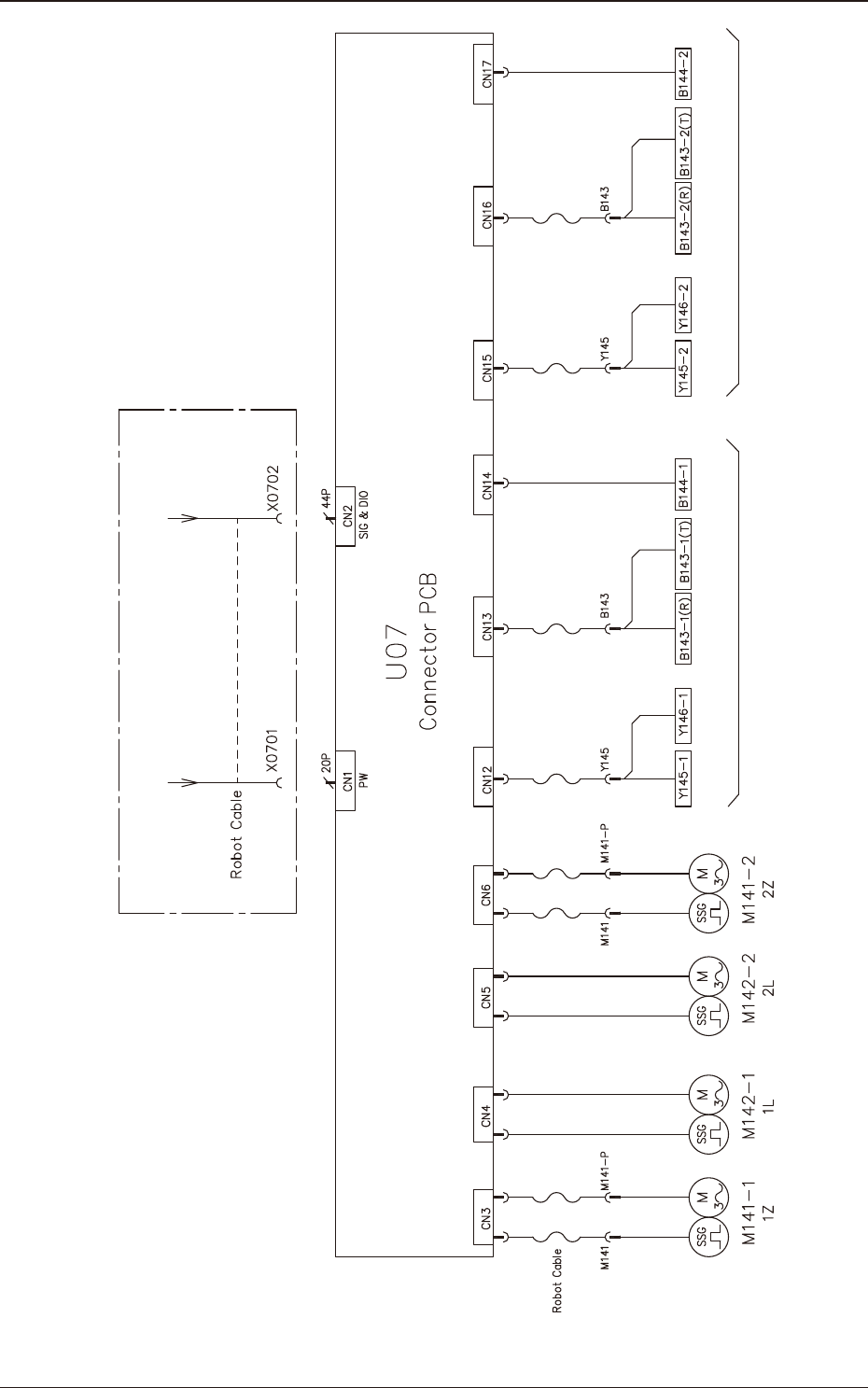

Multi Functional Head Circuit Diagram 2
Multi-Functional Head
Nozzle 1 Side
Vacuum Valve
Vacuum break
(Blow valve)
Height check
Height check
Light emitting side
Light receiving side
Vacuum Valve
Vacuum break
(Blow valve)
Height check
Height check
Light emitting side
Light receiving side
Out of limit sensor
Out of limit sensor
HEAD Connection check
Not used
Not used
GS-HM600 Connection check
U07 Board SW1 Setting
1L Axis
2L Axis
Multi-Functional Head
Nozzle 2 Side
