3-22 Parts Location 5OM-1751 1305-002 Side Panel (Rear) K1B K75 K77 K4 K3 F2(6.3A) F7(6.3A) Symbol Name Remarks K3 Safety Relay (Emergency Stop Switch) K4 Block #1 Feeder Power ON Relay K75 Block #1 Feeder Power ON Relay…
3-21
Parts Location
5OM-1751
1305-002

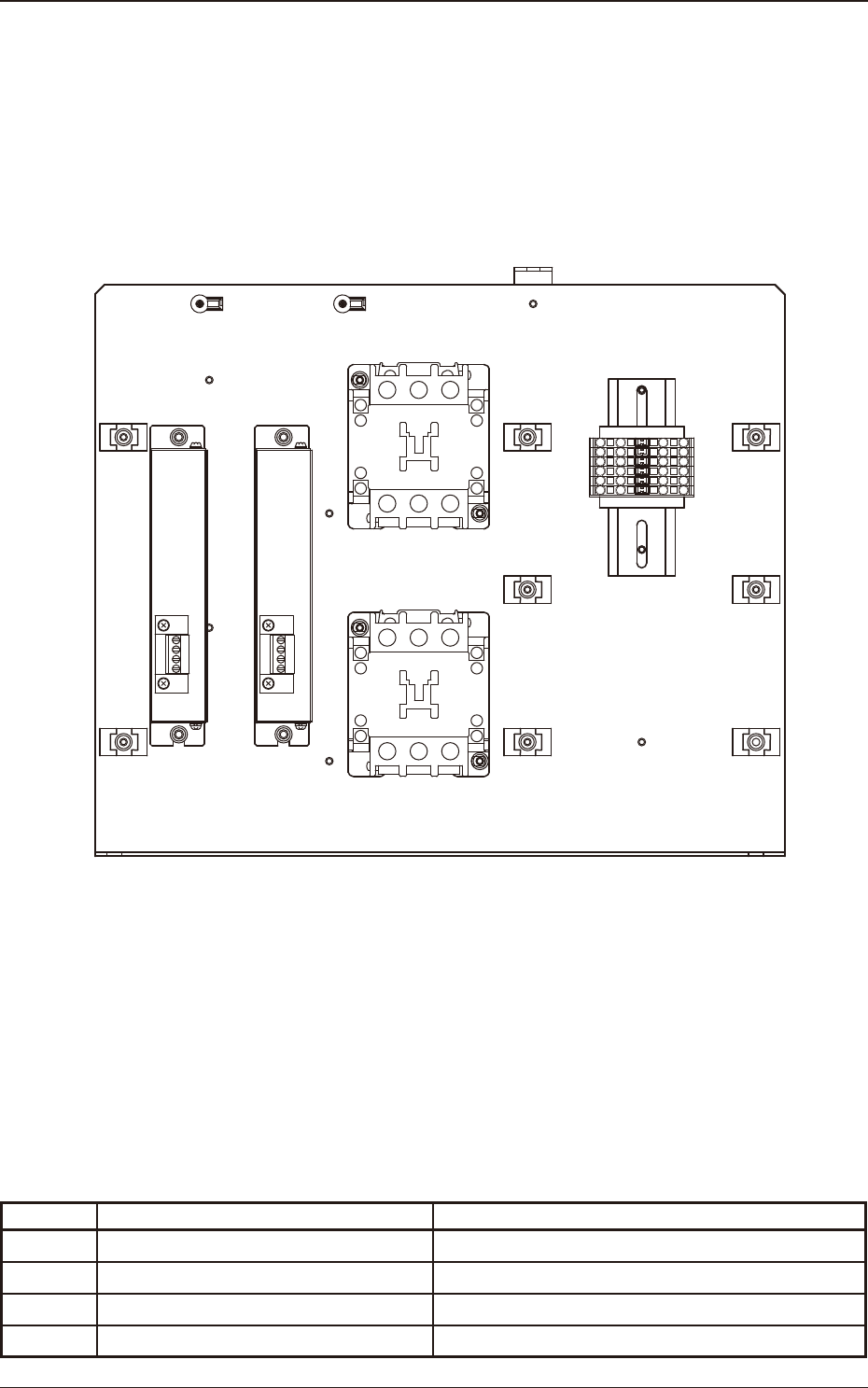

Side Panel (Center)
4 4
K33A
K33B
R04F R04B
Symbol Name Remarks
K33A EM-CONTACTOR
K33B EM-CONTACTOR
R04F RESISTOR_SPECIAL X1 (Front) Axis Motor Regenerative Resistor
R04B RESISTOR_SPECIAL X1 (Rear) Axis Motor Regenerative Resistor
3-22
Parts Location
5OM-1751
1305-002

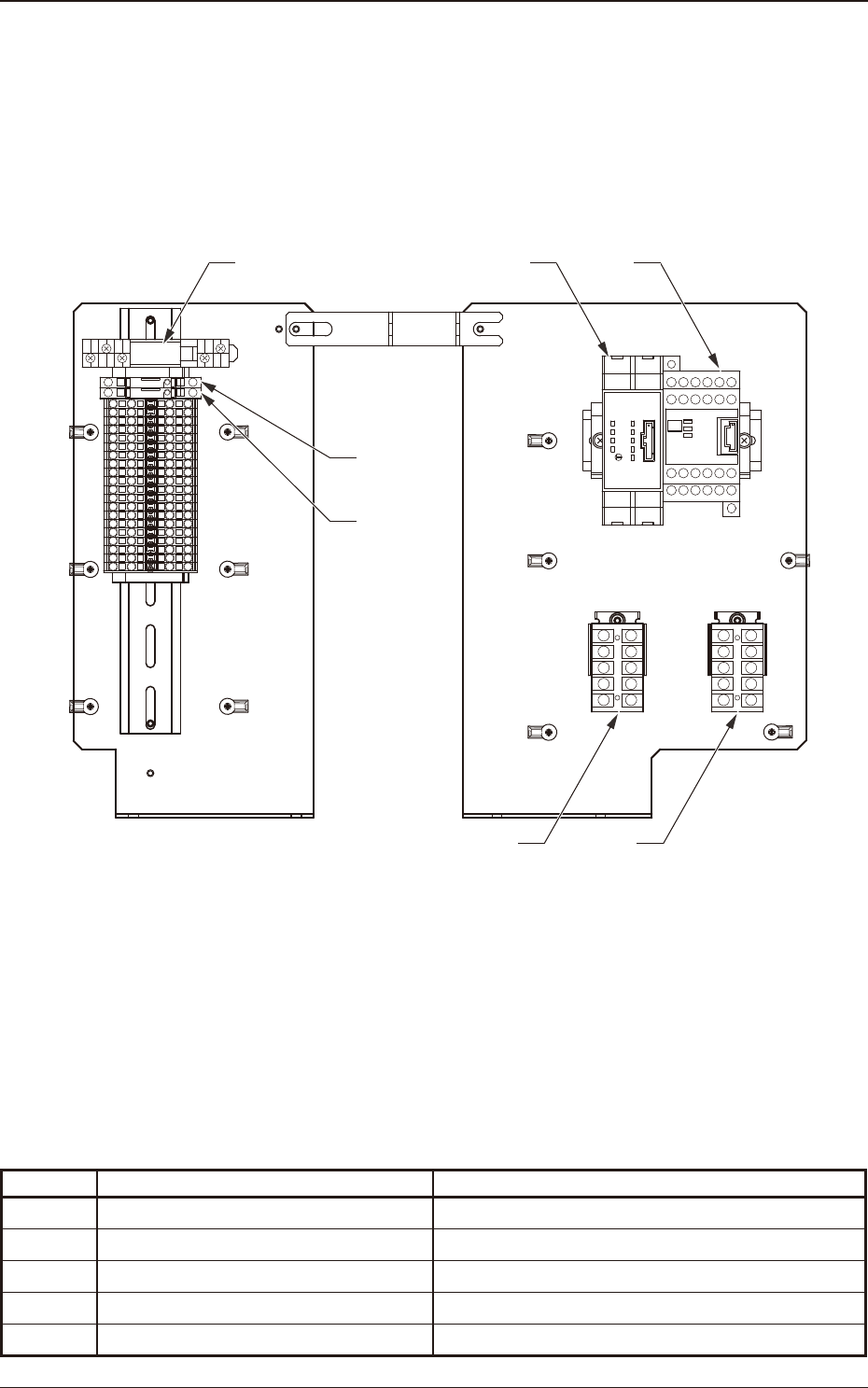

Side Panel (Rear)
K1B
K75 K77
K4 K3
F2(6.3A)
F7(6.3A)
Symbol Name Remarks
K3
Safety Relay (Emergency Stop Switch)
K4
Block #1 Feeder Power ON Relay
K75 Block #1 Feeder Power ON Relay
K77 Block #2 Feeder Power ON Relay
K1B POWER ON Relay
5OM-1751
1304-001 4-A
Chapter 4
Circuit Diagrams
This chapter describes the circuit diagrams.
As this contains highly sophisticated contents, it should carefully be
referred to.
