SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD.
MDOC-SOFT50044
1/23
StickpartssupportofSetupVerification
StickpartssupportofSetupVerificationStickpartssupportofSetupVerification
StickpartssupportofSetupVerification
Contents
Stick parts support of Setup Verification........................................................................................ 1
1. Introduction................................................................................................................................ 2
2. Function（VGOS V3.x） .............................................................................................................. 2
2.1. Summary（VGOS V3.x） ...................................................................................................... 2
2.2. Setting（VGOS V3.x） .......................................................................................................... 3
2.3. Setup Work on Machine（VGOS V3.x） ............................................................................... 5
2.3.1. Setting Multi Stick Parts ............................................................................................... 5
2.3.2. Setting Other Multi Stick Parts ..................................................................................... 9
2.4. Replacing/Refilling Parts on the Machine（VGOS V3.x） .................................................. 11
2.4.1. Refilling Stick Parts .................................................................................................... 11
3. Function（VGOS V1.x/V2.x） .................................................................................................... 13
3.1. Summary（VGOS V1.x/V2.x） ............................................................................................ 13
3.2. Setting（VGOS V1.x/V2.x） ................................................................................................ 13
3.3. Setup Work on Machine（VGOS V1.x/V2.x）..................................................................... 14
3.3.1. Setting Multi Stick Parts ............................................................................................. 14
3.3.2. Setting Other Multi Stick Parts ................................................................................... 18
3.4. Replacing/Refilling Parts on the Machine（VGOS V1.x/V2.x） .......................................... 20
3.4.1. Refilling Stick Parts .................................................................................................... 20
4. Notice ...................................................................................................................................... 23
SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD.
MDOC-SOFT50044
2/23
1. Introduction
The target model and version are as follows.
Table 1.1 The target model sand version
Target Model Target Version Remarks
IT System Server V1.10STD R1.000 or later
YS Series Mounter,
YG12 Series Mounter, YG300
V3.10STD R1.000 or later
YG Series Mounter V2.22STD R1.000 or later
Xg Series Mounter V1.17STD R1.000 or later
2. Function（
（（
（VGOS V3.x）
））
）
2.1. Summary（
（（
（VGOS V3.x）
））
）
This section explain how to check the setup of the stick parts by IT Option “Setup Verificaion
(Mounter Inline Setup)”.
SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD.
MDOC-SOFT50044
3/23
2.2. Setting（
（（
（VGOS V3.x）
））
）

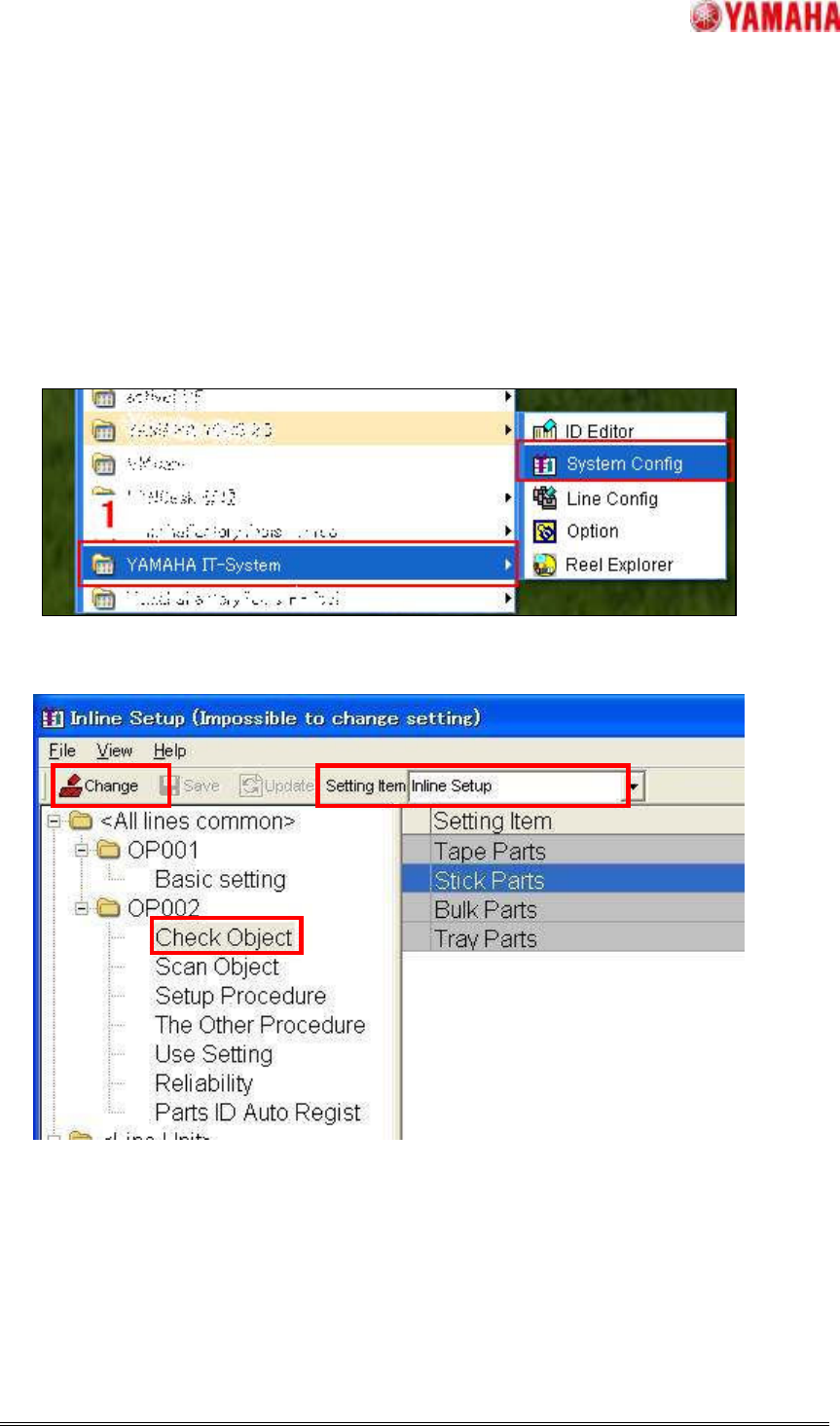

The following procedures make the stick parts into the check target.
Step1. On a PC containing the YAMAHA IT-System,
1. Select [Start]-[ Program]-[YAMAHA IT-System]-[System Config]
2. Select [Inline Setup] on [Setting Item] tool bar in the window of System Config.
3. Select [OP002]-[Check Object] contained in the folder of <Line Unit> which has the target
machine of this setting or <All line common>.
4. Click [Change] button.
４
４４
４
２
２２
２
３
３３
３
