SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD.
MDOC-SOFT50044
11/23
2.4. Replacing/Refilling Parts on the Machine（
（（
（VGOS V3.x）
））
）
2.4.1. Refilling Stick Parts
Step1. A warning appears when the number of remaining parts drops below the preset
number.
1. The following [Parts remain warning] dialog box appears and the yellow warning lamp
flashes.
Click the [ERROR CLEAR] button to close the dialog box.
2. The information shown in the [Production] tab page (Monitor window) appears.
In the [Detail] field, the part that caused the warning is displayed in yellow and the part
that has run out is displayed in red.
Prepare the parts to be added.
Step2. Register parts information.
1. Use a barcode reader to read the "SPLICING" barcode given on the "PROCESS
BARCODE" label affixed to the machine.
SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD.
MDOC-SOFT50044
12/23

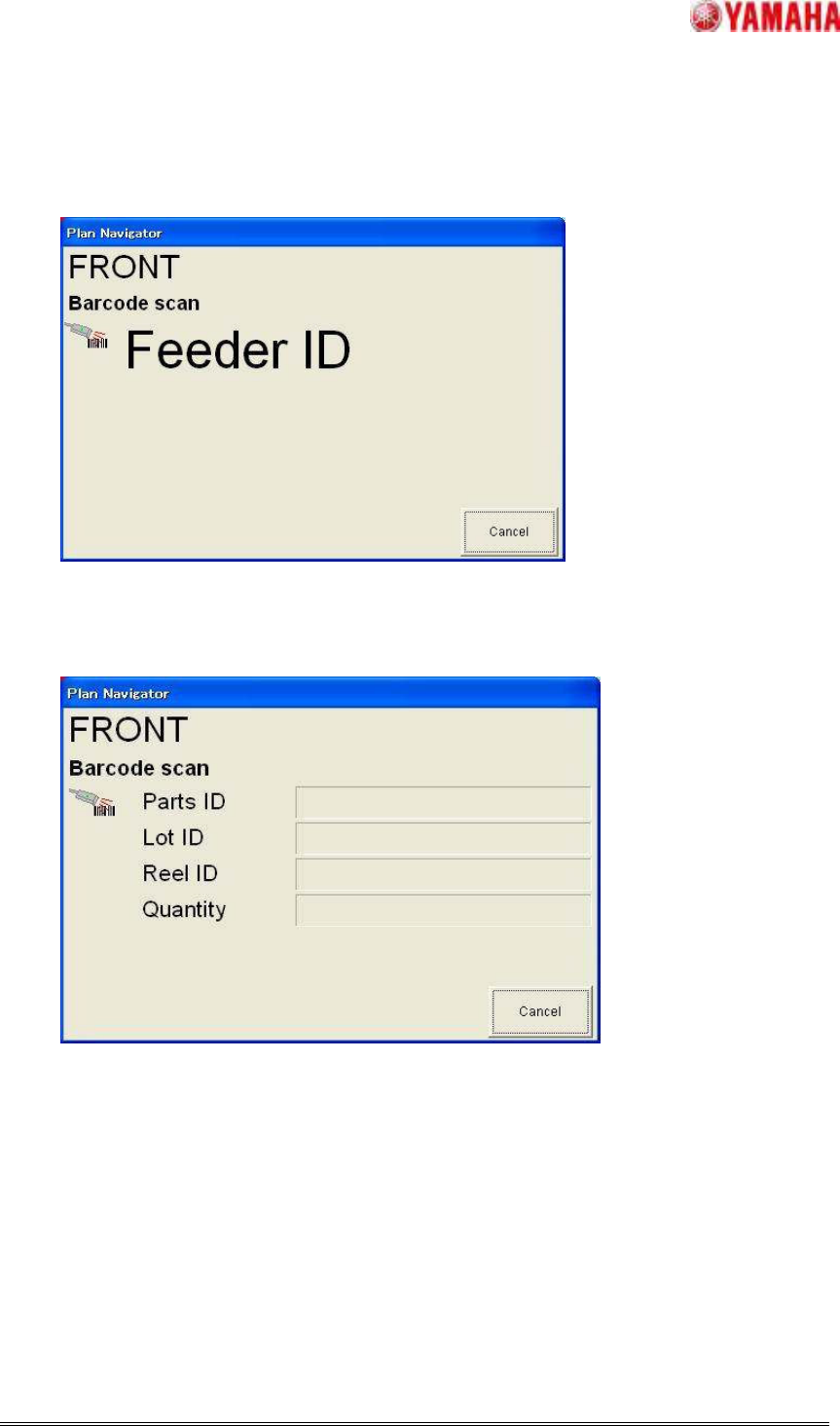

2. The contents of the Plan Navigator will change as shown below.
Use a barcode reader to read the feeder ID shown on the new feeder.
3. The contents of the Plan Navigator will change as shown below.
Use a barcode reader to read the parts barcode on the parts to be refilled.
【Note】The parts ID, lot ID and reel ID can be read in any order.
Step3. Replenish parts.
1. Production will resume.
SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD.
MDOC-SOFT50044
13/23
3. Function（
（（
（VGOS V1.x/V2.x）
））
）
3.1. Summary（
（（
（VGOS V1.x/V2.x）
））
）
This section explain how to check the setup of the stick parts by IT Option “Setup Verificaion
(Mounter Inline Setup)”.
3.2. Setting（
（（
（VGOS V1.x/V2.x）
））
）
For details of how to set Stick parts is made check target, refer to Chapter 4, “Basic Setup Verify
Settings”of the Setup Verification (Machine) USER'S MANUAL.
