SMT Software Engineering Group IM Operations Y AMAHA MOTOR CO., L TD. MD OC-SOFT50044 20/23 3.4. Replacing/Ref i lling Part s on the Machine （ （ （ （ VGOS V1.x/V2.x ） ） ） ） 3.4.1. Refilling Stick Part s S tep1.…
SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD.
MDOC-SOFT50044
19/23

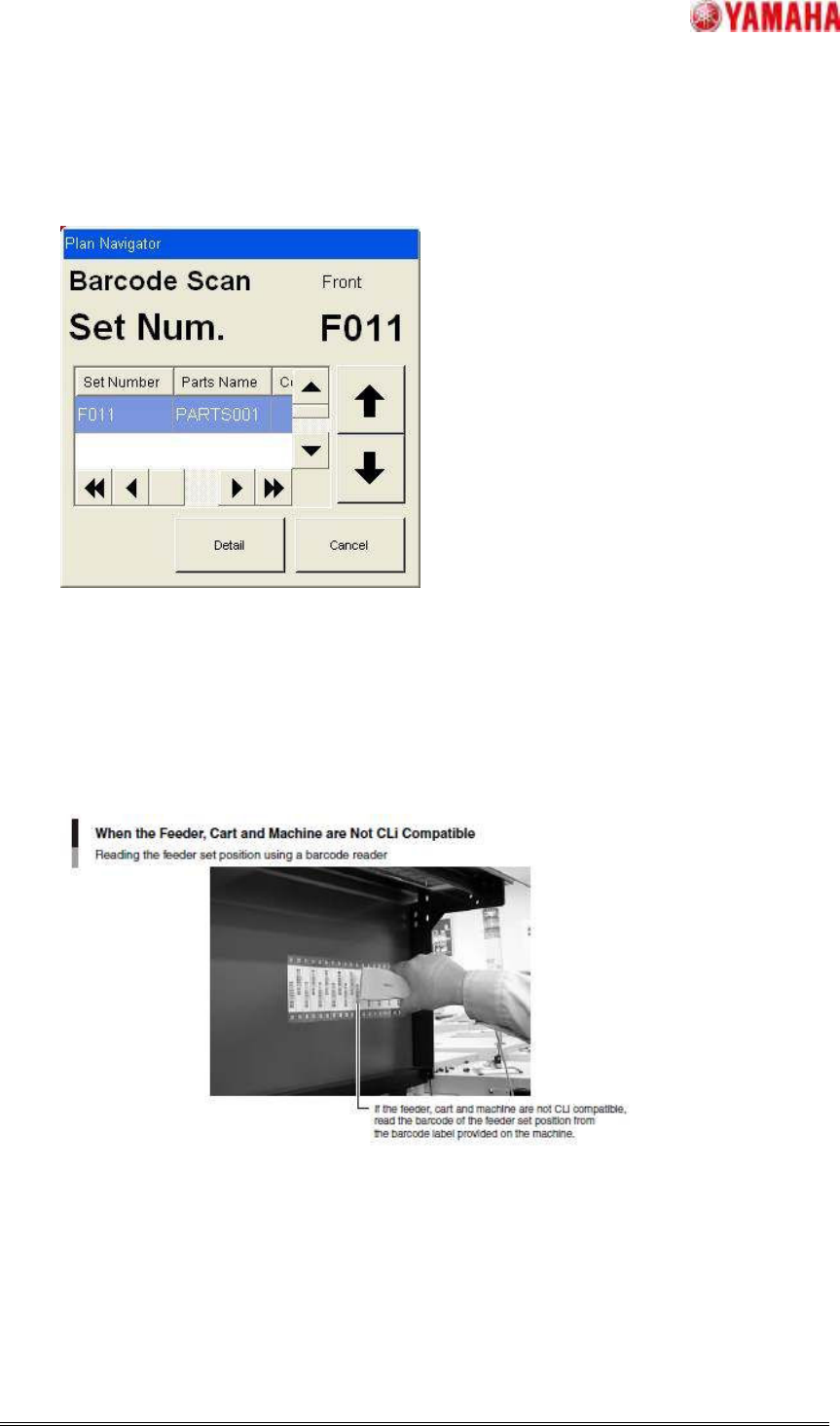

2. The Plan Navigator shows the position in which the feeder is to be set.
So, set the feeder into the specified position on the machine.
If the feeder, cart and machine are CLi compatible, the feeder set position will be
recognized automatically.
If they are not CLi compatible, read the barcode of the position where the new feeder is
set from the feeder set position barcode label provided on the machine.
SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD.
MDOC-SOFT50044
20/23
3.4. Replacing/Refilling Parts on the Machine（
（（
（VGOS V1.x/V2.x）
））
）
3.4.1. Refilling Stick Parts

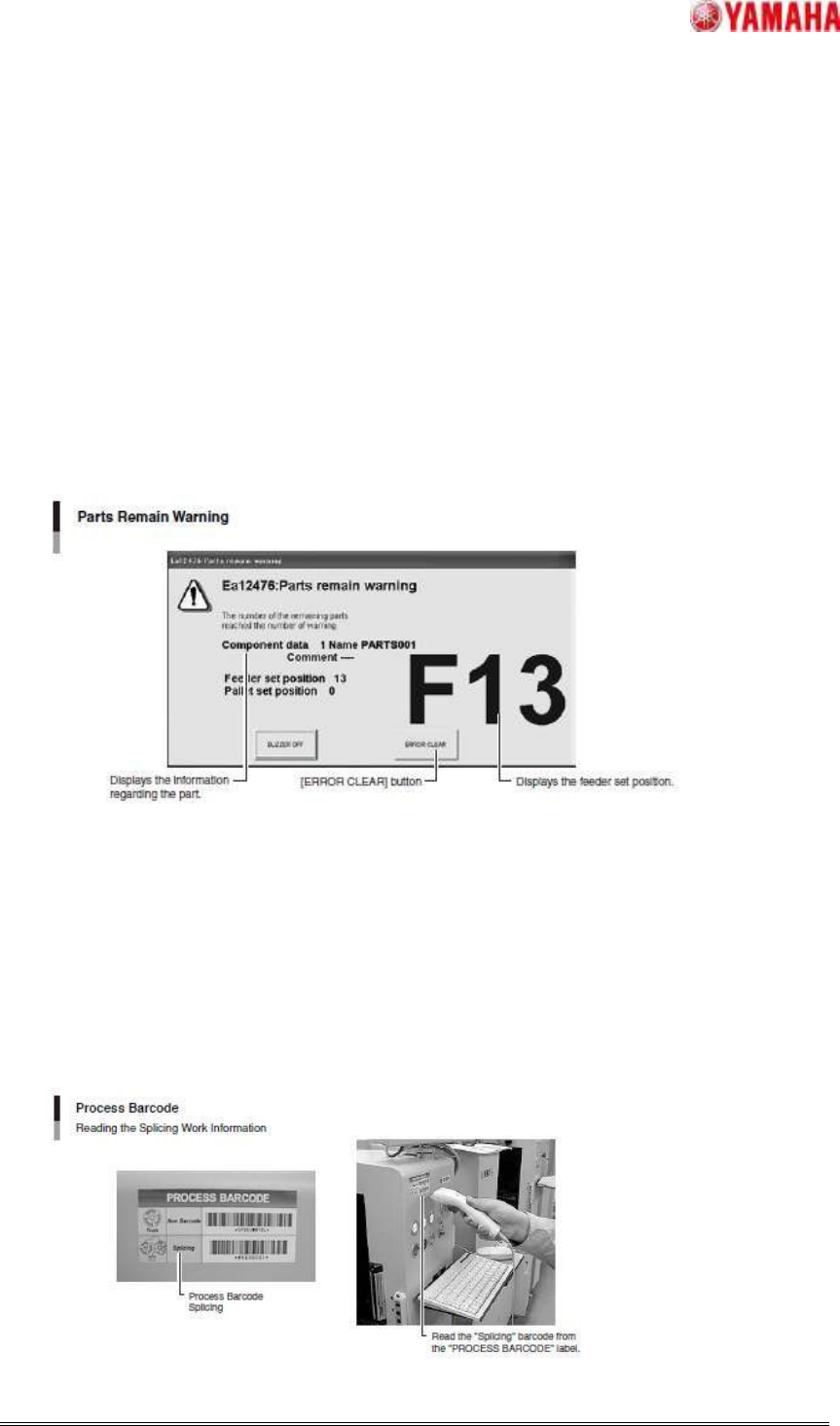

Step1. A warning appears when the number of remaining parts drops below the preset
number.
1. The following [Parts remain warning] dialog box appears and the yellow warning lamp
flashes.
Click the [ERROR CLEAR] button to close the dialog box.
2. The information shown in the [Prepare] tab page (Support window) appears.
The corresponding part in the [Detail] field is highlighted in yellow. Prepare the parts to be
added.
Step2. Register parts information.
1. Use a barcode reader to read the "SPLICING" barcode given on the "PROCESS
BARCODE" label affixed to the machine.
SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD.
MDOC-SOFT50044
21/23
2. The contents of the Plan Navigator will change as shown below.
Use a barcode reader to read the feeder ID shown on the new feeder.
3. The contents of the Plan Navigator will change as shown below.
Use a barcode reader to read the parts barcode on the parts to be refilled.
【Note】The parts ID, lot ID and reel ID can be read in any order.
