SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD.
MDOC-SOFT50044
3/23
2.2. Setting（
（（
（VGOS V3.x）
））
）
The following procedures make the stick parts into the check target.
Step1. On a PC containing the YAMAHA IT-System,
1. Select [Start]-[ Program]-[YAMAHA IT-System]-[System Config]
2. Select [Inline Setup] on [Setting Item] tool bar in the window of System Config.
3. Select [OP002]-[Check Object] contained in the folder of <Line Unit> which has the target
machine of this setting or <All line common>.
4. Click [Change] button.
４
４４
４
２
２２
２
３
３３
３
SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD.
MDOC-SOFT50044
4/23
5. Select [Check required] on [Stick Parts]-[Setting Value] combo box.
6. Click [Save] button and finish.
６
６６
６
５
５５
５
SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD.
MDOC-SOFT50044
5/23
2.3. Setup Work on Machine（
（（
（VGOS V3.x）
））
）
2.3.1. Setting Multi Stick Parts
Step1.Set the parts in a feeder.
1. Click [Monitor] – [Production], check the contents displayed in the Operating Navigation,
and prepare the required parts.
2. Set the parts in a feeder.
Step2. Set the first parts in place.

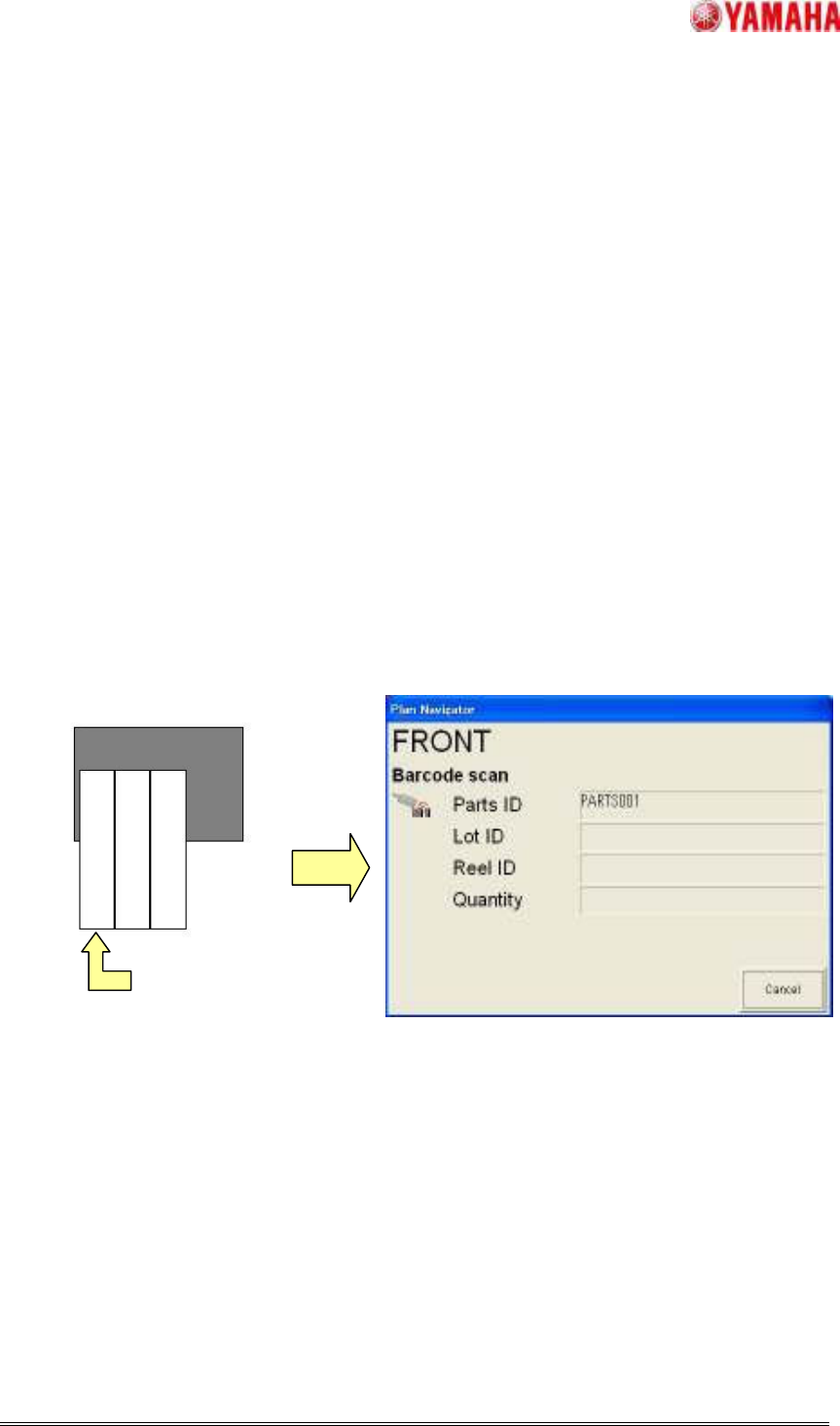

1 Use a barcode reader to read the barcode on the first stick set in the feeder.
When the first barcode is read, the [Plan Navigator] dialog box will appear. So, read the
parts ID, lot ID and reel ID barcodes.
【Note】The parts ID, lot ID and reel ID can be read in any order.
Read the first stick parts
Image that saw Multi Stick Feeder on
PARTS001
PARTS003
PARTS002
