SMT Software Engineering Group IM Operations Y AMAHA MOTOR CO., L TD. MD OC-SOFT50044 22/23 Step3. T he parts to b e refilled is s elected. （ Only when ther e are plural parts which ha ve same parts nam e on o…
SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD.
MDOC-SOFT50044
21/23
2. The contents of the Plan Navigator will change as shown below.
Use a barcode reader to read the feeder ID shown on the new feeder.
3. The contents of the Plan Navigator will change as shown below.
Use a barcode reader to read the parts barcode on the parts to be refilled.
【Note】The parts ID, lot ID and reel ID can be read in any order.
SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD.
MDOC-SOFT50044
22/23
Step3. The parts to be refilled is selected.
（Only when there are plural parts which have same parts name on one feeder.）

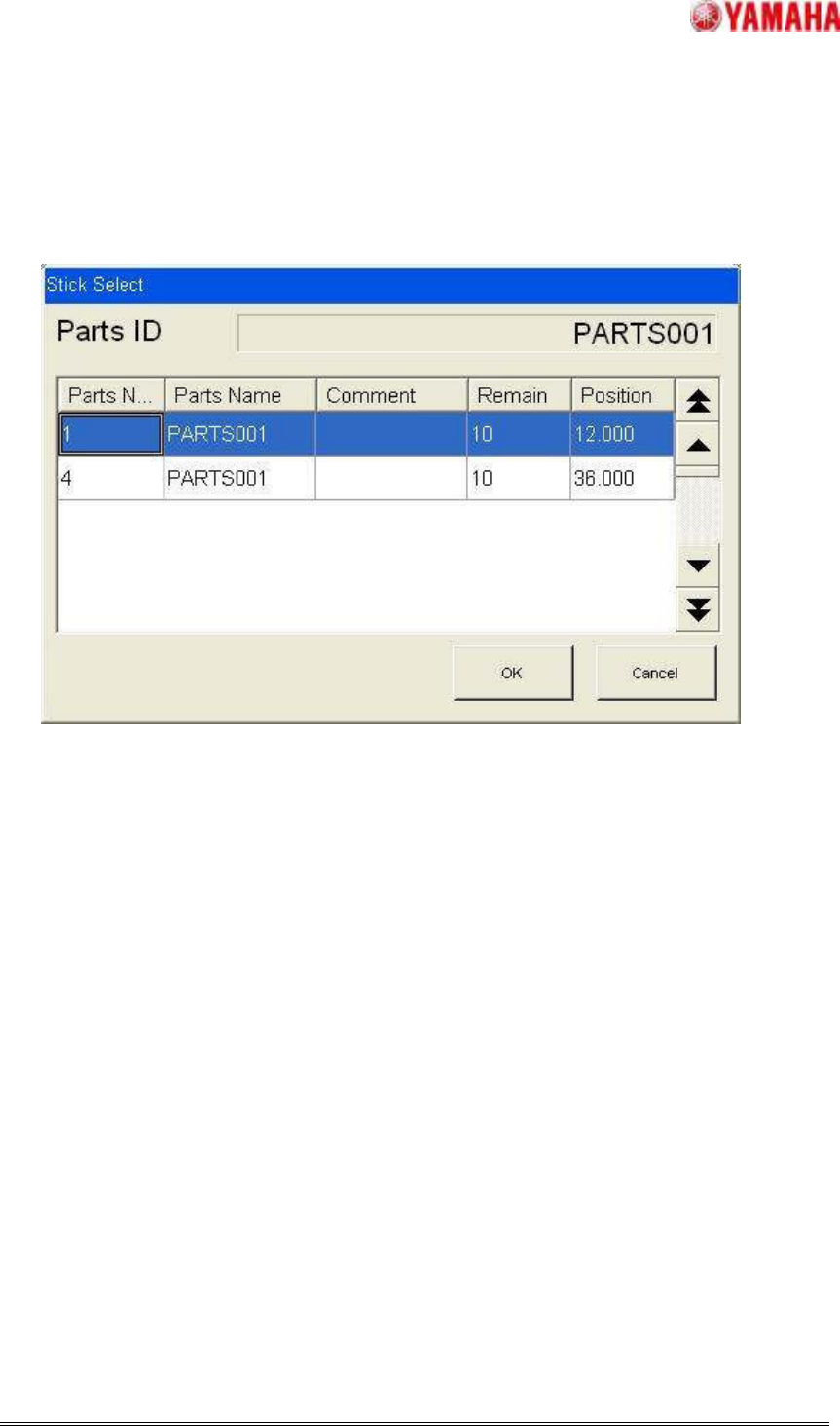

1. Click the refilling target stick parts on the Stick Select dialog, and click [OK] button.
Step4. Replenish parts.
1. Production will resume.
SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD.
MDOC-SOFT50044
23/23
4. Notice
・ After the setting, the setting is reflected after the loading board data of each machine.
Please re-load the board data after the setting.
