SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD.
MDOC-SOFT50044
15/23

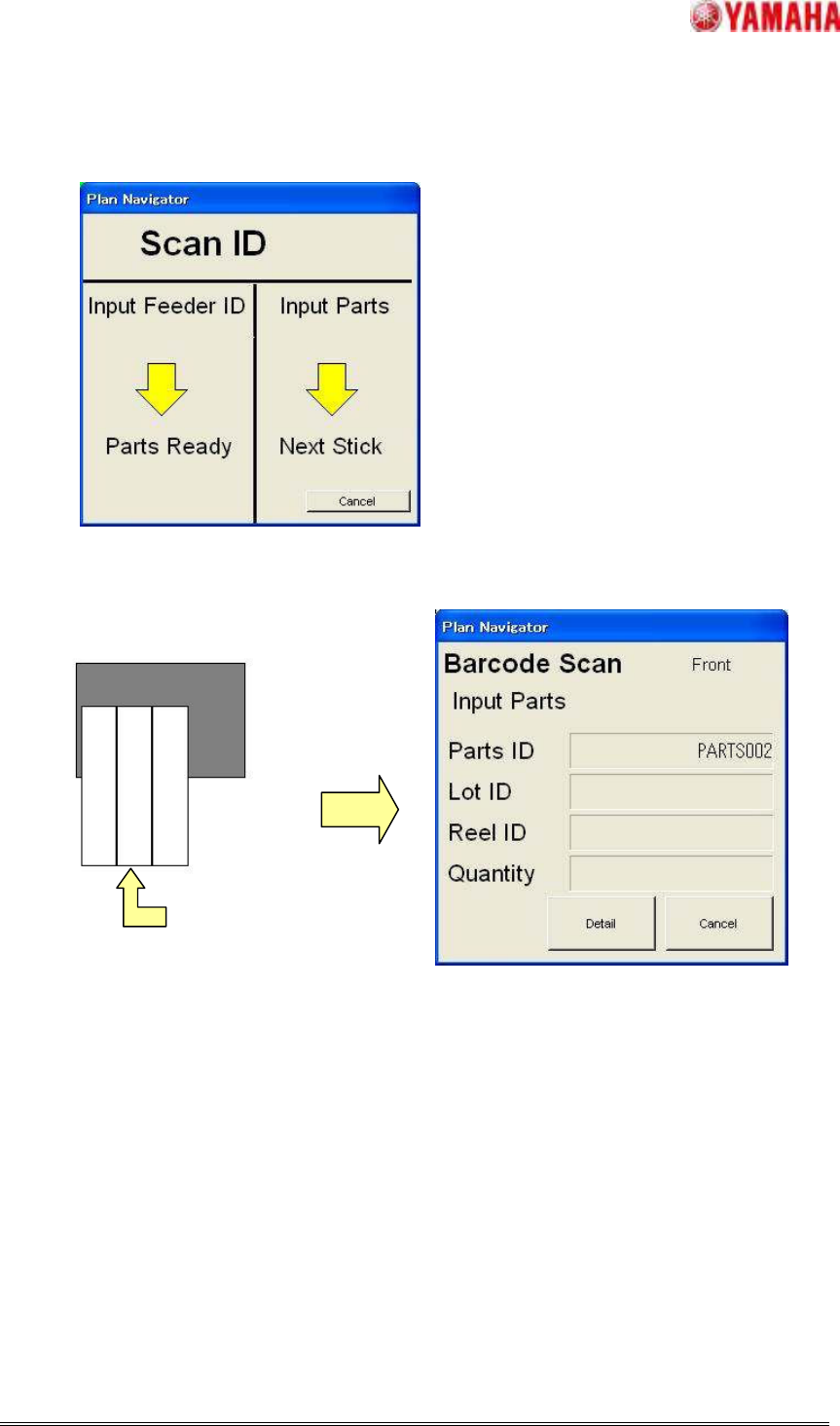

Step3. Set the next parts in place.
1. The contents of the Plan Navigator will change as shown below.
When the plural parts is set in one feeder, continue to read the other parts barcode (Parts
ID, Lot ID, Stick ID) by the barcode reader.
Repeat reading the stick parts barcode until the barcode of all stick parts are read.
Image that saw Multi Stick Feeder on
PARTS001
PARTS003
PARTS002
Read the next stick parts
SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD.
MDOC-SOFT50044
16/23

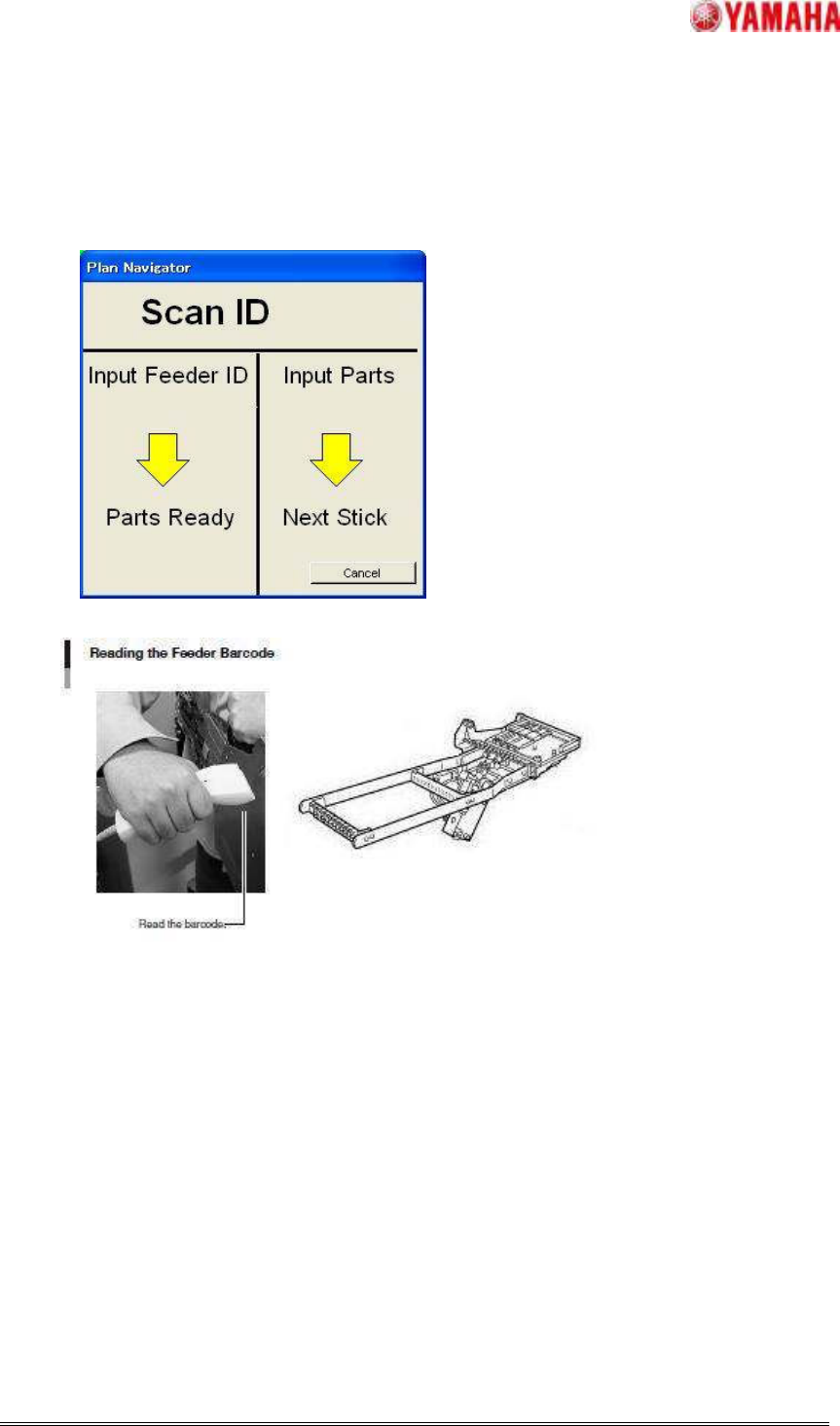

Step4. Set the feeder in place.
1. The contents of the Plan Navigator will change as shown below.
If all the stick parts are read, Use a barcode reader to read the Feeder ID of feeder that
sets stick parts.
SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD.
MDOC-SOFT50044
17/23

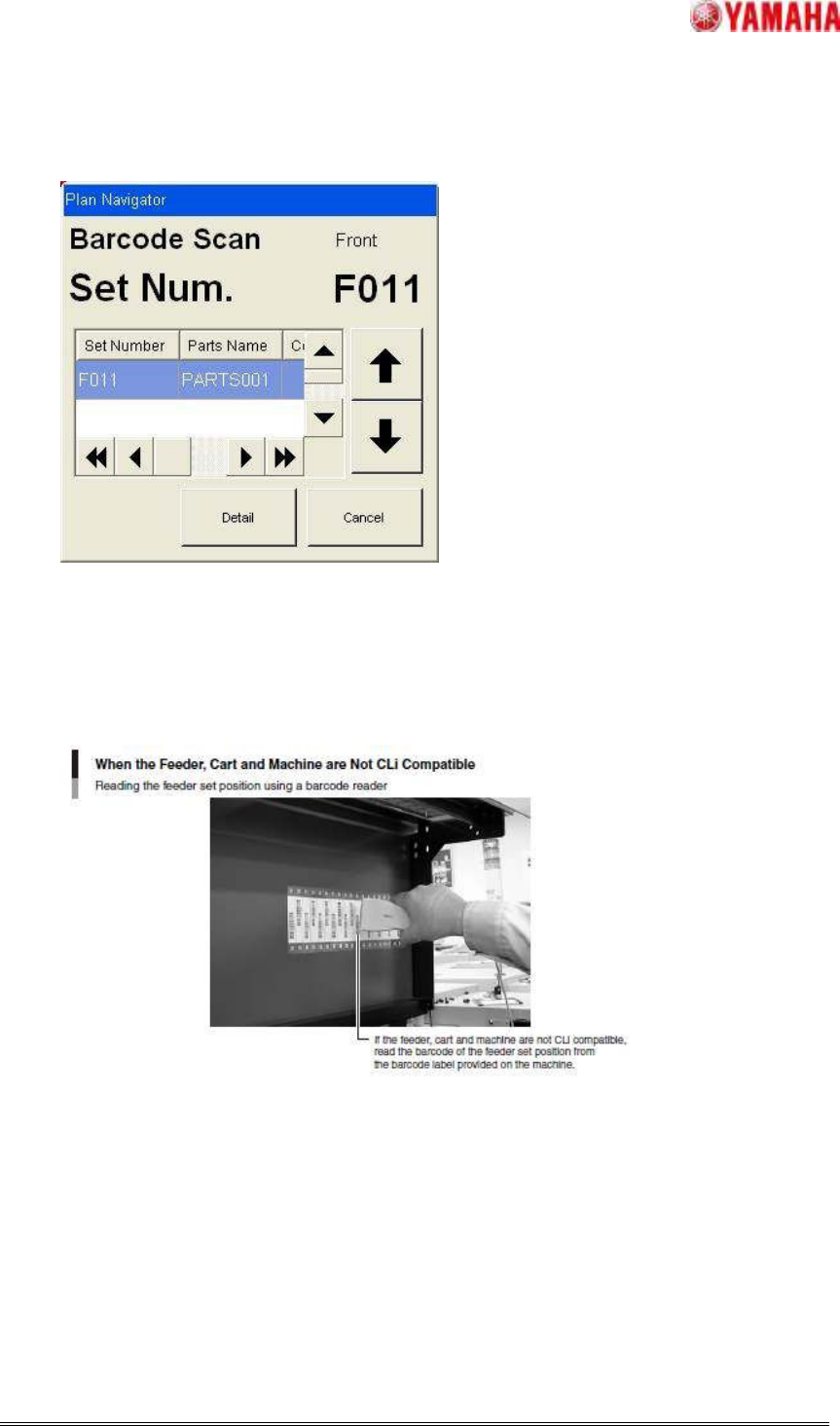

2. The Plan Navigator shows the position in which the feeder is to be set.
So, set the feeder into the specified position on the machine.
If the feeder, cart and machine are CLi compatible, the feeder set position will be
recognized automatically.
If they are not CLi compatible, read the barcode of the position where the new feeder is
set from the feeder set position barcode label provided on the machine.
