Overview
Overview C&P12
Service Manual SIPLACE D4
43
Star station 3
Reject cycle
After the gantry reaches the X and Y reject position, the valve positioning unit closes the vacuum
channel to the nozzle. Defective components are rejected from the nozzle with a short blast of
compressed air and are discarded.
Star station 7
The component is optically centered.
Star station 9
Pickup cycle
The nozzle is rotated to the pickup position.
Placement cycle
The component is rotated to the placement position (angle of rotation).
Star station 10
Sleeves can be removed here for maintenance and then reinserted.
Between star station 11&12
Option on 12 nozzle head: The presence and/or height of the component is checked before
placement.
3.6.1.4 Overview of C&P6/12 Head Parts
3-24: C&P12 head
Legend - overview of parts 1
1. Collect&Place head 12 (DLM3)
[03041228-xx] (shown)
Collect&Place head 6 (DLM3)
[03048341-xx] (not for D4)
2. Light barrier "Z axis up " (behind the cover)
[00347297-xx]
3. Placement circuit valve positioning drive
[00368076-xx]
Reject circuit valve positioning drive
[00368074-xx]
4. Z axis toothed belt
[00334936-xx]
5. Z axis drive
[03038908-xx]
6. Intermediate distributor, digital (behind the
cover)
[00330648-xx]
Overview
C&P12 Overview
44 Service Manual SIPLACE D4
3-25: C&P12 head
Legend - overview of parts 2
1. Forced air unit with electromagnetic valve
(version 02 – backwards compatibility)
[00367793-xx]
2. Silencer
[03003134-xx]
3. Turning station
[00341780-xx]
4. Component camera 18x18
[03014449-xx]
Component camera 27x27
[03018637-xx]
5. Compressed air connection for forced air unit
6. Compressed air supply for vacuum generator
(hold circuit and pickup/place)
7. Vacuum measuring board (under the cover)
3-26: C&P12 head
Legend - overview of parts 3
1. Star, Fitted
2. "Z axis down" sensor
3. RSF digital encoder 12/DLM2
4. Circular arc guide (raceway), aligned to star
drive axis
5. Star drive axis, centered by head housing and
Z axis claw
Overview
Overview C&P12
Service Manual SIPLACE D4
45
3.6.1.5 Compressed Air Supply - C&P Head
Vacuum Generator
Placement Head Function Check
Before the 1st reference run or with released Z and star axis:
Check Z axis:
Rotate the star so that one segment is in the star pickup/place position.
Position the Z axis up and down on the belt. The LED light barrier (LB) Z up will shine (down) or
extinguish (up).
Position the Z axis downwards, touch the nozzle tip and press upwards. The LB 'Z down' will shine
and both LEDs will shine until the Z axis is pulled up again.
Check the stepping motor for swiveling in the turning station:
Touch the turning station cam disk on the right side of the head with your finger and rotate it. The 'LB
DP' LED will shine and extinguish with the scan rhythm of the cam disk.
Check the stepping motors of the valve positioning drives:
Feel along the bottom of the placement head from the right side and touch the cam disk upwards in
the pickup/place position.

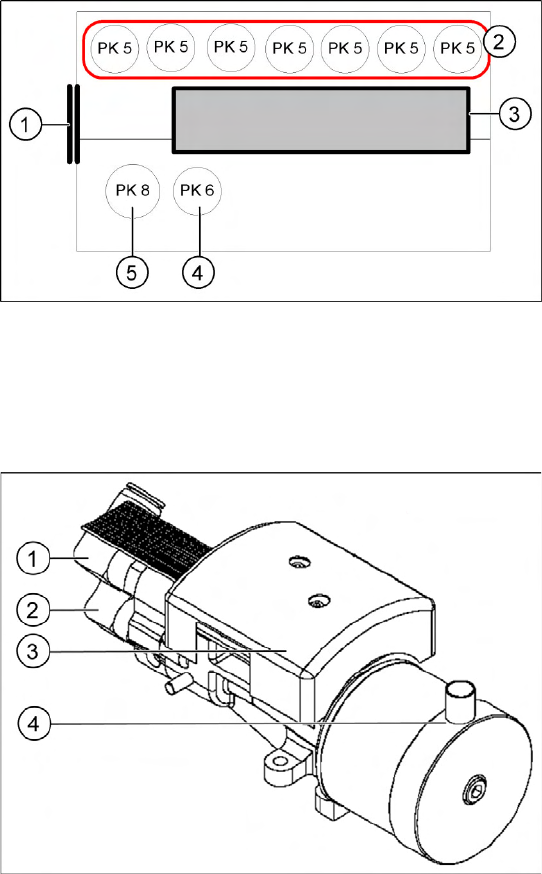

3-27: Pneumatic distributor under the gantry head distributor (symbolic side
view from the right)
The placement head is supplied with 4.5 bar
compressed air from the pneumatic unit. The 7-
fold pneumatic hose is also used to cool the Y-axis
motor.
Legend
1. Input: Discharged air Venturi nozzle
pneumatic hose (PK12)
2. Input: 7-fold pneumatic hose (PK 5)
3. Silencer for discharged air
4. Compressed air for the pickup / placement
circuit (PK6)
5. Compressed air for hold circuit (PK8)
3-28: Vacuum generator
Legend
1. Hold circuit supply
2. Placement and pickup circuit for blast air
supply
3. Vacuum measuring board
4. Discharged air from the vacuum generator to
the silencer in the compressed air distributor
