Review 3 Setting up and Commissioning 3.4 Fitting the bridge cover SIPLACE WPC on the SIPLACE X-Series S 76 Assembly Instructions / Montageanleitung SIPLACE WPC an SIPLACE X-Serie S SIPLACE WPC on SIPLACE X Series S 03/2…
Review
3 Setting up and Commissioning
3.3 Fitting the CAN Switch
Assembly Instructions / Montageanleitung SIPLACE WPC an SIPLACE X-Serie S SIPLACE WPC on SIPLACE X
Series S 03/2020
75

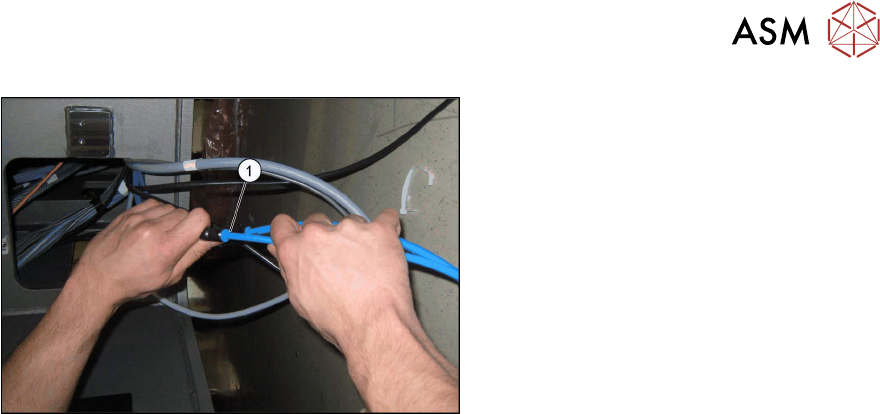

Fig.26: Pneumatic hoses on fixed table
► To do this, pull the unused pneumatic
hoses out of the machine.
► Remove the cover from the pneumatic
hoses.
► Connect the pneumatic hoses (1) for
the fixed table.
The X10bn connection remains open.
► Fix the cable into place with the cable ties so that nothing can be pinched or rubbed.
Review
3 Setting up and Commissioning
3.4 Fitting the bridge cover SIPLACE WPC on the SIPLACE X-Series S
76 Assembly Instructions / Montageanleitung SIPLACE WPC an SIPLACE X-Serie S SIPLACE WPC on SIPLACE X
Series S 03/2020

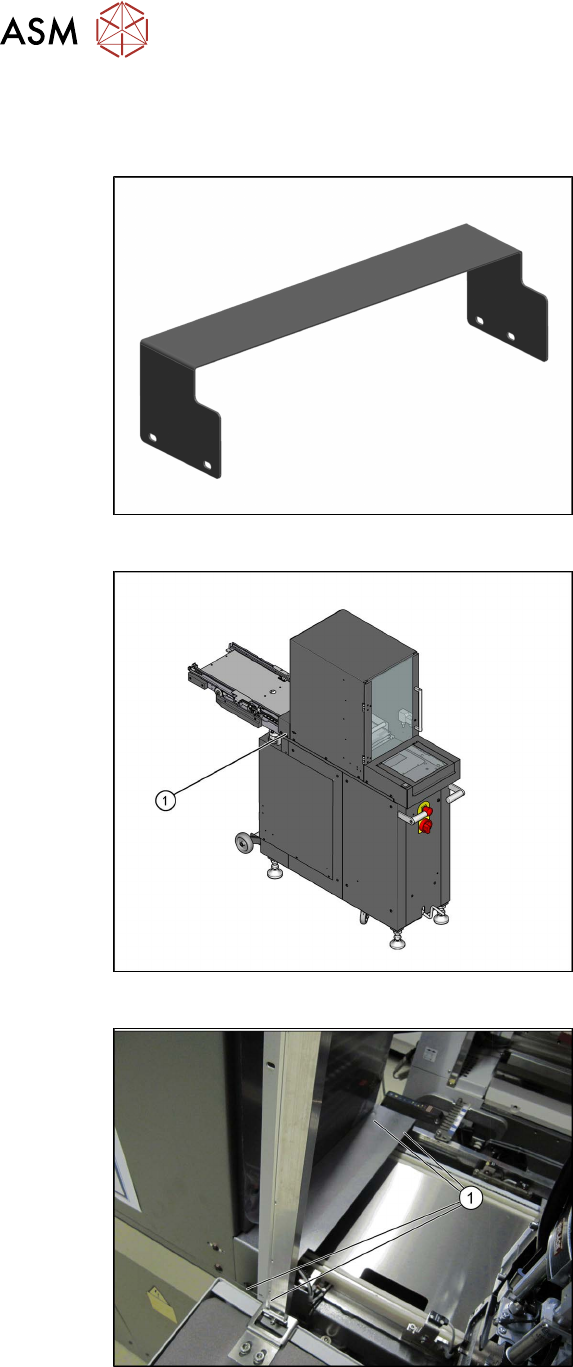

3.4 Fitting the bridge cover SIPLACE WPC on the SIPLACE
X-Series S
Fig.27: Bridge cover SIPLACE WPC
●
Bridge cover SIPLACE WPC
[03113720-xx] (40mm)
●
Bridge cover SIPLACE WPC short
[03117888-xx] (30mm)
When using a SIPLACE WPC with a max-
imum component height of 40mm, fit the
bridge cover for the SIPLACE WPC
[03113720-xx] (40mm).
When using a SIPLACE WPC with a max-
imum component height of 30mm, fit the
short bridge cover for the SIPLACE WPC
[03117888-xx] (30mm).
Fig.28: Bridge cover SIPLACE WPC
► Fit the bridge cover for SIPLACE WPC
[03113720-xx] (40mm) or the short
bridge cover for SIPLACE WPC short
[03117888-xx] (30mm)(1)
onto the
SIPLACE WPC.
Fig.29: Bridge cover for SIPLACE WPC with four screws
M6x8
► Fasten the bridge cover for SIPLACE
WPC with the four screws M6x8(1)
.
Review
3 Setting up and Commissioning
3.5 Fitting the Waste Tape Slide
Assembly Instructions / Montageanleitung SIPLACE WPC an SIPLACE X-Serie S SIPLACE WPC on SIPLACE X
Series S 03/2020
77
3.5 Fitting the Waste Tape Slide
Fig.30: Waste tape chute
1. Waste tape slide
2. COT insert
Fig.31: Fastening screw, left
1. Fastening screw for used tape chute,
left, at the location
