Installation Manual SIPLACE EDM Edition 11/2006 5.3.3 Default configuration See 7.2 . ClientWorkflow.xml 52 of 66
Installation Manual SIPLACE EDM Edition 11/2006

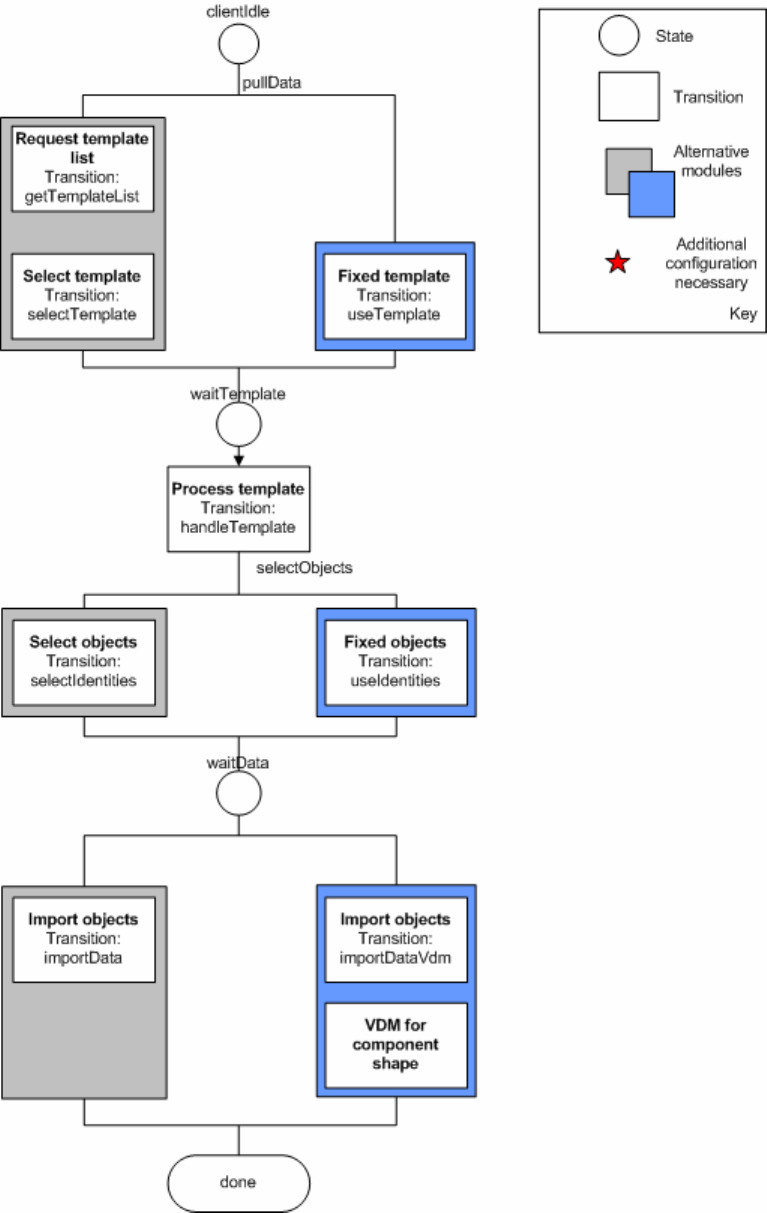

Figure 15 Current configuration options for client workflows
51 of 66
Installation Manual SIPLACE EDM Edition 11/2006
5.3.3 Default configuration
See 7.2. ClientWorkflow.xml
52 of 66
Installation Manual SIPLACE EDM Edition 11/2006
5.4 EDM configuration
5.4.1 Application templates
As already mentioned, the application templates depict the static part of the customer process that is
related to the data. They primarily define the object types to be transferred and whether or not they
will be overwritten.
5.4.1.1 General settings

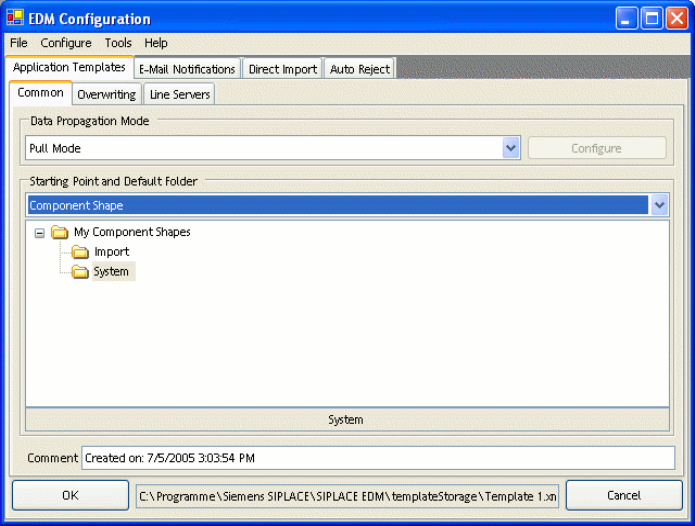

Figure 16 General settings for application templates
The general settings include:
• Type of data transfer. Currently, you can only select “Pull Mode” or “Forced Pull Mode”.
• Starting Point specifies the object type for which this template is valid. A template can only be
valid for one object type at a time, though. It is possible, of course, to define more than one
template for an object type.
• Objects found in the default folder and all its subdirectories for the data transfer from the master
can be specified later on by the line engineer.
• An optional comment.
53 of 66
