Order No. 00192 169-01 User Manual - Productivity Lift
E_SPLFS03_V40_11_0300_200300_V1_14.doc Last update: 20.03.2000 - Version V 1.14 Page 48

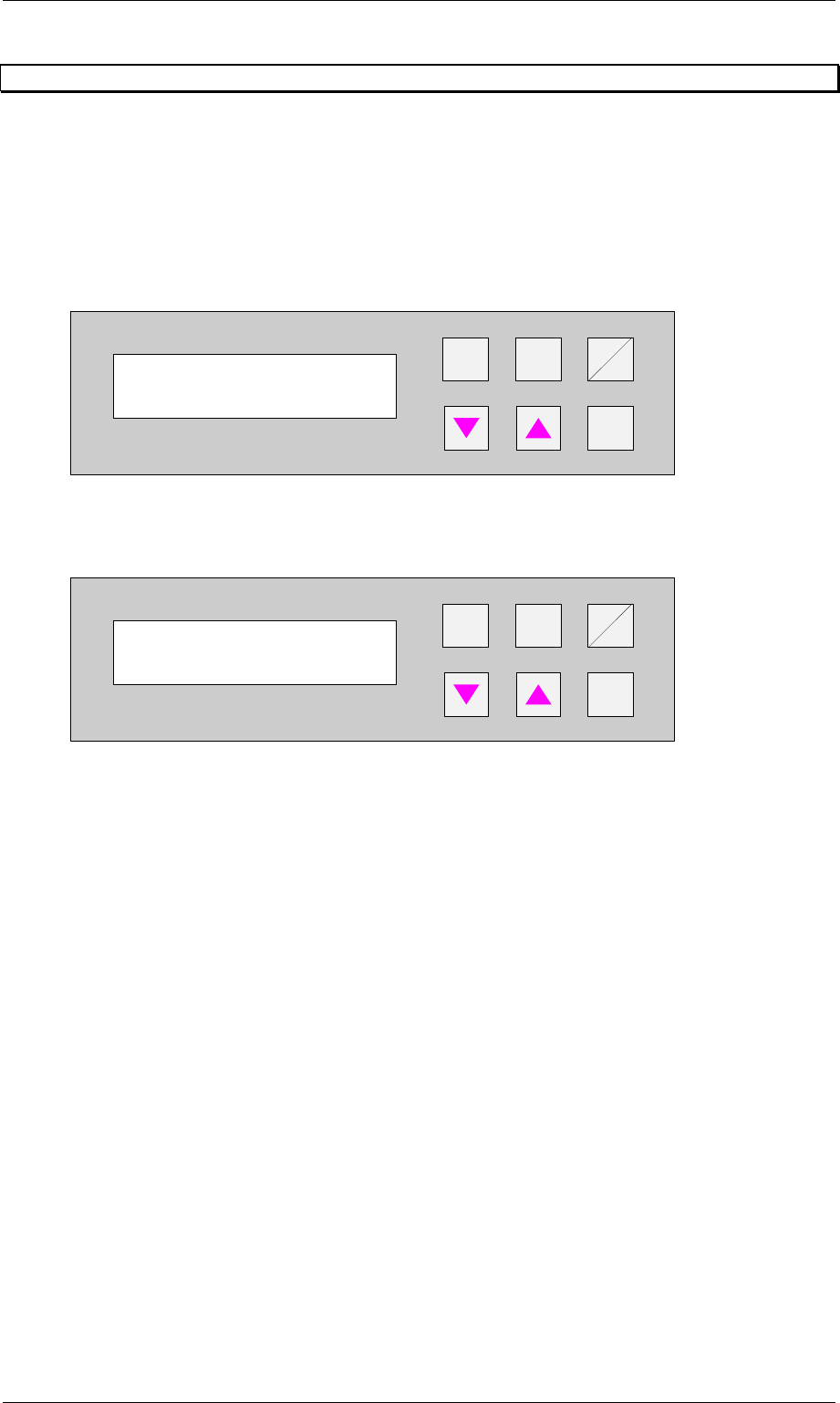

7.10 PCB inspection 2
This feature allows to inspect a PCB on the transport modul placed before the Productivity Lift.
This feature can be enabled for a input or cluster module.
The PCB inspection 2 will be conducted on track 2. The entered value defines the control
cycle. The value can be set between 0-99.
Value 0: Function disabled
Value 1: Each PCP is stopped
Value 3: Every third PCB is stopped.
+
Enter
Alt
Stop
Start
Figure 63: PCB inspection 2
If the feature is enabled, the display shows inspection track 2.
+
Enter
Alt
Stop
Start
Figure 64: Inspection track 2
PCB inspection 2
0 ... 99
Unit runs
Inspection track 2
Order No. 00192 169-01 User Manual - Productivity Lift
E_SPLFS03_V40_11_0300_200300_V1_14.doc Last update: 20.03.2000 - Version V 1.14 Page 49

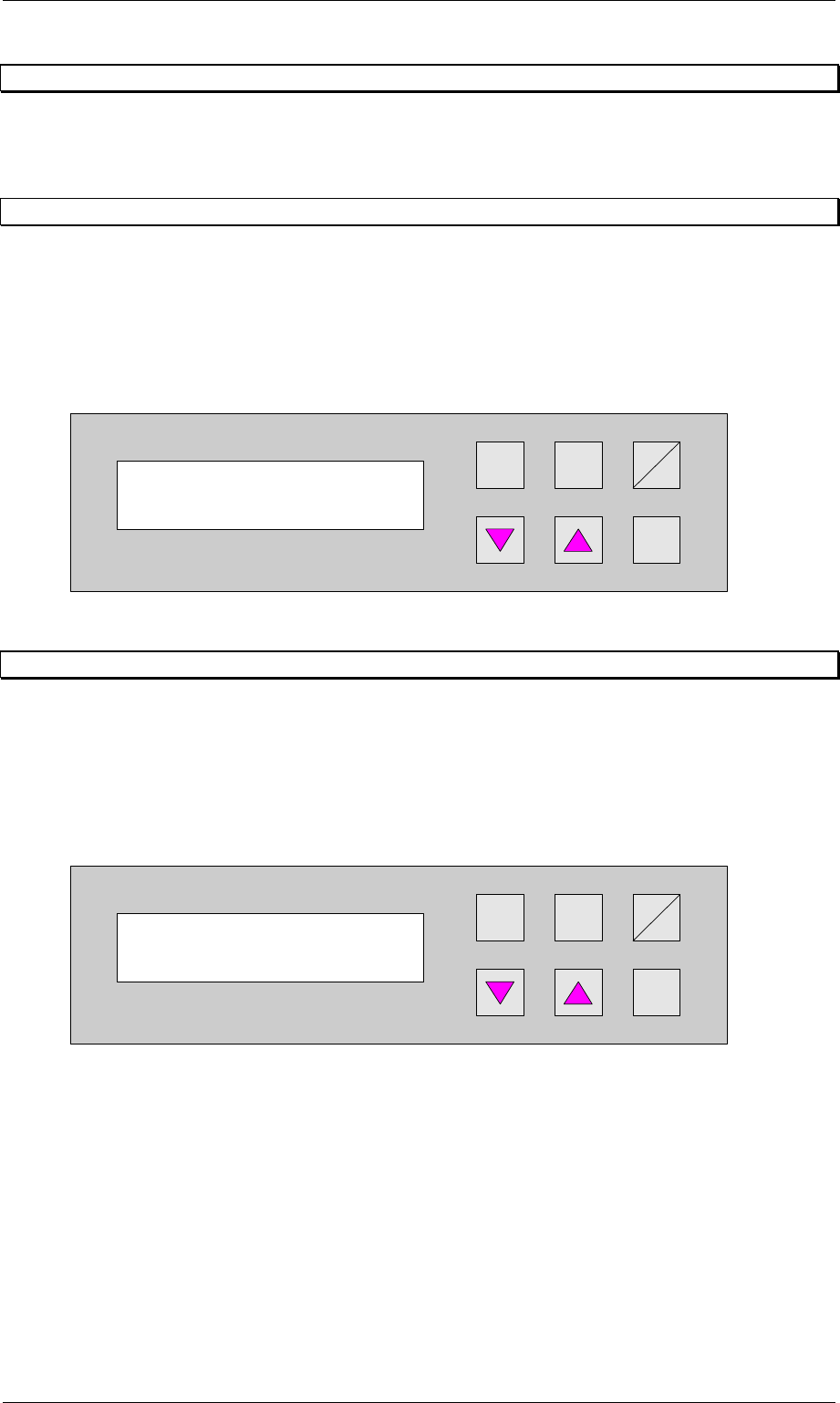

8 Manual mode
In the manual mode, the individual functions can be tested with the aid of the cursor keys.
The Hand key is used for changeover in the manual mode.
8.1 Manual mode 1 Lift 1
Test function for the top conveyor.
The cursor keys s and t can be used to move the top conveyor upwards and downwards,
while the Alt key can be used to switch the belt drive on for as long as the key is pressed
down. The conveyor can only be moved downwards if the shuttle is in its lower position.
The Enter key can be used to proceed to the next test function. To cancel the procedure, exit
the menu using the Start/Stop key.
Hand
Stop
Start
Enter
Alt
Figure 65: Manual mode 1 Lift 1
8.2 Manual mode 2 Lift 2
Test function for the shuttle.
The cursor keys s and t can be used to move the shuttle upwards and downwards, while
the Alt key can be used to switch the belt drive on for as long as the key is pressed down.
The shuttle can only be moved upwards if top conveyor is in its upper position.
The Enter key can be used to proceed to the next test function. To cancel the procedure, exit
the menu using the Start/Stop key.
Hand
Stop
Start
Enter
Alt
Figure 66: Manual mode 2 Lift 2
Manual mode 1
Lift 1
Manual mode 2
Lift 2
Order No. 00192 169-01 User Manual - Productivity Lift
E_SPLFS03_V40_11_0300_200300_V1_14.doc Last update: 20.03.2000 - Version V 1.14 Page 50

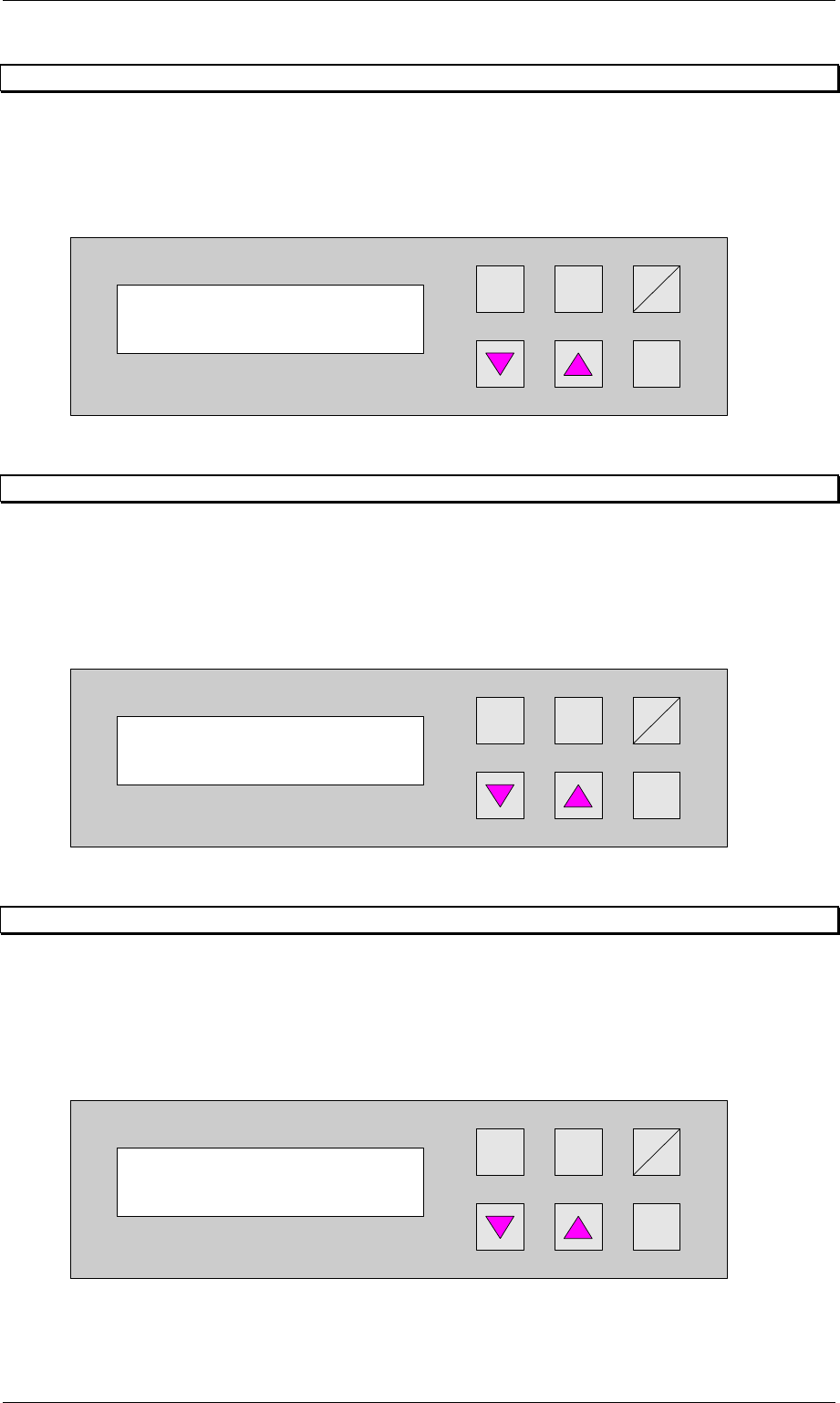

8.3 Manual mode 3 Shuttle
Test function for the shuttle.
The cursor keys s and t can be used to move the shuttle in back and forth direction.
The Enter key can be used to proceed to the next test function. To cancel the procedure, exit
the menu using the Start/Stop key.
Hand
Stop
Start
Enter
Alt
Figure 67: Manual mode 3 Shuttle
8.4 Manual mode 4 underneath belt
Test function for the underfloor conveyor.
The cursor key s can be used to switch on the drive of the first segment (inlet) and the t
key to switch on that of the second segment (outlet).
The Enter key can be used to proceed to the next test function. To cancel the procedure, exit
the menu using the Start/Stop key.
Hand
Stop
Start
Enter
Alt
Figure 68: Manual mode 4 underneath belt
8.5 Manual mode 5 Width lift 1
Function to set the width for the top conveyor.
The cursor keys s and t can be used to increase and/or decrease the width of the
conveyor.
The Enter key can be used to proceed to the next test function. To cancel the procedure, exit
the menu using the Start/Stop key.
Hand
Stop
Start
Enter
Alt
Figure 69: Manual mode 5 width lift 1
Manual mode 3
Shuttle
Manual mode 4
underneath belt
Manual mode 5
Width lift 1
