Order No. 00192 169-01 User Manual - Productivity Lift
E_SPLFS03_V40_11_0300_200300_V1_14.doc Last update: 20.03.2000 - Version V 1.14 Page 72

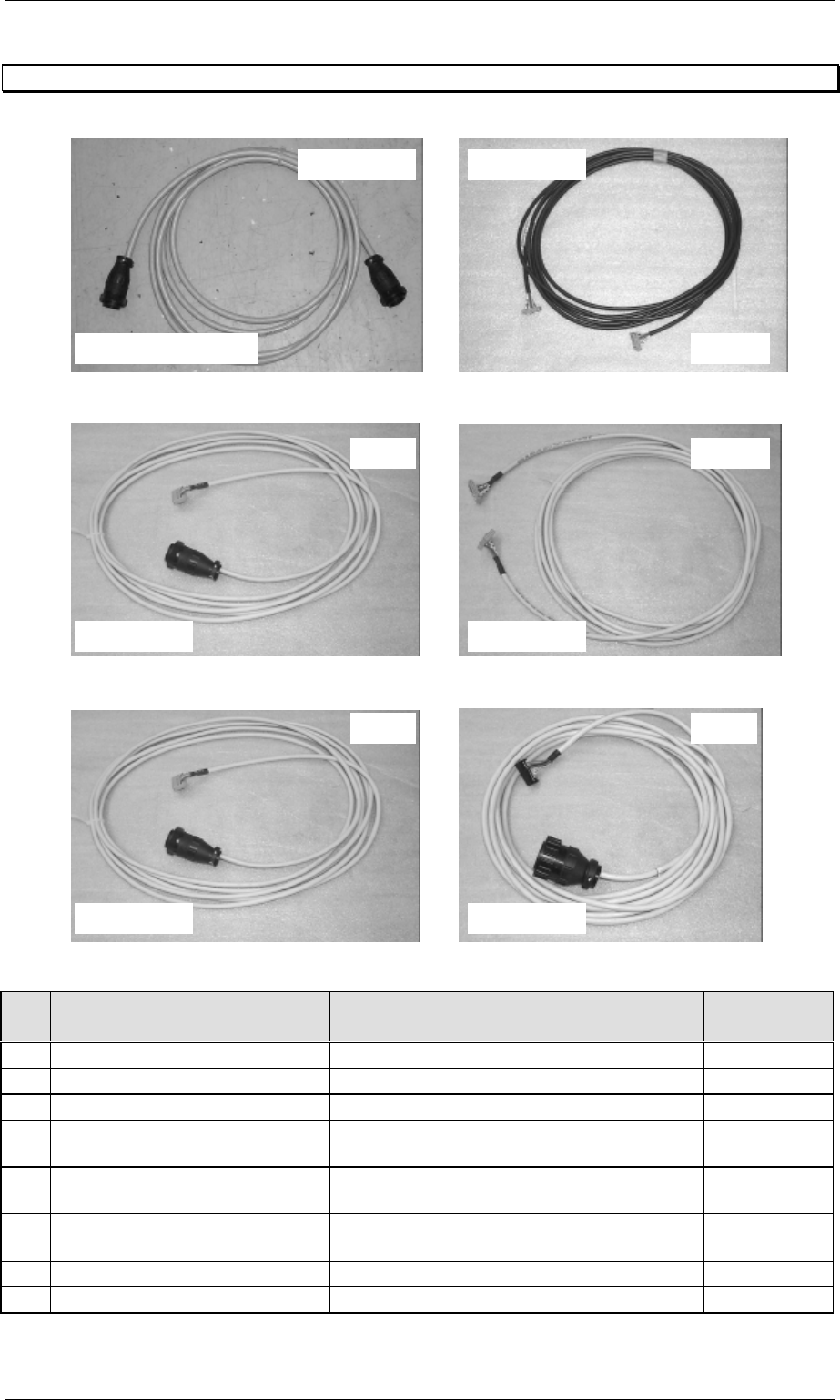

15.4 Connection and Interface cables
Figure 86: Connection cable Lift Lift and Interface cable SPL ASYS modules
Figure 87: Connection cable Lift Placement system for SMEMA and Siemens
Figure 88: Interface cable for SMEMA and Siemens interfaces
Ser.
No.
Designation Description Material No. Siemens
Item No.
82 Connection cable SPL S20 14/1-polig; 3m 60.004.025-01 00352854-01
83 Connection cable SPL HS 50 14/1-polig; 4m 60.004.026-01 00352855-01
84 Connection cable SPL external 20/37-polig Siemens 60.004.130-01 00352856-01
85 Interface cable SPL external
ASYS modules
16/16-polig SMEMA 60.004.127-01 00353046-01
86 Interface cable SPL external
and Placement Systems
16/14-polig SMEMA 60.004.129-01 00353086-01
87 Interface cable SPL Placement
Systems
20/20-polig Siemens 60.004.128-01 00353087-01
88 Connection cable SPL SPLC SX4 - XS4.1 60.576.024-01 00354753-01
89
Prices on request.
16/14-poles 20/37-poles
20/20-poles16/14-poles
14/1-poles, 3m or 4m
Nos. 82 / 83
No. 86 No. 87
No. 86 No. 84
16/16-poles
No. 85
Order No. 00192 169-01 User Manual - Productivity Lift
E_SPLFS03_V40_11_0300_200300_V1_14.doc Last update: 20.03.2000 - Version V 1.14 Page 73
16 Appendix D Data sheets
16.1 Appendix D Control unit CAN/MM100
Order No. 00192 169-01 User Manual - Productivity Lift
E_SPLFS03_V40_11_0300_200300_V1_14.doc Last update: 20.03.2000 - Version V 1.14 Page 74
16.2 Appendix D Additive module for control unit CAN/MS1
