MODEL TPM-1 10F/R 0108-001 Key No . P AR T No . P AR T NAME Q’ty REMARKS NOTE 127 K-5 40 1 630 102 9863 BRACKET 1 748K--210-401 40 2 630 102 9870 BRACKET 1 748K--210-402 40 3 630 102 9887 BRACKET 1 748K--210-403 40 4 630…
MODEL TPM-110F/R
0108-001
126
メカ廻り MECHANICAL DISTRIBUTION SECTION

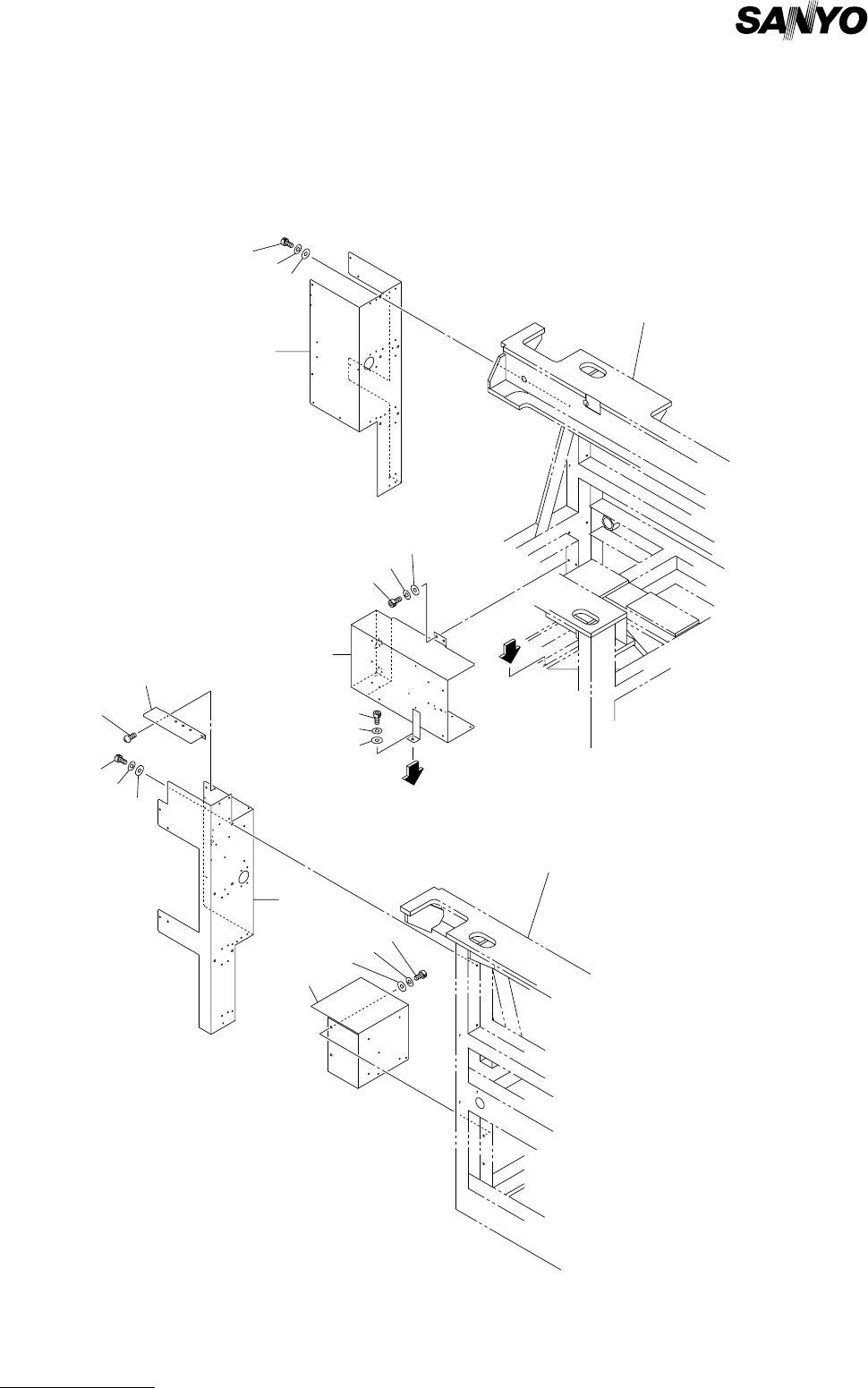

Fig. K-5 電装 2 Electrical Parts-2
463
464
461
401
462
466
465
403
464
461
463
405
463
464
461
467
402
See Fig.K-1
Key No.4
See Fig.K-1
Key No.4
461
464
463
404
A
A
Fig.K-5
TPM-100F/R
TPM-110F/R
MODEL TPM-110F/R
0108-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
127
K-5
401 630 102 9863 BRACKET 1 748K--210-401
402 630 102 9870 BRACKET 1 748K--210-402
403 630 102 9887 BRACKET 1 748K--210-403
404 630 090 8626 BRACKET 1 748K--210-404
405 630 103 0050 BRACKET 1 748K--210-405
461 630 000 7756 BOLT,HEX-SCT 13 748K--210-461
462 630 000 7633 BOLT,HEX-SCT 2 748K--210-462
463 411 141 4107 WASHER V 5X10X1 13 748K--210-463
464 411 141 6705 WASHER SPR 5 13 748K--210-464
465 411 141 4008 WASHER V 4X9X0.8 2 748K--210-465
466 411 141 2905 WASHER SPR 4 2 748K--210-466
467 411 051 1708 SCR TRS 4X6 2 748K--210-467
MODEL TPM-110F/R
0108-001
128
メカ廻り MECHANICAL DISTRIBUTION SECTION

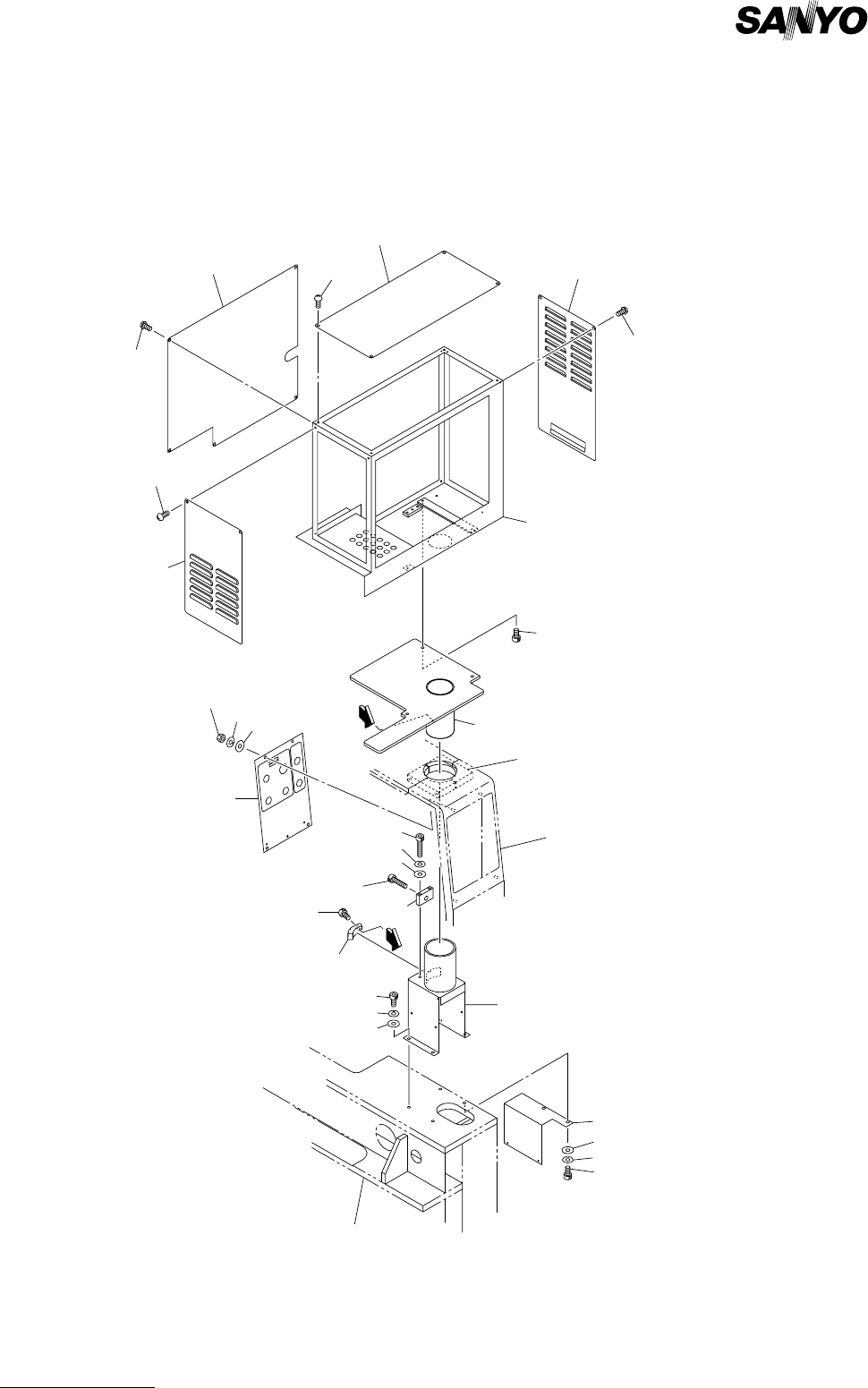

Fig. K-6 パネルボックス Panel Box
507
566
508
509
566
566
510
511
563
504
505
See Fig.K-1
Key No.4
See Fig.R-3
Key No.213
See Fig.R-1
Key No.11
512
564
565
562
561
565
564
570
563
502
565
562
564
503
567
569
568
A
A
506
Fig.K-6
TPM-110F/R
566
