MODEL TPM-1 10F/R 0108-001 Key No . P AR T No . P AR T NAME Q’ty REMARKS NOTE 169 S-2 10 1 630 091 1619 MECH P ARTS 1 280mm 748S--210-101 10 2 630 091 1633 MECH P ARTS 1 350mm 748S--210-102 10 5 630 091 0001 ASSY ,SUPPOR…
MODEL TPM-110F/R
0108-001
168
標準付属品 STANDARD ACCESSORIES
Fig. S-2 選択部品 Optional Parts
Fig.S-2
TPM-100F/R
TPM-110F/R
105
SQUEEGEE HOLDER
CLEANING PAPER
280mm
350mm
105-01
105-01
105-02
105-02
105-03
105-03
105-04
105-04
105-06
105-06
105-05
105-07
105-08
105-08
105-07
105-08
105-06
105-07
105-08
105-03
105-04
105-08
105-03
105-04
See Fig.FA-3
Key No.209
See Fig.M-2
Key No.128
See Fig.M-2
Key No.127
See Fig.FA-3
Key No.209
113-06
113-05
113-07
113-08
113-03
113-04
105-06
105-07
105-08
105-05
113-02
113-02
113-08
113-08
113-05
113-06
113-07
113-08
113-03
113-04
113-01
113-03
113-04
113-06
113-07
113-08
101
102
113-01
113-03
113-04
113-06
113-07
113-08
270mm
113
SQUEEGEE HOLDER
350mm
MODEL TPM-110F/R
0108-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
169
S-2
101 630 091 1619 MECH PARTS 1 280mm 748S--210-101
102 630 091 1633 MECH PARTS 1 350mm 748S--210-102
105 630 091 0001 ASSY,SUPPORT 2 270mm 748S--210-105
105 -01 630 090 9951 SUPPORT 1
105 -02 630 090 9968 SUPPORT 1
105 -03 630 090 9913 PLATE 2
105 -04 630 090 9920 PLATE 2
105 -05 630 091 0438 SHEET 1
105 -06 411 141 4008 WASHER V 4X9X0.8 2
105 -07 411 141 2905 WASHER SPR 4 2
105 -08 630 000 7626 BOLT,HEX-SCT 8
113 630 090 9975 ASSY,SUPPORT 2 350mm 748S--210-113
113 -01 630 090 9937 SUPPORT 1
113 -02 630 090 9944 SUPPORT 1
113 -03 630 090 9913 PLATE 2
113 -04 630 090 9920 PLATE 2
113 -05 630 091 0445 SHEET 1
113 -06 411 141 4008 WASHER V 4X9X0.8 2
113 -07 411 141 2905 WASHER SPR 4 2
113 -08 630 000 7626 BOLT,HEX-SCT 8
MODEL TPM-110F/R
0108-001
170
標準付属品 STANDARD ACCESSORIES

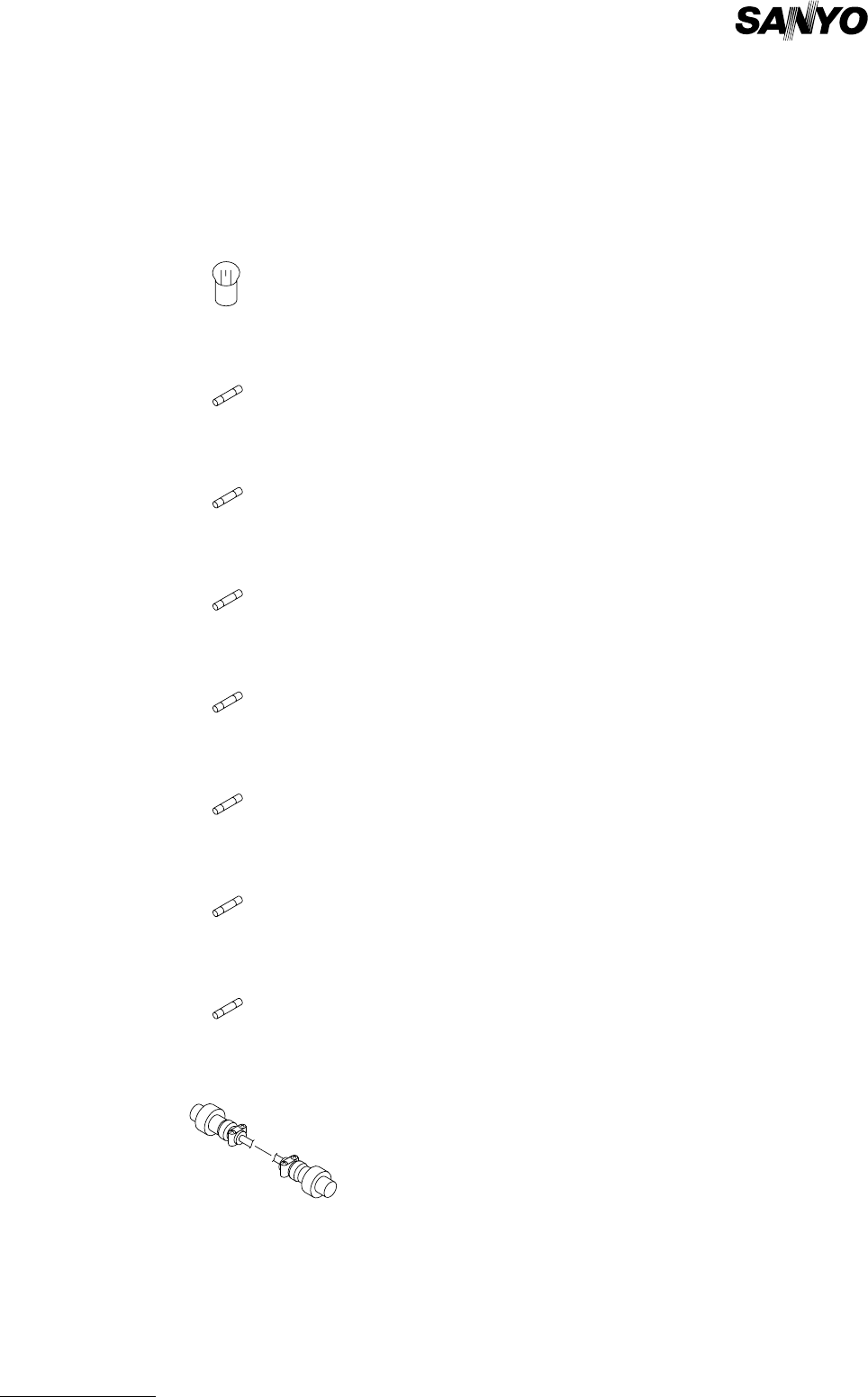

Fig. S-3 スペア部品 Spare Parts
Fig.S-3
TPM-100F/R
TPM-110F/R
201. LAMP For Light Tower
202. FUSE 250V 3.15A
203. FUSE 250V 0.4A
204. FUSE 250V 6.3A
205. FUSE 250V 0.8A
206. FUSE 250V 1A
207. FUSE 250V 5A
208. FUSE 250V 2A
209. CABLE For Previous/Next Interface
