MODEL TPM-1 10F/R 0108-001 Key No . P AR T No . P AR T NAME Q’ty REMARKS NOTE 167 S-1 1 630 091 1459 P L A T E 1 748S--210-001 2 630 091 1466 ROD 3 0 748S--210-002 3 630 093 5554 PIN,LOCA TE 2 748S--210-003 4 630 093 556…
MODEL TPM-110F/R
0108-001
166
標準付属品 STANDARD ACCESSORIES

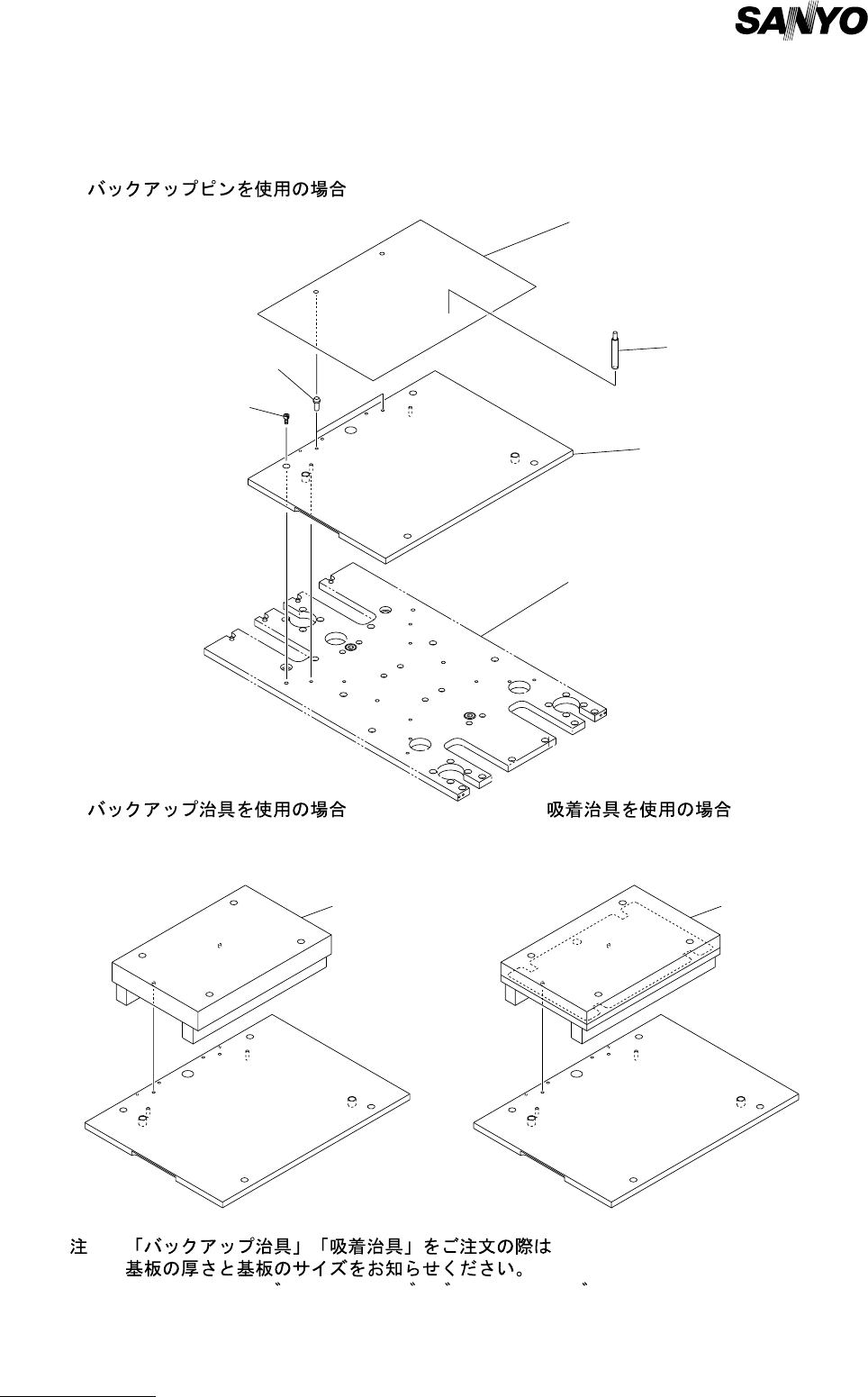

Fig. S-1 バックアップテーブル部 Back-Up Table Section
Fig.S-1
TPM-100R
TPM-110R
(1)
Use. of BACK-UP PIN
(2)
Use. of BACK-UP JIG
(
) 1.
(Note) 1.When ordering for BACK-UP JIG or HOLDING JIG ,
notify the P.C.B. thickness and the P.C.B. size
(3)
Use. of HOLDING JIG
See Fig.E-6
Key No.508
BUCK-UP JIG
(VARIANT)
HOLDING JIG
(VARIANT)
1
2
3
4
61
MODEL TPM-110F/R
0108-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
167
S-1
1 630 091 1459 PLATE 1 748S--210-001
2 630 091 1466 ROD 30 748S--210-002
3 630 093 5554 PIN,LOCATE 2 748S--210-003
4 630 093 5561 SHEET 1 748S--210-004
61 630 000 7749 BOLT,HEX-SCT 4 748S--210-061
MODEL TPM-110F/R
0108-001
168
標準付属品 STANDARD ACCESSORIES

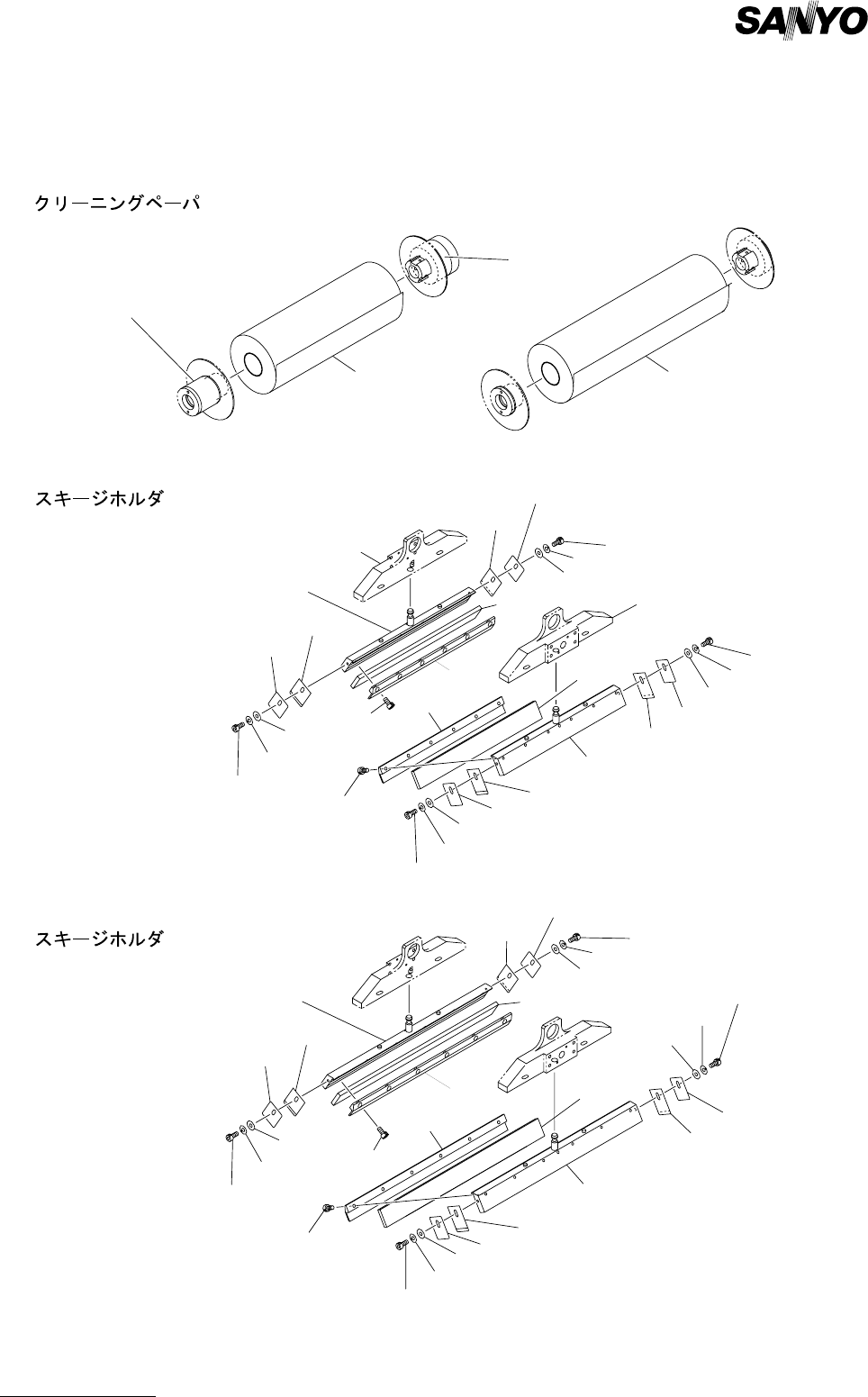

Fig. S-2 選択部品 Optional Parts
Fig.S-2
TPM-100F/R
TPM-110F/R
105
SQUEEGEE HOLDER
CLEANING PAPER
280mm
350mm
105-01
105-01
105-02
105-02
105-03
105-03
105-04
105-04
105-06
105-06
105-05
105-07
105-08
105-08
105-07
105-08
105-06
105-07
105-08
105-03
105-04
105-08
105-03
105-04
See Fig.FA-3
Key No.209
See Fig.M-2
Key No.128
See Fig.M-2
Key No.127
See Fig.FA-3
Key No.209
113-06
113-05
113-07
113-08
113-03
113-04
105-06
105-07
105-08
105-05
113-02
113-02
113-08
113-08
113-05
113-06
113-07
113-08
113-03
113-04
113-01
113-03
113-04
113-06
113-07
113-08
101
102
113-01
113-03
113-04
113-06
113-07
113-08
270mm
113
SQUEEGEE HOLDER
350mm
