MODEL TPM-1 10F/R 0108-001 158 コンソール部 CONSOLE SECTION Fig. FG-1 コンソール Console See Fig.K-4 Key No.302 5 64 1 6 3 4 2 2 61 62 63 67 65 66 61 62 63 Fig.FG-1 TPM-100F/R TPM-110F/R
MODEL TPM-110F/R
0108-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
157
D-1
1 630 089 2857 UNIT,I/O 1 N001, SAB10-TM16J3A
748D--210-001
2 630 090 8671 BRACKET 1 748D--210-002
3 630 033 4609 SWITCH,BUTTON 1 SPB003 748D--210-003
4 630 033 4586 DISPLAY ELEMENT 1 748D--210-004
5 630 033 4593 ACCESSORY,SW 1 HD003 748D--210-005
6 630 036 4620 SWITCH,BUTTON 1 SPB002 748D--210-006
7 630 000 2713 SWITCH,BUTTON 1 SPB001 748D--210-007
8 630 000 0382 ACCESSORY,SW 1 HD001 748D--210-008
9 630 000 2515 SWITCH,BUTTON 1 HA006 748D--210-009
10 630 000 3130 SWITCH,SELECTOR 1 SPB004 748D--210-010
11 630 035 0074 BUZZER 1 S005 748D--210-011
12 407 139 6505 VARISTOR TNR9G470K 1 748D--210-012
13 630 088 7235 CORD 1 XCN010- 748D--210-013
61 411 113 1400 SCR PAN 4X6 1 748D--210-061
62 411 008 1706 WASHER SPR 4 1 748D--210-062
63 411 119 2104 WASHER V 4X9X0.8 1 748D--210-063
64 630 000 7510 BOLT,HEX-SCT 2 748D--210-064
65 411 141 2806 WASHER SPR 3 2 748D--210-065
66 411 141 3902 WASHER V 3X7X0.5 2 748D--210-066
MODEL TPM-110F/R
0108-001
158

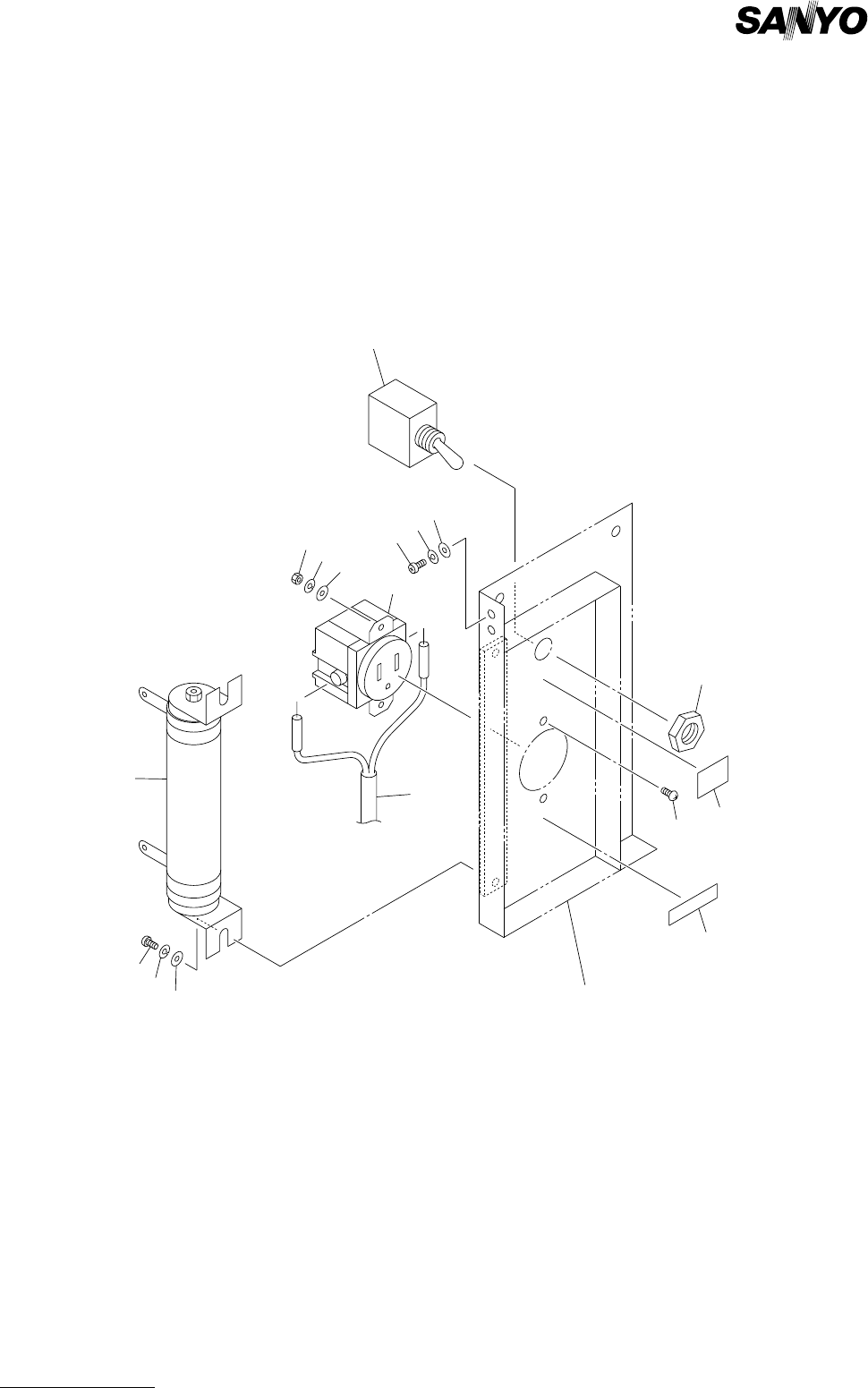

コンソール部 CONSOLE SECTION
Fig. FG-1 コンソール Console
See Fig.K-4
Key No.302
5
64
1
6
3
4
2
2
61
62
63
67
65
66
61
62
63
Fig.FG-1
TPM-100F/R
TPM-110F/R
MODEL TPM-110F/R
0108-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
159
FG-1
1 630 000 4243 SOCKET 1 X001 748FG-210-001
2 630 049 1098 SWITCH,TOGGLE 1 S101 748FG-210-002
3 402 061 5206 WIRE WOUND 100 JB 80W 1 R101 748FG-210-003
4 630 091 1817 NAME PLATE,INDEX 1 748FG-210-004
5 630 091 1824 NAME PLATE,INDEX 1 748FG-210-005
6 630 088 6405 CORD 1 748FG-210-006
61 411 113 1400 SCR PAN 4X6 4 748FG-210-061
62 411 008 1706 WASHER SPR 4 4 748FG-210-062
63 411 119 2104 WASHER V 4X9X0.8 4 748FG-210-063
64 411 040 6202 SCR PAN 3X10 2 748FG-210-064
65 411 086 4408 WASHER SPR 3 2 748FG-210-065
66 411 119 1909 WASHER V 3X7X0.5 2 748FG-210-066
67 411 054 6809 NUT HEX 3 2 748FG-210-067
