MODEL TPM-1 10F/R 0108-001 130 メカ廻り MECHANICAL DISTRIBU TION SECTION Fig. K-7 配線 Wiring 636 Fig.K-7 TPM-110F/R A C VIEW"A" VIEW"B" B 626 610 See Fig.E-7 Key No.601 See Fig.R-3 Key No.214 See Fig.H-1 K…
MODEL TPM-110F/R
0108-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
129
K-6
502 630 090 9210 BLOCK 1 748K--210-502
503 630 090 9227 BLOCK 1 748K--210-503
504 630 102 5247 BRACKET 1 748K--210-504
505 630 102 9948 BRACKET 1 748K--210-505
506 630 102 5254 BOX 1 748K--210-506
507 630 102 5261 COVER 1 748K--210-507
508 630 102 5278 COVER 1 748K--210-508
509 630 102 5285 COVER 1 748K--210-509
510 630 102 5292 COVER 1 748K--210-510
511 630 102 6138 PANEL 1 748K--210-511
512 630 090 8534 BRACKET 1 748K--210-512
561 630 000 7800 BOLT,HEX-SCT 2 748K--210-561
562 630 000 7749 BOLT,HEX-SCT 6 748K--210-562
563 630 000 7626 BOLT,HEX-SCT 5 748K--210-563
564 411 141 4107 WASHER V 5X10X1 8 748K--210-564
565 411 141 6705 WASHER SPR 5 8 748K--210-565
566 411 051 1708 SCR TRS 4X6 13 748K--210-566
567 411 054 8506 NUT HEX 4 4 748K--210-567
568 411 141 4008 WASHER V 4X9X0.8 4 748K--210-568
569 411 141 2905 WASHER SPR 4 4 748K--210-569
570 630 000 8128 BOLT,HEX-SCT 1 748K--210-570
MODEL TPM-110F/R
0108-001
130
メカ廻り MECHANICAL DISTRIBUTION SECTION

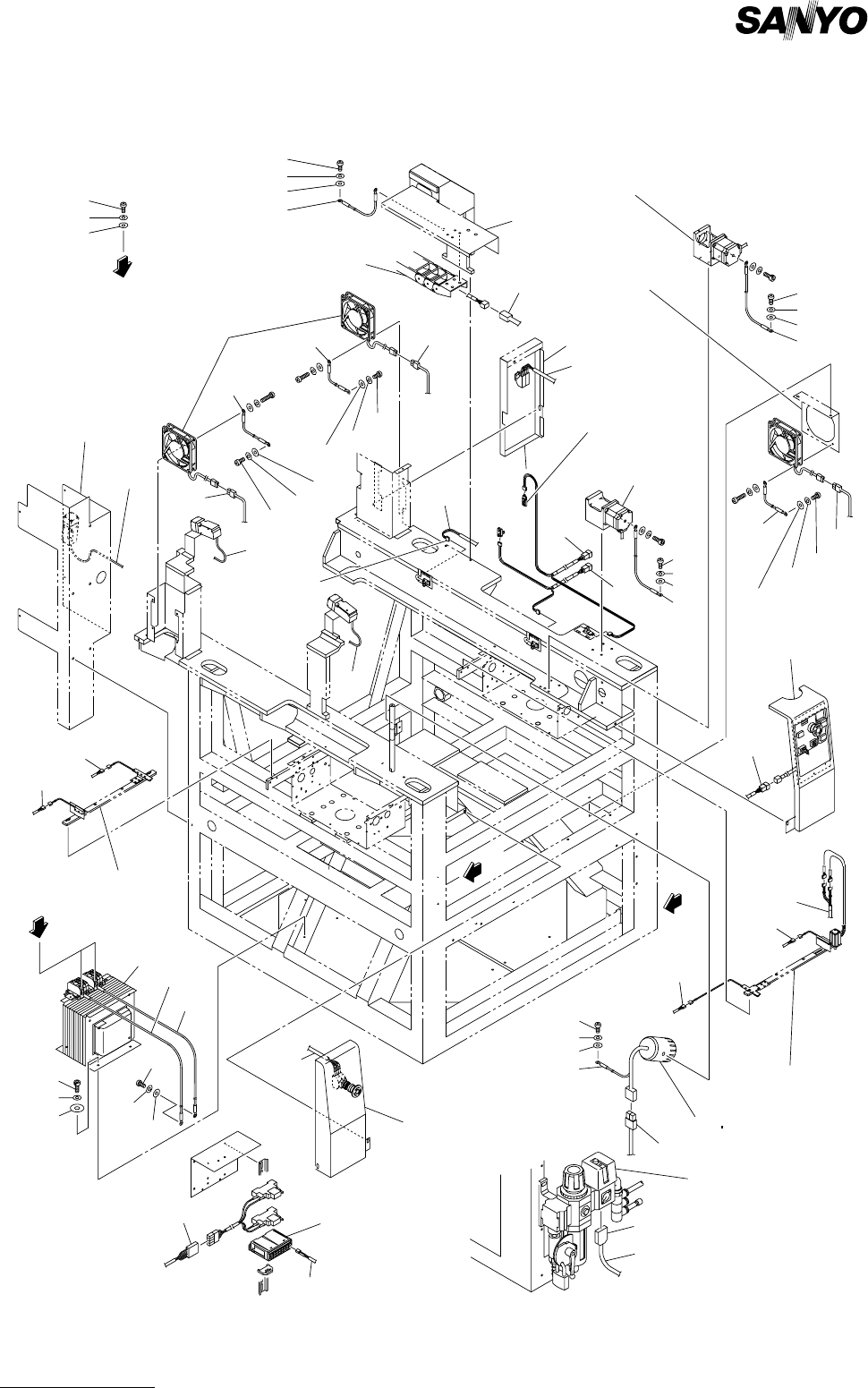

Fig. K-7 配線 Wiring
636
Fig.K-7
TPM-110F/R
A
C
VIEW"A"VIEW"B"
B
626
610
See Fig.E-7
Key No.601
See Fig.R-3
Key No.214
See Fig.H-1
Key No.14
See Fig.K-5
Key No.402
See Fig.K-2
Key No.101
See Fig.H-3
Key No.216
See Fig.R-3
Key No.213
See Fig.G-4
Key No.310
See Fig.R-2
Key No.118
See Fig.R-1
Key No.2
See Fig.FA-1
Key No.14
See Fig.R-1
Key No.7
See Fig.R-3
Key No.217
See Fig.F-2
Key No.101
See Fig.F-2
Key No.105
See Fig.G-4
Key No.308
638
611
601 601-01
607
661
662
663
621
664
665
666
612
633
637
608
606
661
662
663
661
662
663
620
661
662
663
623
661
662
663
622
624
625
635
663
662
661
614
662
661
663
629
662
661
663
605
604
619
618
615
609
613
663
662
661
616
602
617
C
634
631
632
MODEL TPM-110F/R
0108-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
131
K-7
601 630 000 5271 LIGHTING UNIT 1 E101 748K--210-601
601 -01 630 005 4286 LAMP 1
602 630 086 2539 TRANSFORMER,POWER 1 T001, #ENT1-2K-TS 748K--210-602
604 630 088 6887 CORD 1 XNC111- 748K--210-604
605 630 088 6894 CORD 1 XNC112- 748K--210-605
606 630 088 6900 CORD 1 XNC113- 748K--210-606
607 630 088 6917 CORD 1 XNC101- 748K--210-607
608 630 088 6924 CORD 1 XNC006- 748K--210-608
609 630 088 6931 CORD 1 748K--210-609
610 630 088 6948 CORD 1 XNC3170- 748K--210-610
611 630 088 6955 CORD 1 748K--210-611
612 630 088 6962 CORD 1 748K--210-612
613 630 088 6979 CORD 1 748K--210-613
614 630 088 6986 CORD 1 748K--210-614
615 630 088 6993 CORD 1 748K--210-615
616 630 088 7006 CORD 1 748K--210-616
617 630 088 7013 CORD 1 748K--210-617
618 630 088 7020 CORD 1 748K--210-618
619 630 088 7037 CORD 1 748K--210-619
620 630 088 7044 CORD 1 748K--210-620
621 630 088 7068 CORD 1 748K--210-621
622 630 088 7075 CORD 1 748K--210-622
623 630 088 7082 CORD 1 748K--210-623
624 630 088 7099 CORD 1 XNC1291- 748K--210-624
625 630 088 7105 CORD 1 XNC1331- 748K--210-625
626 630 088 7112 CORD 1 XNC05C-XNC105C 748K--210-626
629 630 088 7143 CORD 1 748K--210-629
631 630 088 7167 CORD 1 XNC040-XNC1040 748K--210-631
632 630 088 7174 CORD 1 XNC041-XNC1041 748K--210-632
633 630 088 7181 CORD 1 XNC044-XNC1044 748K--210-633
634 630 088 7198 CORD 1 XNC045-XNC1045 748K--210-634
635 630 088 7204 CORD 1 XNC046- 748K--210-635
636 630 088 6399 CORD 1 XNC2A06- 748K--210-636
637 630 088 5682 CORD 1 748K--210-637
638 630 000 1235 ACCESSORY,WIRING 1 748K--210-638
661 411 113 1400 SCR PAN 4X6 10 748K--210-661
662 411 008 1706 WASHER SPR 4 10 748K--210-662
663 411 119 2104 WASHER V 4X9X0.8 10 748K--210-663
664 630 000 7756 BOLT,HEX-SCT 3 748K--210-664
665 411 141 6705 WASHER SPR 5 3 748K--210-665
666 630 001 0220 WASHER 3 748K--210-666
