4 Printed Circui t Boards 142 I 0033541 4-010 101ND 4 825 board, HS-50 X/Y distr ibution board A = ID label B = Inspec tion label * Do not moun t G32918-J0 004-B001- *-0 017 2-la yer PC board Mounti ng di agra m, c ompon…
4 Printed Circuit Boards 141
I
00335413-020101ND3 830 board, S50 gantry distributor
01
51 20.05.97
30.10.97
KL
KL
ANL TD Elektronik E
SIEMENS AG
20.05.97
Klose
00335413-020101ND3
S50 gantry distribution board
830 board
G32918-J0010-B2-*-0017
Mounting diagram, component side
2-layer PC board
1
1
A = ID label
B = Inspection label
Pinch off pin
PinSocket Socket
ModifiedStat. Date Name
Date
Name
Scale 1:1
Sheet
Sh.
To X3, head board 00331451
To X3, X/Y distributor 00335414
Camera illumination
Step motor supply voltage
To X3, servo unit, motor/tacho, DP-axis
To X3, servo unit, motor/Tacho, Z-axis
Not inserted
To X3, servo unit, motor, DR-axis
Supply voltages 5V, ± 15V, 24V
Not inserted
Not inserted
To X8, servo unit, motor, X-axis
To X1, head board 00331451
To X2, head board 00331451
To X4, head board 00331451
Not inserted
To X2, X/Y distributor 00335414
To X1, X/Y distributor 00335414
Assembly
X9
X16
X17
X18
X13
X14
X15
X10
X11
X12
X1
X6
X7
X8
X5
X3
X4
X2
Plug
To X8, servo unit, motor, Y-axisX19
To X6, control unit, PCB cameraX20
To X6, control unit, component cameraX21
To/from gantry distributor/tape cutterX22
To/from tape cutter/gantry distributorX23
To X1, control unit, X-axis track signalsX24
To X3, control unit, DP-axis track signalsX25
To X1, control unit, Z-axis track signalsX26
Not insertedX27
To X5 control unit, DR-axis track signalsX28
Not insertedX29
Not insertedX30
To X50 and/or X51, servo unit, crash signalX31
To X3, control unit, Y-axis track signalsX32
Not usedX33
02 11.11.98 KL
Not insertedBR1
Jumper configuration
BR2 Not inserted
BR3 Jumper inserted
BR4 Jumper inserted
BR5 Not inserted
BR6 Open
BR7 Jumper inserted
BR8 Jumper inserted
BR9 Not inserted
BR10 Not inserted
BR11 Not inserted
BR12 Not inserted
4 Printed Circuit Boards 142
I
00335414-010101ND4 825 board, HS-50 X/Y distribution board
A = ID label
B = Inspection label
* Do not mount
G32918-J0004-B001-*-0017
2-layer PC board
Mounting diagram, component side
825 board
S50 X/Y distribution board
00335414-010101ND4
1
1
SIEMENS AG
25.11.97
Goller
25.11.97
20.02.98
04.03.97
KL
KL
KL51
01
02
Pinch off key pin
Socket Pins
Stat. Modified Date Name
Date
Name
Scale 1:1
Sheet
Sh.
10
X11
To X8, gantry distributor 00335413
To X6, gantry distributor 00335413
To X7, gantry distributor 00335413
AssemblyConnector
X3
X2
X1
3 Track A
Key
Track N
Track N
9
8
+ 5 V
Track B
Track B
DGND
5
7
6
4
Track A
Analog GND1
2
Y-motorX4
X-motorX5
Not usedX6
Proximity switch 2, Y-axisX7
Proximity switch 1, Y-axisX8
Distance sensorX9
Y-axis track signalsX10
Test connector for Y-axis track signalsX11
97531
10 8 462
4 Printed Circuit Boards 143
I

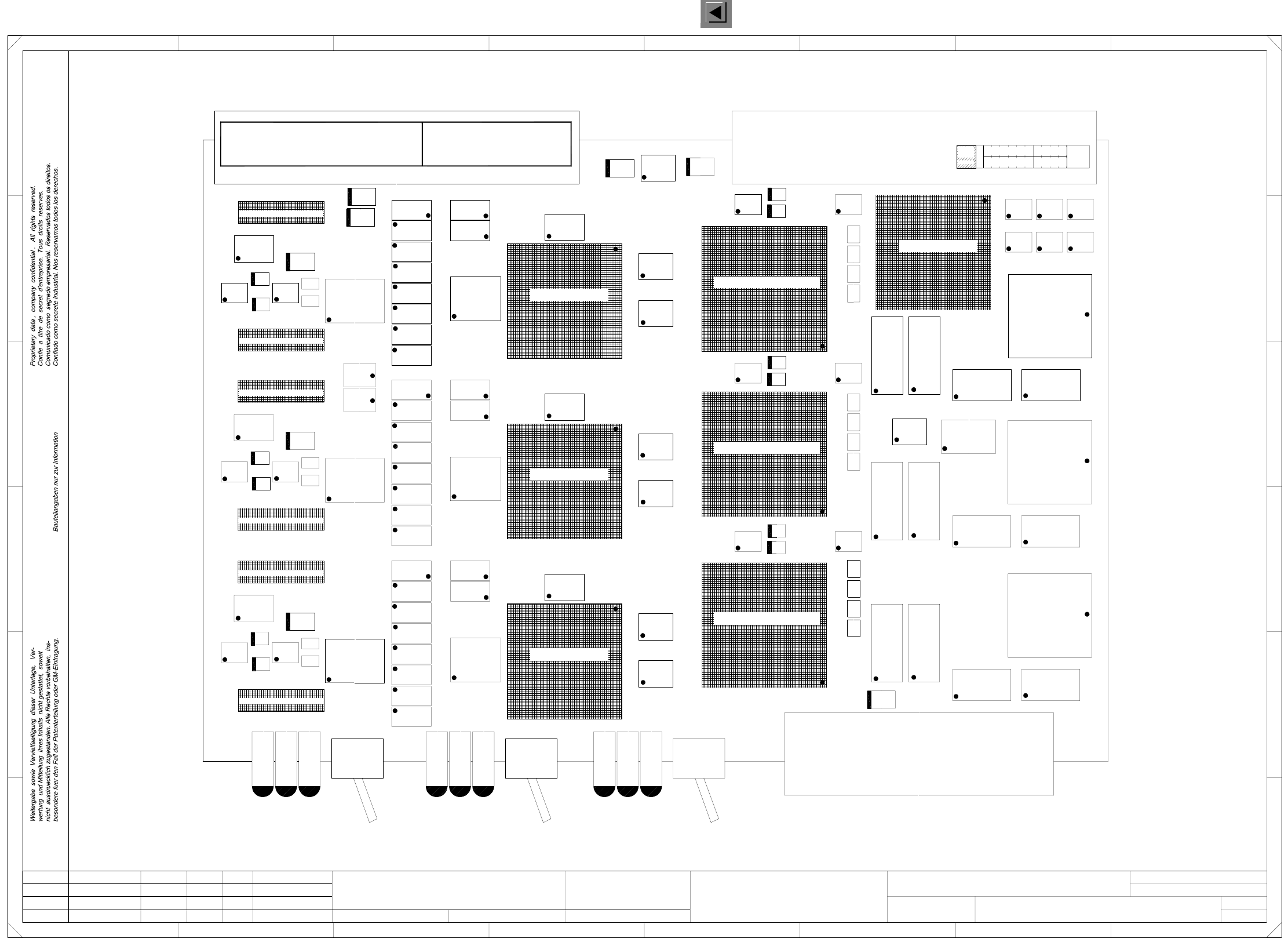

00335519-010101ND3 KSP-A362 axis (Sh. 1 of 2)
1U
1U
C69
C70
AD712
N4
SAB-C167CR-LM
D16
AT6002-2QI
D32
-04
BAS40
-04
BAS40
-04
BAS40
-04
BAS40
-04
BAS40
-04-04-04
BAS40 BAS40
D21
AM29F010-55EI
D22
AM29F010-55EI
-04 -04 -04-04
BAS40 BAS40BAS40 BAS40
AM29F010-55EI
AM29F010-55EI
D19
D20
16V
47U
82C250
U32
82C250
U31
82C25082C250
U34 U35 U36
MADE IN GERMANY
SIEMENS
KSP-A362 LB XXXXXX
6AR1312-0AA04-0AA0 KS:XX
TZ AUT5 00335519-XX
60
M4
LB
TESTED
98
12 34 56A I MR
789ONDHSLV
DG411DY
AD712
35V
35V
1U
1U
AD712
220N
220N
35V
10U
Connector, 30-pole, 2 rows
AD7247
SFH6106-3
SFH6106-3
SFH6106-3
SFH6106-3
SFH6106-3
SFH6106-3
SFH6106-3
SFH6106-3
74HCT540
SFH6106-3
SFH6106-3
A
1234
SMD Placement System SIPLACE HS50
00335519-010101ND3
5
Axis KSP-A362
678
2
+
=
Sheet
Sh.
1
F
E
D
567
C
B
8
A
red-red
Twin LED
green-green
Twin LED
green-green
Twin LED
1-pole
Toggle switch
Twin LED
red-red
Twin LED
green-green
Twin LED
green-green
Toggle switch
1-pole
26LS33
74AC08
74AC86
AT6003-2QI
26LS33
AT6003-2QI
74AC08
74AC86
35V
35V
1U
1U
35V
16V
47U
AD712
SAB-C167CR-LM
N7
AD712
35V
35V
1U
1U
C76
C73
AD712
N8
SAB-C167CR-LM
D17
N3
AD712
35V
35V
D6
74AC08
D14
D15
D7
D8
D9
74HCT540
D10
D11
D12
74AC86
D13
74AC74
D18
D23
AM29F010-55EI
D24
AM29F010-55EI
D27
IDT71321-SA55J
D28
74HC132
D29
D30
D31
26LS33
D33
SIEMENS AG
1.
1.
1.
F
1
Doc. status
Product status
Function status
Seer
Seer
Seer
12.10.98
12.10.98
12.10.98
E
D
23
12.10.1998
Seer
PL EA1 E2
4
C
B
82C250
IDT71321-SA55J
D26
KM68257CJ-15
D38
KM68257CJ-15
D39
IDT71321-SA55J
D25
KM68257CJ-15
D36
KM68257CJ-15
D37
Male multipoint connector, 96-pole
Male multipoint connector, 96-pole
SUBD female connector, 37-pole
Stand.Status Modified NameDate Orig. Replacement for Replaced by
Check.
Author
Date
MBRS340T3
Connector, 30-pole, 2 rows
Connector, 30-pole, 2 rows
DG411DY
AD712
35V
1U
1U
35V
AD712
220N
220N
AD7247
10U
35V
Connector, 30-pole, 2 rows
SFH6106-3
SFH6106-3
SFH6106-3
SFH6106-3
SFH6106-3
SFH6106-3
SFH6106-3
SFH6106-3
SFH6106-3
SFH6106-3
74HCT540
red-red
Twin LED
green-green
Twin LED
green-green
Toggle switch
1-pole
D34
D35
AT6003-2QI
D40
KM68257CJ-15
D41
KM68257CJ-15
N1
N2
N5
N6
N9
AD712
N10
AD712
N11
AD712
N12
N13
N14
N15
DG411DY
U1
U2
U3
U4
U5
U6
U7
U8 U9
U10
U11
U12
U13
U14
U15
U16
U17
U18 U19
U20
U21
U22
U23
U24
U25
U26
U27
U28
SFH6106-3
U29
U30
U33
82C250
U37
U38
U39
AD7247
V1
V2
MBRS340T3
V3V4 V5 V6
V7V8 V9 V10
V11
V12
BAS40
V13
V14
H1
Twin LED
H2
H3
H4
H5
H6
H7
H8
H9
C43
C44
C45
35V
C205
C206
C46
4.7U
C59
C60
C61
C62
C63
C64
220N
C71
C72
C74
C75
C77
C78
C79
C80
1U
C81
C82
G1
1633-40MHZ
S1
S2
S3
X1
X2
X3
X4
X5
X6
X7
X8
X9
10U
35V
10U
35V
10U
Connector, 30-pole, 2 rows
Connector, 30-pole, 2 rows
35V
SFH6106-3
SFH6106-3
SFH6106-3
SFH6106-3
SFH6106-3
SFH6106-3
SFH6106-3
SFH6106-3
SFH6106-3
35V
1U
220N
