Setup and Installation
2-6 AutoSite User Manual
Converting a
Contactor Set
This section describes how to convert a contactor set for use with
AutoSite.
Note: If you purchased AutoSite and the ProMaster 2000 at the same time, each
contactor set sent with the 2000 is ready for use with AutoSite. Go to step
6 to continue with the setup and installation.
If you purchased AutoSite and the 2000 separately (i.e., you are
connecting AutoSite to an existing 2000), you must convert each
contactor set you have before you can use it with AutoSite.
Follow the steps below to convert a contactor set for use with AutoSite:
1. Unplug the power cord from the AutoSite control unit.
2. Remove the contactor set from the 2000 by loosening the two
thumbscrews shown in Figure 2-4. With the thumbscrews loosened,
lower the contactor set from the 2000.
3. Using a 5/32-inch hex driver, remove the four hex head screws
shown in Figure 2-5. Discard these screws; you will not need them
later.
Figure 2-4
Removing the Contactor Set from
the ProMaster 2000
1346-1
CONTACTOR SET
THUMBSCREWS
Setup and Installation
AutoSite User Manual 2-7
4. Position the pin driver head mounting plate on the contactor set as
shown in Figure 2-6. Make sure the guide pins on the contactor set
align with the proper guide holes on the pin driver head mounting
plate.

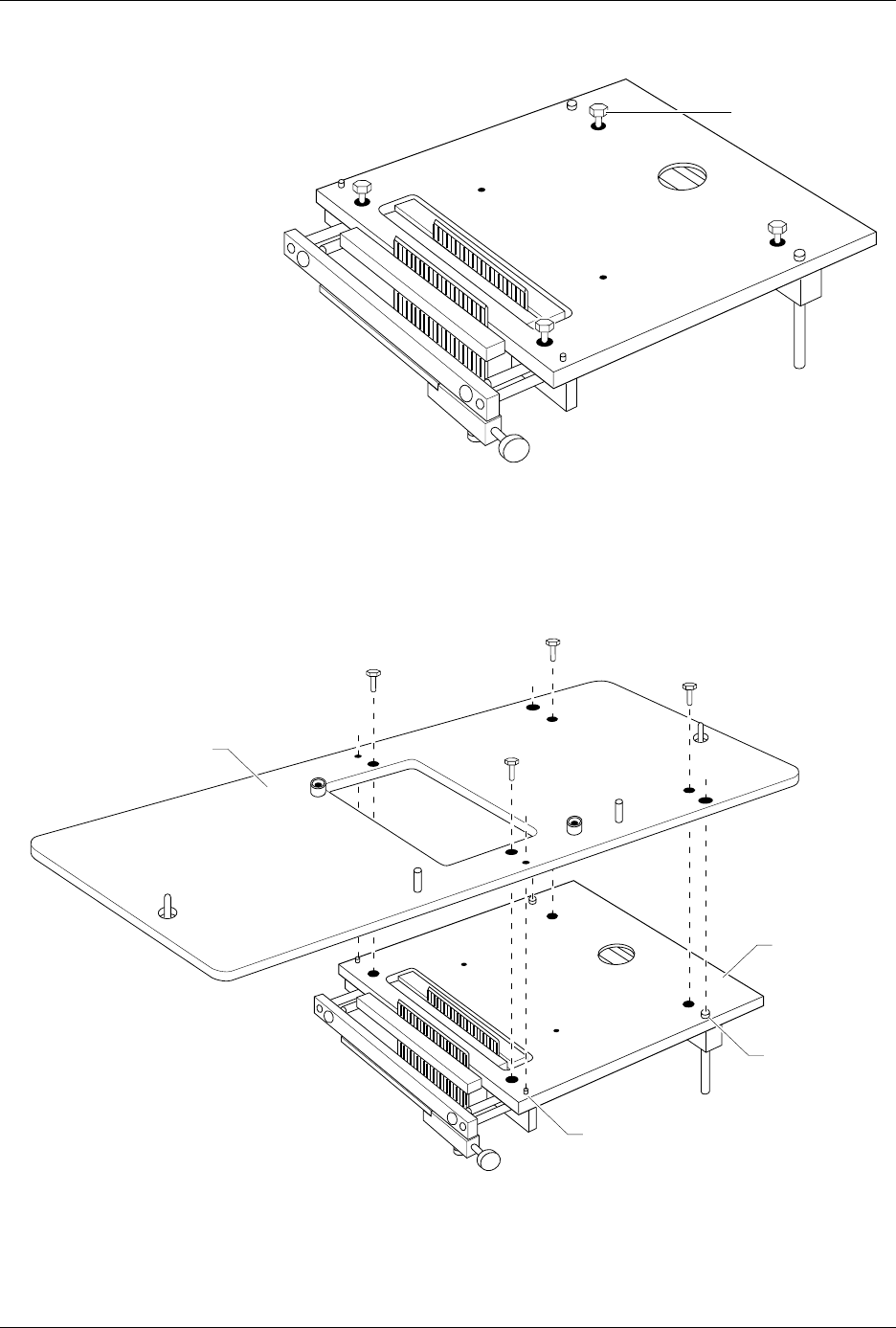

Figure 2-5
Removing Four Hexhead Bolts from
the Contactor Set
Figure 2-6
Attaching the Contactor Set to the Mounting Plate
1347-1
HEX HEAD SCREW
(1 of 4)
1348-1
PIN DRIVER HEAD
MOUNTING PLATE
CONTACTOR
SET
LARGE GUIDE
PIN (1 of 2)
SMALL GUIDE PIN (1 of 2)
Setup and Installation
2-8 AutoSite User Manual
5. Using a 5/32-inch hex driver, secure the contactor set to the pin
driver head mounting plate with the four hex head screws provided.
6. Position the pin driver head mounting plate up to the 2000. Finger
tighten the thumbscrews on the 2000 to secure the pin driver head
mounting plate to the 2000.
CAUTION: Do not touch or damage the gold pins on the contactor set.
7. Using a 5/32-inch hex driver, attach the two mounting brackets to the
pin driver head with the six hex head screws provided. Position the
mounting brackets as shown in Figure 2-8.
Figure 2-7
Attaching the Pin Driver Head
Mounting Plate to the
ProMaster 2000
Figure 2-8
Attaching the Mounting Brackets
to the Pin Driver Head
1346-1
CONTACTOR SET
THUMBSCREWS
1349-1
MOUNTING
BRACKET
(1 of 2)
HEX HEAD SCREW
(1 of 3 per side)
PIN DRIVER HEAD
