Setup and Installation
AutoSite User Manual 2-13
Before You Begin
Depending on when you purchased your ProMaster 3000 (or ProMaster
7000) and AutoSite, you might not have to install AutoSite into your
handler. All new ProMaster 3000 and ProMaster 7000 handler systems
come with the AutoSite programmer installed. If this is the case, skip this
section and continue to the section titled “Connect the Pin Driver Head,”
on page 2-21.
Some older ProMaster 3000 and ProMaster 7000 handlers were sold
without the AutoSite, in which case you have to install the AutoSite
control unit into your handler. In this case, continue with the section
titled “What You Need.”
Note: All directional references—front, back, left, right, up, and down—are as if
you are looking at the front of the handler.
Figure 2-12
Flowchart of the Installation
Process for the ProMaster 3000 or
the ProMaster 7000
1414-1
START
CONTROL
UNIT ATTACHED
TO HANDLER ?
CONVERT
TEST SITE TO
PROGRAMMING
MODULE?
REMOVE
PROGRAMMER SHELF
REROUTE OPTICS
ATTACH CONTROL UNIT
TO HANDLER
DISASSEMBLE
TEST SITE
REMOVE IDENTIFICATION FIN
ATTACH PROGRAMMING
MODULE BLOCK
TO TEST SITE
N
Y
N
Y
ATTACH PROGRAMMING
MODULE TO PIN
DRIVER HEAD
ATTACH PIN DRIVER
HEAD TO HANDLER
FINISH
Setup and Installation
2-14 AutoSite User Manual
What You Need
In addition to the contents of the Installation Kit, you will need the
following tools and equipment to help you install AutoSite in your
handler.
•Programming module
• Grounded wrist strap
• Antistatic workstation
• 5/32-inch hex driver
• 5/64-inch hex driver
• Flat blade screwdriver
• #2 Phillips screwdriver
• Small wire cutters
Remove the
Programmer Shelf
This section describes how to remove the programmer shelf from the
3000. This section does not apply to a 7000. If you are installing AutoSite
into a 7000, skip to the section titled “Reroute the Optics,” on page 2-17.
CAUTION: In this section, you will be working with the programmer
shelf on the 3000. The shelf is supported by an air shock and
can spring up when you turn the knob or when you detach
the shock from the programmer shelf.
Use caution when adjusting the programmer shelf or
working with the air shock.
1. Power down the handler and the programmer.
2. Loosen the knob on the programmer shelf and push the shelf to its
bottom-most position. Tighten the knob to lock the shelf in place.
3. Remove any programmer, such as an AutoSite, from the programmer
shelf in the handler.
4. Remove any tests sites, programming fixtures, or performance
boards from the programming station on the handler.
5. Remove the metal underplate from the 3000 by lifting the underplate
up and sliding it toward you. Discard the metal underplate; you will
not need it later.
6. Loosen the knob on the programmer shelf and raise the shelf to its
topmost position. Tighten the knob to lock the shelf in place.
Setup and Installation
AutoSite User Manual 2-15

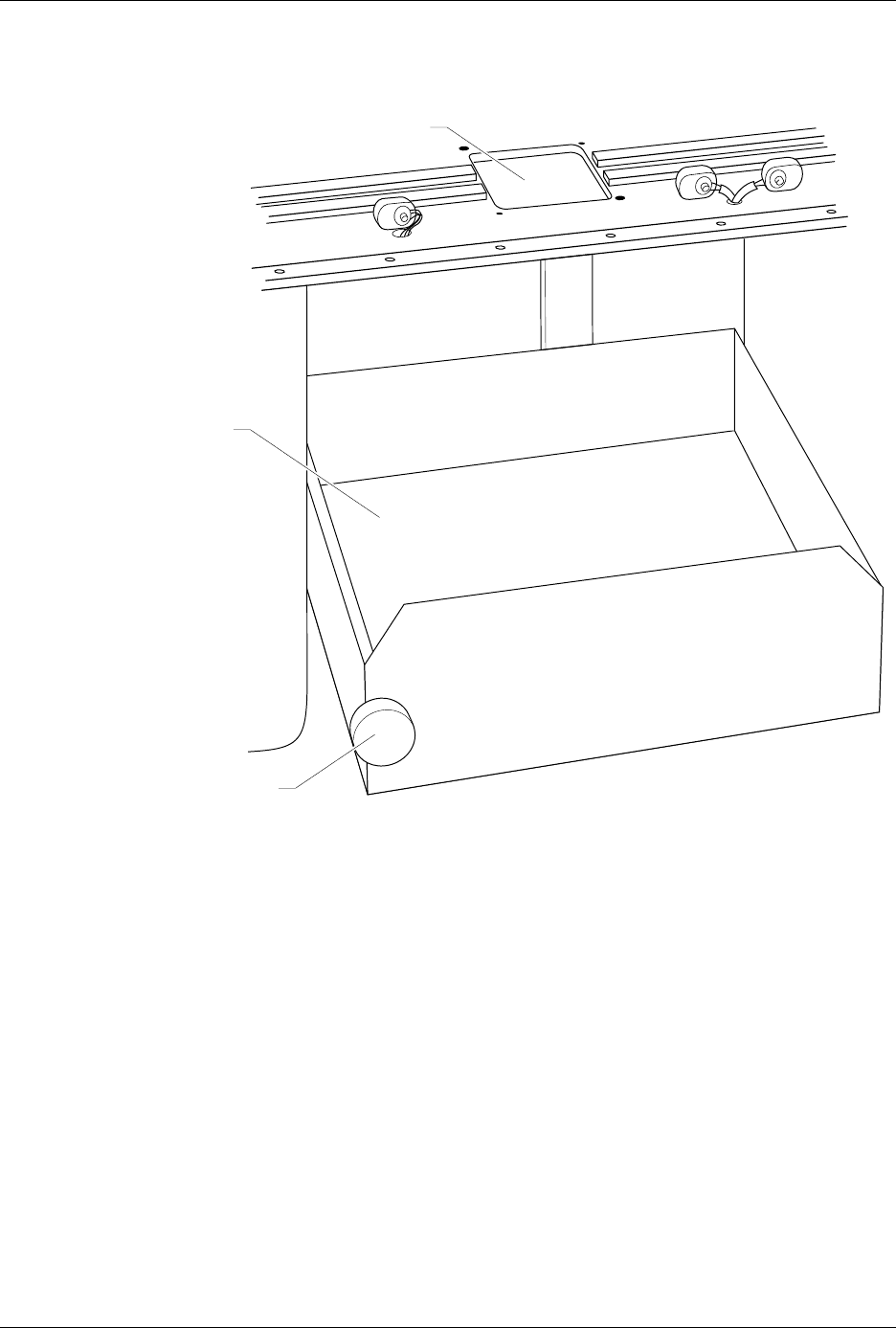

Figure 2-13
Lowering the Programmer Shelf
PROGRAMMING STATION
1407-1
KNOB
PROGRAMMER SHELF
