3 Mechanical Section
3-27

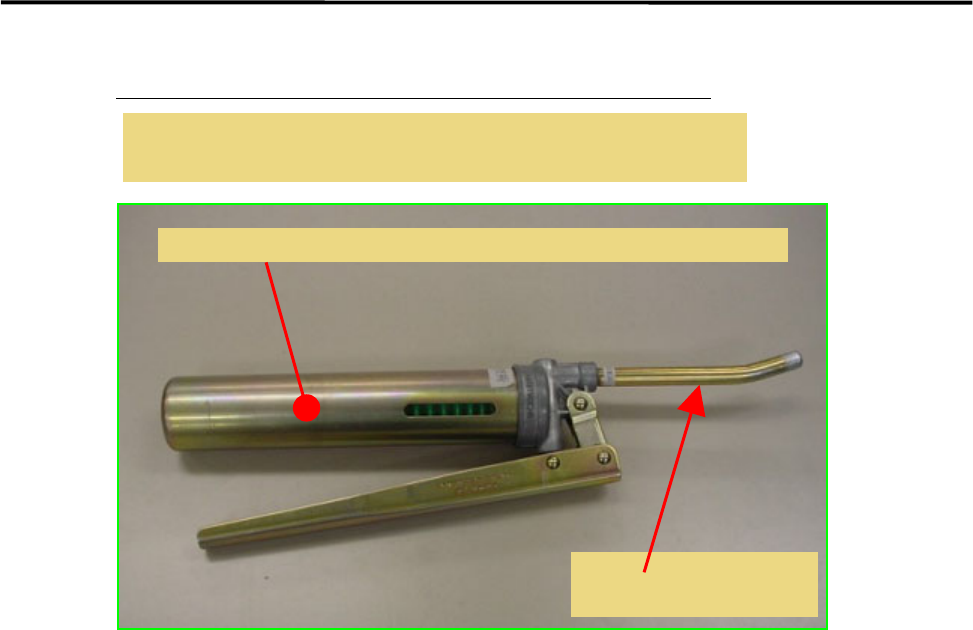

Recommended Grease Gun and Grease for XY Linear Guides
Recommended Grease : THK AFA 70g (LG0-M86A3-000)
THK AFB 70g (LG0-M86A4-000)
Grease Gun set MG70 (with nozzle) : THK LG0-M86A1-000
Recommended Nozzle :
H-shape (attachment nozzle)
3 Mechanical Section
3-28

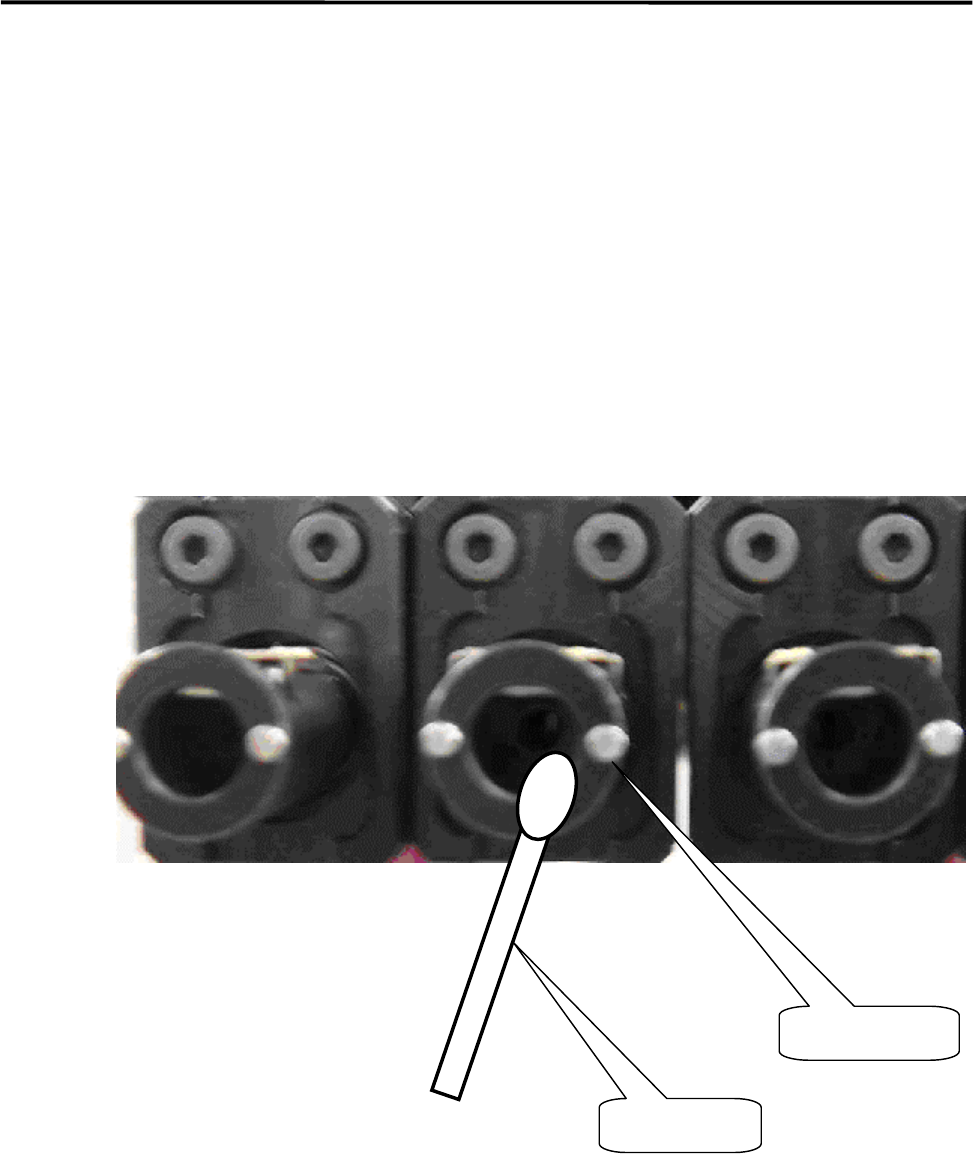

■ Application of grease on a Nozzle Holder
ACTION:
① Rub the inside of the Nozzle Holder with materials like a dry cotton swab to clean out the grime, such
as old grease.
② Use the head vacuum breaker to blow out the dust, such as fibers from a cotton swab.
NOTE: The head vacuum breaker can be executed by clicking the button at required head on the window of Main
Menu > Manual Menu > Actuator > On/Off > Head Vacuum.
③ Apply silicon grease evenly on the new cotton swab and rub the inside of the Nozzle Holder softly and
evenly with it.
④ After grease is applied, insert a nozzle and confirm that the nozzle escaping works smoothly.
Cotton Swab
Nozzle holder
3 Mechanical Section
3-29
Specified Lubricants
■ M7
PART PART NO. GREASE NAME MANUFACTURER
X/Y Axis
Ball screw
K48-M3856-000 GREASE NSK
LG0-M86A3-00 GREASE,AFA THK
X/Y Axis
Linear guide
LG0-M86A4-00 GREASE,AFB THK
Silicone Grease for
Nozzle
LG0-M89AB-00X GREASE,SILICON Three Bond (#1855)
■Grease Gun
Part Name
Part No. Remark
GUN,GREASE W/NOZZLE LG0-M86A1-00 Attached Grease gun and nozzle
NOZZLE* LC8-M86A1-00 Recommended nozzle for XY ball screws
*Higher strength Grease nozzle LC8-M86A1-00 is recommended to lubricate X/Y Ball screw.
NOTE: AFA grease is superior to AFB grease and can be used for all the axes.
NOTE: Order placement for lubricants can be accepted only if the mounter is delivered inside Japan. For locations
overseas, please consultant the agency where you purchased the mounter.
NOTE: Please specify Part No.
to place an order.
