5 Materials
5-4
Replacement Parts
Head Manifold Section
Part Name Part No.
Qty.
3L,S/2L
Remarks
FILTER ELEMENT LC8-M71A9-00X 24/16 Filter Element
AIR FILTER ASSY. LC8-M71A4-00X 24/16 Air Filter Assy.
SILENCER ELEMENT LG0-M71A8-00X 24/16 Silencer Element
GENERATOR,VACUUM LG0-M71A3-00X 24/16 Vacuum Generator
NOTE: “Qty.” indicates the quantity required for each mounter model.
Nozzle Related
Part Name Part No. Qty. Remarks
O RING LC1-M77A5-90X 1
Common for
P005,P006,P013,
P018,P019,P020
RUBB.PAD17 LG0-M77A0-00X 1 Rubber pad for P017
RUBB.PAD18 LG0-M77A1-00X 1 Rubber pad for P018
RUBB.PAD19 LG0-M77A2-00X 1 Rubber pad for P019
RUBB.PAD20 LG0-M77A9-00X 1 Rubber pad for P020
NOTE: “Qty.” indicates the quantity required for each nozzle.
Air Regulator Section
Part Name Part No. Qty. Remarks
FILTER ELEMENT LG0-M86A2-10X 1 For mist separator
Grease
Part Name Part No. Qty. Remarks
GREASE,AFA LG0-M86A3-00X 1 AFA Grease
GREASE,AFB LG0-M86A4-00X 1 AFB Grease
GREASE SILICON LG0-M89AB-00X 1 Silicone Grease
5 Materials
5-5
Conveyor Belt
Part Name Part No. Qty. Remarks
BELT,A LC8-M900T-00X 2 Left
BELT,B LC8-M900U-00X 2 Center
BELT,C LC8-M900V-00X 2 Right
BELT,L LC8-M9505-00X 2
200mm extension conveyor for
left side
M7-3L
BELT,R LC8-M9506-00X 2
200mm extension conveyor for
right side
BELT,A LC8-M9205-00 4 Same for right and left sides
M7-2L
BELT,L LC8-M9505-20X 4 200mm extension at both ends
BELT,1680 LC8-M931F-00X 2 Left
BELT,1090 LC8-M931G-00X 2 Center
BELT,1770 LC8-M931H-00X 2 Right
BELT,L LC8-M9505-50X 2
200mm extension conveyor for
left side
M7-3S
BELT,R LC8-M9506-00X 2
200mm extension conveyor for
right side
Note: Even conveyor flow direction changes, layout of the conveyor belts are the same.
5 Materials
5-6

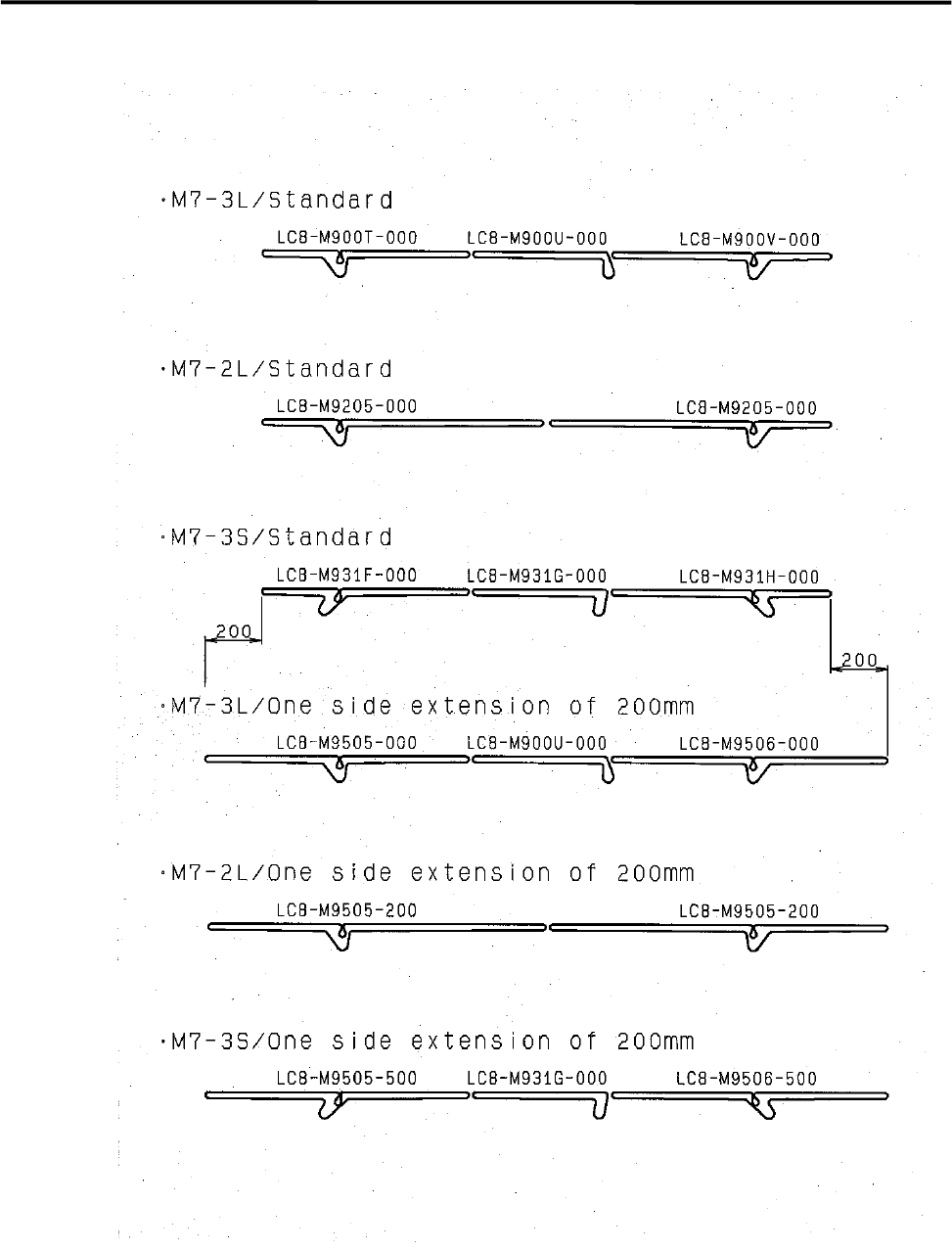

Conveyor belt
