IT Feeder System
1-13
Dummy (or extra) feeder list
If a feeder is installed on the feeder base but it is not programmed as a feeder in use
in the program, it is listed in the dummy list.
Disregarding the error: The equipment is not operated unless feeder errors are resolved.
If the equipment recognizes a feeder error due to damage to feeder ID or other reasons
even though it is not a real situation, the error can not be resolved automatically and the
equipment can not be operated. In this case, disregard the error, then the error check
does not appear for the respective feeder. Select the error feeder to disregard, click on the
right button of the mouse, then the box for feeder number column is checked and the error
is disregarded.
Memo
Even though the Feeder error dialog box is closed, the error status continues. To view the
error, click “Feeder error status” on the MMI Toolbar.
Reference
Feeder error restoration procedure
Empty Feeder
① If an Empty feeder exists, locate it in the error list.
② Find the feeder having the identical part name in the Dummy list.
③ If the feeder exists, move the feeder in the Dummy list to the corresponding
empty slot and mount the feeder.
④ Check that the empty error is cleared.
⑤ Check that the feeder in the Dummy list is removed.
⑥ Confirm that the feeder error does not occur.
Mismatch Feeder Error
① If a Mismatch error feeder exists, locate it in the error list.
② Move the Mismatch error feeder to the unused slot and keep it in the slot.
③ Confirm that the moved feeder is added to the Dummy list.
④ Check if any feeder whose type and part name are identical to the feeder in
the error occurred slot exists.
⑤ If it exists, move it to the empty error slot and mount it.
⑥ If it does not exist, mount a new feeder.
1.4.4.2. Count Warning
If a feeder is programmed as the feeder in use in the PCB program, FIS counts the
remaining components in the feeder. In this case, if FIS is set to generate a part shortage
warning when the part count drops below a specified number, the part shortage warning
dialog box is displayed on the screen automatically and the green icon flashes in [Figure
1-3].
Samsung Intelligent Feeder System

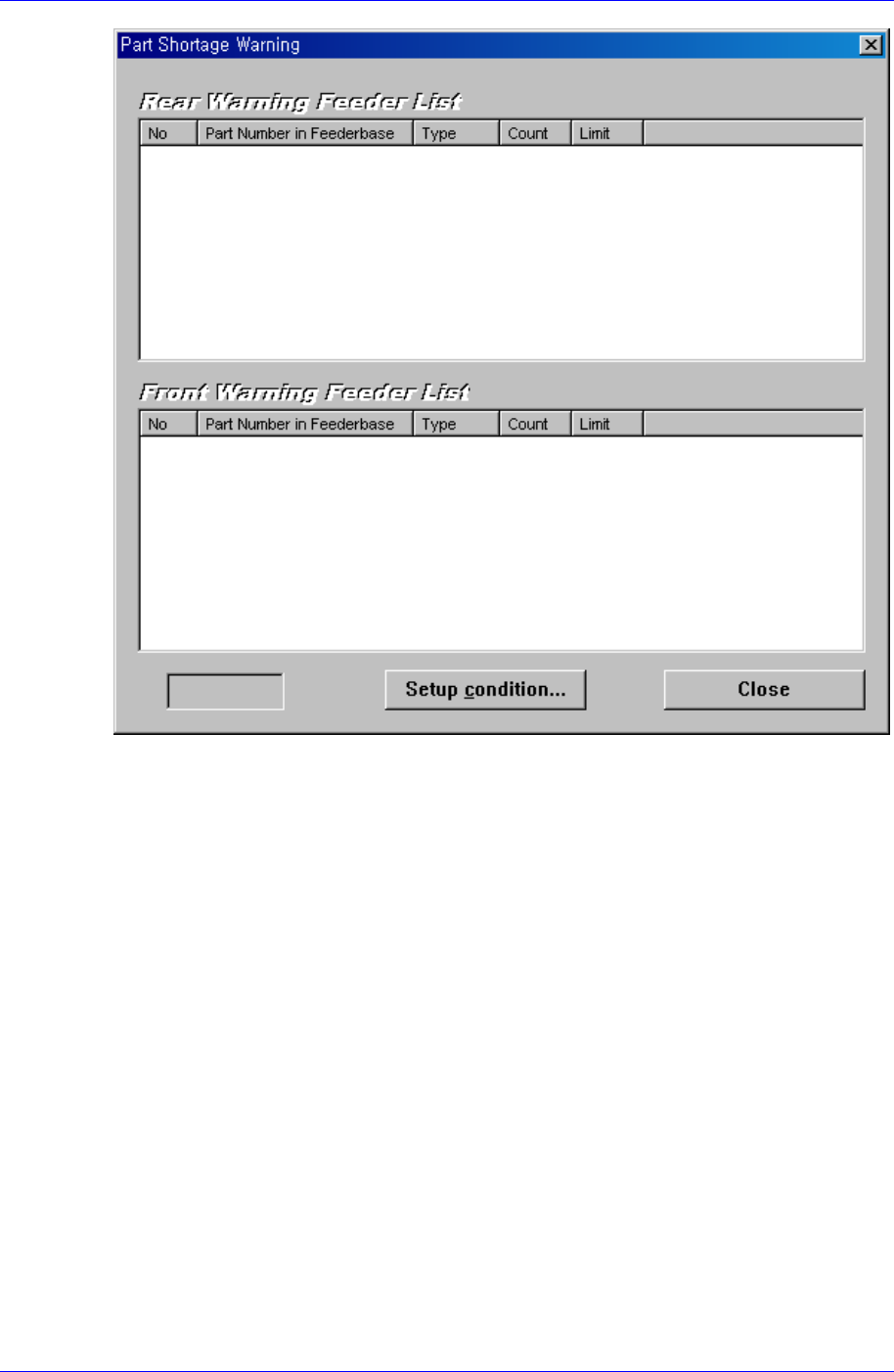

Figure 1-16. Part Shortage Warning dialog box
Even though the dialog box is closed, the information is kept. To display the dialog box
again, click on the Shortage Warning Status on the Toolbar in [Figure 1-3].
<Setup condition…> button
Set the conditions for remaining quantity warning. Figure. 1-17 shows the dialog box
for designating the number of remaining parts at which the warning occurs.
It is identical to the screen where the menu is executed in the following order: <File>
→ <Setup> → <Shortage warning>.
1-14
IT Feeder System
1-15
Figure 1-17. Setup Part Shortage Warning dialog box
<Enable warning> check box
Check whether to use the part short warning or not. When it is checked and the part
count drops below the specified number, a part shortage warning is produced and the
Part Shortage Warning dialog box is displayed on the screen automatically.
<Count Limit Type>Combo button
All by one : Check the remaining quantity by applying the input quantity to all
feeders using the <Limit Part Count> edit box, <Limit Part Count>.
.by PCB : Using the <Limit PCB Count> edit box, check the remaining quantity
by multiplying the input PCB quantity and the needed part quantity.
<Apply now> button: Using the edit box, apply the input value.
<Enable change warning count limit> check
Select the feeder slot separately and input the limit count to be modified in the <Limit
count> edit box. Then apply the input value by clicking the <Change> button.
※The feeder limit count in the corresponding slots is excluded in applying the
count change by ‘All by one’ and ‘by PCB’.
<Change> button
The feeder limit count setup condition for individual feeders is applied by the
<Change> button.
1.4.4.3. Message
Selecting the submenu <Message> from the menu (<View> → <Message>) will display
the screen as indicated in Figure. 1-18, where the warning message is indicated.
