Samsung Intelligent Feeder System 4.4. T echnical Draw ings & PartList 4.4.1. IT Feeder 1 Ass’y 4-4

Specifications And Technical Drawing & PartList

FEEDER

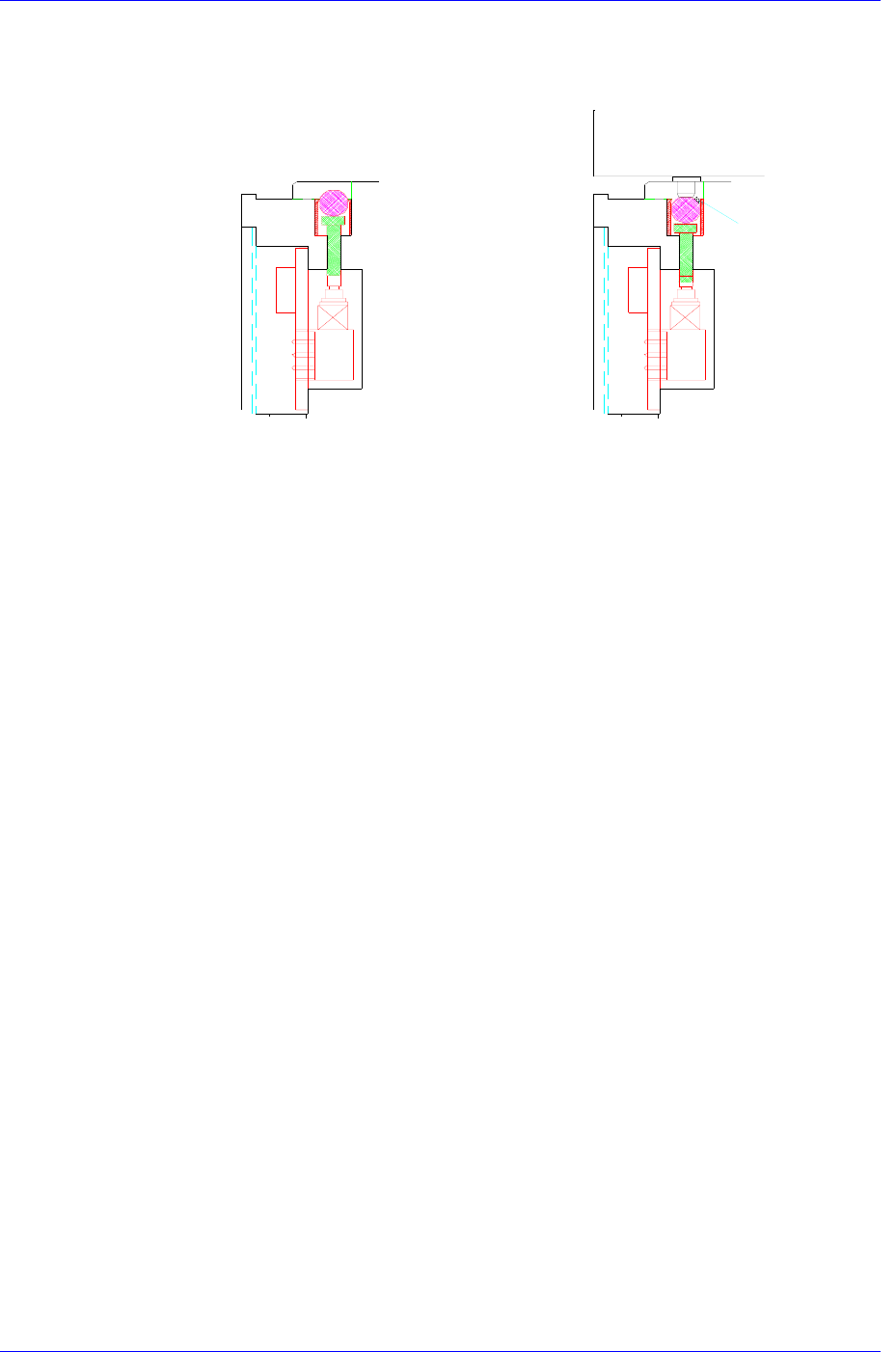

CHIP or another

material

Before installing the

Feeder

After installing the

Feeder

4-3

Samsung Intelligent Feeder System

4.4. Technical Drawings & PartList

4.4.1. IT Feeder 1 Ass’y

4-4

Specifications And Technical Drawing & PartList

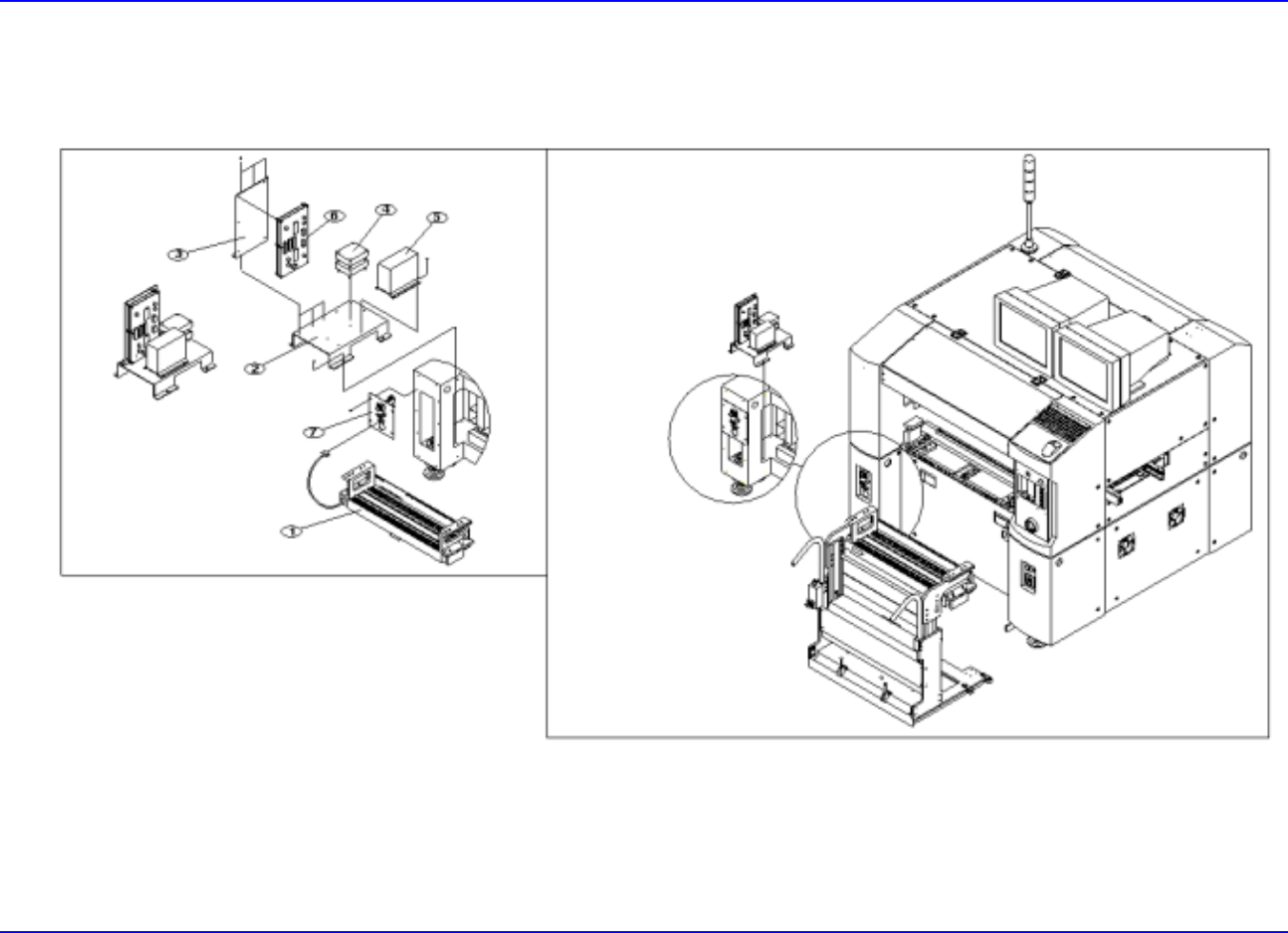

IQ IT Feeder 1 Ass'y

NO.󰚟 PART󰚟NO.󰚟 PART󰚟NAME󰚟 Q'TY󰚟 󰚟 󰚟TYPE REMARK

FRONT REAR

1󰚟 J9057121E󰚟 IQ-FEEDER󰚟BASE󰚟ASSY󰚟 1󰚟 J9057121E󰚟 J9057121E󰚟 IT󰚟Feeder󰚟2󰚟Ass’y󰚟

2󰚟 J7057152A󰚟 IQ󰚟BOARD󰚟BRACKET1󰚟 1󰚟 J7057152A󰚟 󰚟

3󰚟 J7057153A󰚟 IQ󰚟BOARD󰚟BRACKET2󰚟 1󰚟 J7057153A󰚟 󰚟

4󰚟 J3152007A󰚟 STEP󰚟MOTOR󰚟DRIVER󰚟󰚟 1󰚟 PMD03C󰚟 󰚟

5󰚟 󰚟 󰚟 󰚟 󰚟 󰚟J4402015A POWER󰚟SUPPLY 1 DH-M80B

6󰚟 J9060131B󰚟 PCB󰚟ASSY󰚟 1󰚟 ITIF󰚟BOARD󰚟ASSY󰚟 󰚟

7󰚟 J7052579C󰚟 PRESSURE󰚟GAGE󰚟PANEL󰚟 1󰚟 J7052579C󰚟 J7070142C󰚟 󰚟

󰚟 󰚟 󰚟 󰚟 󰚟 󰚟 󰚟
