Samsung Intelligent Feeder System
<Find> button
Finds the content entered in PartName from the registered reels and displays the
result in the list box. Extended search is possible.
<All> button
Displays all registered reels in the list box.
<Clear> button
Deletes all current input information (PartName, Component Count, and Description).
<Pint Option> option button
Selects whether to register a Reel Code newly and print it automatically. If Manual is
selected, it is not printed but it can be selected and printed later.
<Reel Create and Print> button
Registers a new Part Reel with the input content and creates a new Reel Code.
The Reel Code creation method is set so that a unique code is created with a
combination of date and time.
<Excel> button
Save the inquired list as an Excel(csv) file.
<Reel Code> edit box
Displays the newly registered code. If there are more than one Part Reels, only the
first code is displayed.
Result displaying list box
PartName, ReelCode, Count, Registered Date, Last Updated Date, and Description
are displayed in the list box. When a Reel is newly created or searched, the respective
reel is displayed in the window.
Memo
To view data sorted by item, click the desired item on the top of the list box(ex. PartName
or Registered Date). The data is automatically sorted by respective item and displayed.
When certain content in the list box is selected, it is displayed in the input window at
the top. This can be used to create a new Reel Code with the selected Part Name and
other information or to reprint a Reel Code when it can not be read by a bar code
reader. The total numbers of reels and components are displayed at the bottom.
<Total Reel Count> edit box
Displays the number of reels searched in the list box.
<Total Comp Count> edit box
Displays the total number of parts searched in the list box. If this is utilized well, the
number of parts currently in stock can be checked.
<RePrint> button
When a bar code(Reel Code) can not be read by a bar code reader, use this to reprint
it without creating a new one. To reprint a bar code, be sure to remove the previous
bar code entirely and reprint one.
2-8
Part Station
2-9

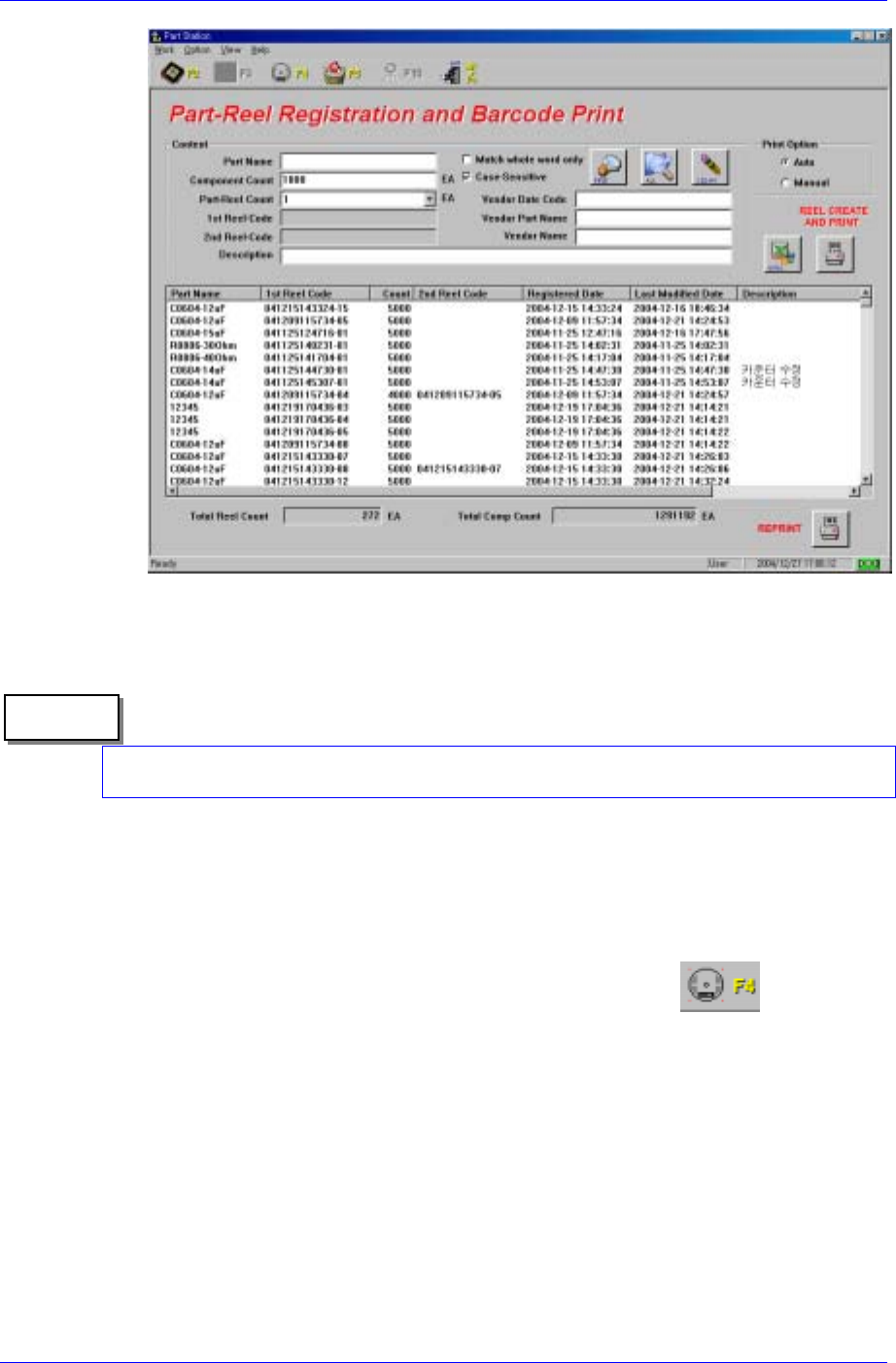

Figure 2-7.Part Reel Registration screen
Memo
When reprinting the barcode, ensure that more than two identical barcodes do not exist. If
an identical barcode is attached to a different part reel, a system error may occur.
2.3.3. Part Reel Management [F4]
Part Reel Management allows the user to search registered Reel data with various
conditions or to modify it.
Select Part Reel Management from the Main menu or select the
button on the
tool bar. Or press Alt+W on the keyboard, then select the M key or press the [F4] key.
As can be seen in Figure. 2-8, the screen consists of the top window, list box, and the
bottom window that shows search result. In the top window, there are edit boxes to
register a Part Reel.
Samsung Intelligent Feeder System

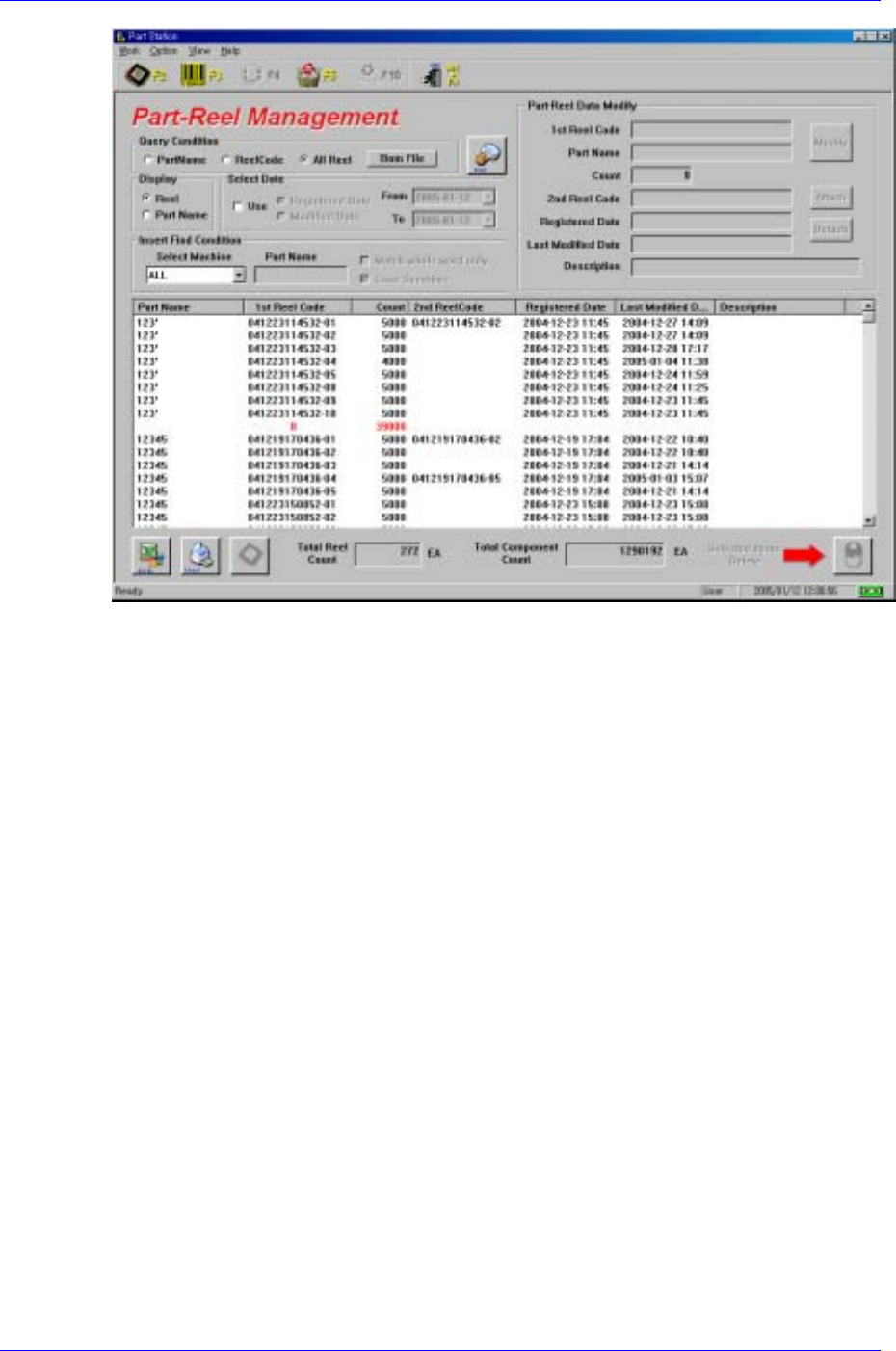

Figure 2-8. Part Reel Management dialog box
<Query Condition> option button
Three search conditions are available; PartName, ReelCode, ReelAll and Bom File.
PartName search
When PartName is selected, the <PartName> edit box underneath is activated.
Enter the PartName here and press the Find button, then search result is
displayed in the list box in the middle.
ReelCode search
When searching by ReelCode, the <ReelCode> edit box in the Part-Reel Data
Modify group on the top left of the screen is activated as shown in the figure
below (Figure. 2-9), and the cursor is ready for input. At this time, the barcode
(ReelCode) attached on the Reel is read by the bar code scanner (Reader), the
ReelCode is displayed in the <ReelCode> edit box and the data on the respective
reel is displayed automatically. It is automatically displayed in the list box below
also. When searching is completed normally and the result is displayed, the
<Count> and <Description> edit boxes are activated automatically and are ready
for modification. Modifying the data and pressing the <Modify> button updates
the reel data with the modified data. At this time, the ReelCode should not be
modified.
