SIPL ACE HF-Ser ies Replacing the Gantry [030 06781-xx ] Serv ice Gan tri es 3 Copy ri ght © 200 4 S ie m ens 0019 43 07- 02 Is su e 1 1/ 2004 3-1 3 Se rvic e Wo rk DANGER Please observe the saf ety instr uc tions in the…
2
Safety
What to do Before Starting Servicing Work...
SIPLACE HF-Series
Safety Instructions for the Compressed Air Supply
2-8
00194307-02 Issue 11/2004 Copyright © 2004 Siemens
WARNING
To avoid damaging the collect+place head, ALWAYS observe the following points when moving the gantry:
NEVER move the gantry by pushing with your hands against the collect+place head.
NEVER push the gantry while the Z-axis is lowered.
ALWAYS take hold of the X-axis base with your hands to move the gantry.
SIPLACE HF-Series
Replacing the Gantry [03006781-xx]
Service
Gantries
3
Copyright © 2004 Siemens 00194307-02 Issue 11/2004 3-1
3 Service Work
DANGER
Please observe the safety instructions in the Operating Manual for all service work!
See
What to do Before Starting Servicing Work...:
Page 2-6
3.1 Gantries
See
Safety Instructions for Working with Strong Magnetic Fields:
Page 2-1
3.1.1 Replacing the Gantry [03006781-xx]
Tools
Special torque wrench („Bruchsal version“)
Blue covers [00355787-xx]
Preparation
Depending upon the configuration of the machine, you will need to remove the relevant modules, covers and cover plates
before you can dismantle the gantry.
3
Service
Gantries
SIPLACE HF-Series
Replacing the Gantry [03006781-xx]
3-2
00194307-02 Issue 11/2004 Copyright © 2004 Siemens
5
5
6
1 4
3
2

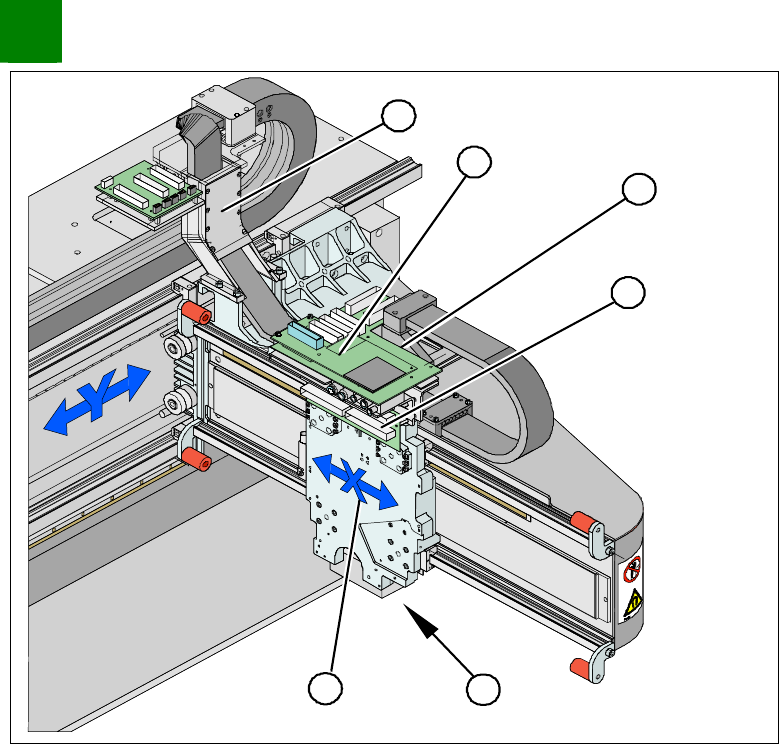

1. X-drive (primary) with head mount
2. X-mount with trailing cable
3. Head adapter board
4. Mount with PCB camera
5. Head board
6. Trailing cable console
Dismantle the placement head.
Remove the head adapter board (3). The x-mount fixtures are
now (2) accessible.
Unplug the following cables from the head board (5) and
remove them from the x-mount (2):
X motor cable
X-axis scanner head
Temperature sensor (if supplied).
