SIPLACE HF-Series
Replacing the Guide Slide of the Y-Axis [03020303-xx]
3-40
00194307-02 Issue 11/2004 Copyright © 2004 Siemens

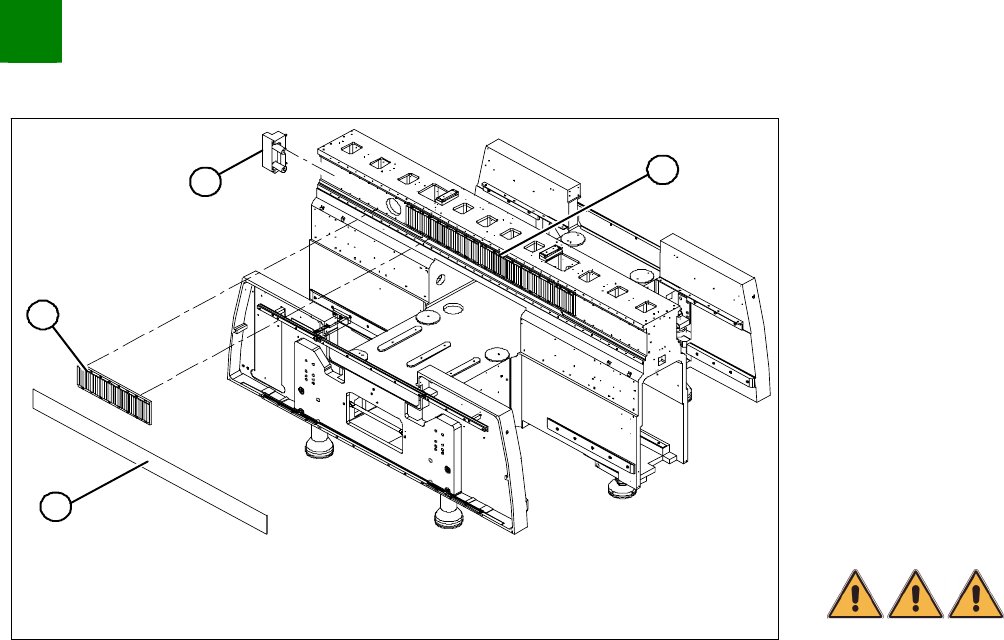

Dismantling the Magnet Cover and the Magnetic Strip
1
4
3
2
Lift the magnet cover plate (1) at the side with the long
magnetic strip and then fix the end of the cover plate to the X
gantry with adhesive tape. You can now access the long
magnetic strip.
Lever up the blue covers and loosen the 16 screws fastening
the long magnetic strip (4).
NOTE
If the blue cover is damaged (kinks, cracks etc.), replace it during
reinstallation. White or pale patches in the plastic indicate areas of
damage.
Remove the long magnetic strip (4).
DANGER
Please take special care when working in the vicinity of the powerful
magnetic fields produced by the magnetic strip. Risk of serious
injuries through trapping limbs.
Close the magnet cover plate and fix it to the machine base.
Remove the buffer (3) from the side with the long magnetic strip
(4).
Remove the cover plate from the central cover and then the
black plastic covers on the guide rails.
SIPLACE HF-Series
Replacing the Guide Slide of the Y-Axis [03020303-xx]
Service
Gantries
3
Copyright © 2004 Siemens 00194307-02 Issue 11/2004 3-41
Push the gantry over to where the dismantled magnetic strip
was installed (out of the installed magnetic strip's area of
influence).
Fasten the gantry with the 4 transportation locks to prevent it
being accidentally moved.
Preparing the Guide Slide
3
3
3
1
3
2

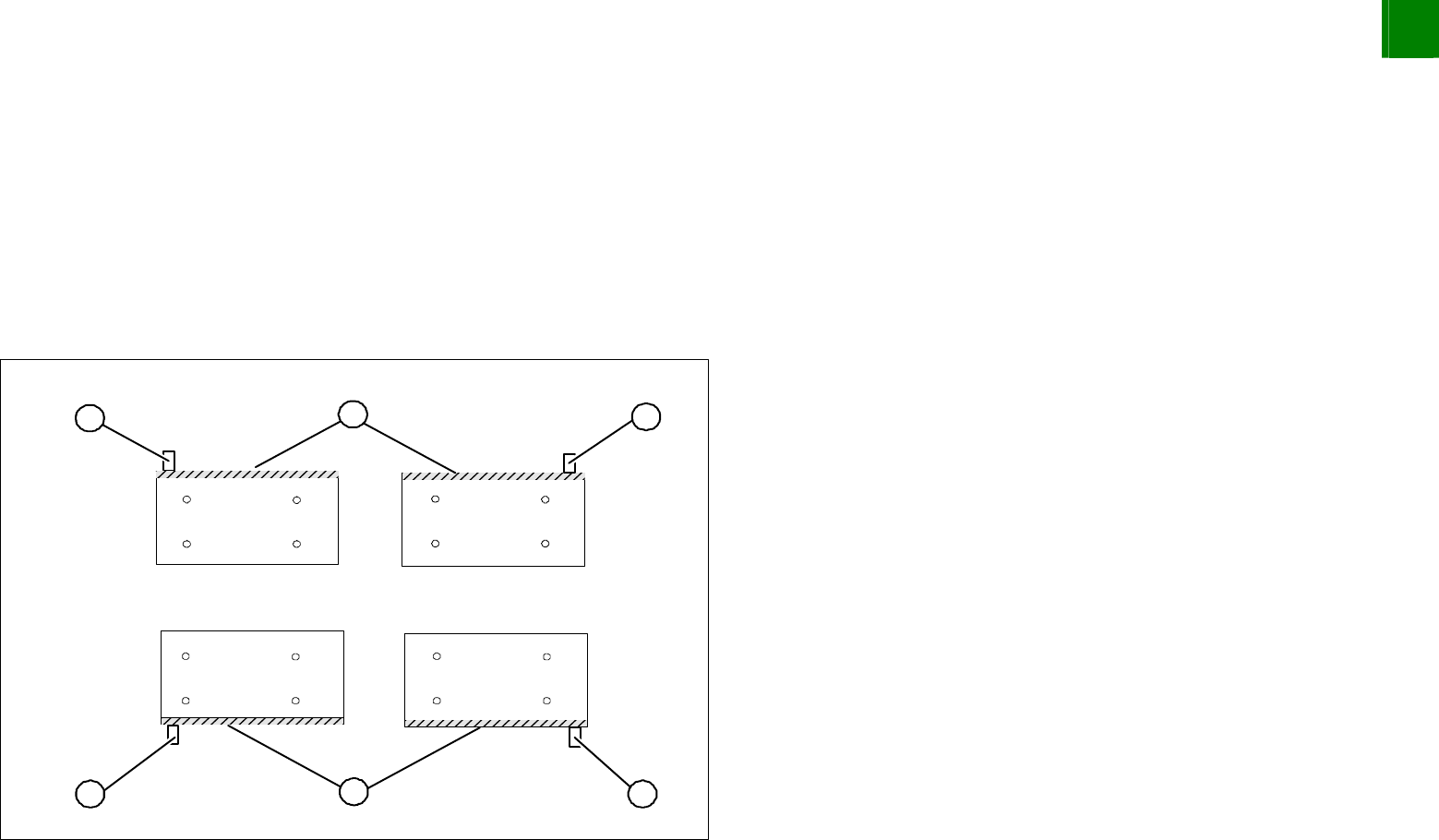

The lubrication nipple needs to be positioned correctly in the new
guide slide. Make sure the contact surface of the guide slide is
correctly positioned.
1. Contact surface of the top guide slide
2. Contact surface of the bottom guide slide
3. Lubrication nipple
Remove the appropriate grub screw and screw the new
lubrication nipple into the correct position.
3
Service
Gantries
SIPLACE HF-Series
Replacing the Guide Slide of the Y-Axis [03020303-xx]
3-42
00194307-02 Issue 11/2004 Copyright © 2004 Siemens
Removal/Installation
NOTE: Replace the guide slides one after the other.
Undo the screws fastening the first guide slide. Please note
that the screws are of different lengths. These will need to be
correctly replaced later.
Pull the old guide slide out. Make sure that no balls can fall out.
Clean the guide screws with a lint-free cloth and a little ethanol.
NOTE:
A threading tool is integrated into the guide slide, to prevent the balls
from falling out.
Correctly position the guide slide on the guide rails. Make sure
that the lip seal runs in the rails.
Push the guide slide and while doing so, pull the threading tool
out towards the back. Make sure that no balls can fall out.
Wipe any leaking oil away with a lint-free cloth.
Loosely screw in the two upper screws and then the lower
screws. Make sure you use the correct screws (long screws for
the bottom and short ones for the top)
TIP:
Use a screw holder to help you insert the screws.
Tighten the screws crosswise with a torque wrench (9.5 N).
Install the other 3 guide slides in the same manner.
