Service
Gantries
SIPLACE HF-Series
Replacing the Gantry [03006781-xx]
3-6
00194307-02 Issue 11/2004 Copyright © 2004 Siemens
Disassembly
1
1
1
1
2

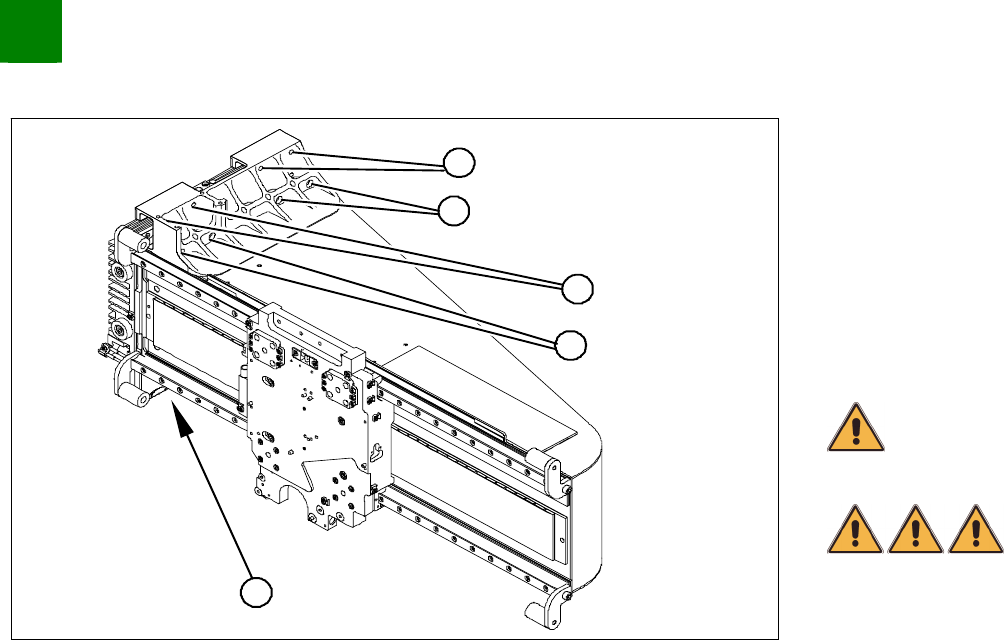

1. 8 fastening screws at the top (M6 x 14)
2. 8 fastening screws at the bottom (M6 x 22)
First remove 14 of the 16 screws (6 from the top and 8 from the
bottom).
Please note that the screws are of different lengths. Mark the
positions of each screw to ensure that they are correctly
replaced after service work.
CAUTION
The gantry is heavy (approx.37 kg).
DANGER
Please take special care when working in the vicinity of the powerful
magnetic fields produced by the X-axis magnetic strip. Risk of
serious injuries through trapping limbs.
Enlist the help of a second strong person.
Stand firmly next to the gantry and hold it with both hands, while
the other person removes the remaining two screws.
Lift the gantry off the guide slide and carry it out of the machine.
SIPLACE HF-Series
Replacing the Gantry [03006781-xx]
Service
Gantries
3
Copyright © 2004 Siemens 00194307-02 Issue 11/2004 3-7
Installation
2
2
1
2
Check whether the holes (4 x M3) for the trailing cable pressure
plates (1) have been properly drilled through on the new gantry.
If not, re-cut the thread with an M3 screw tap.
CAUTION
Take care not to damage the surface of the gantry during drilling.
Carefully rub the contact surfaces (2) of the new gantry with a
dressing stone (oil stone) and wipe clean with a cloth and
ethanol.
3
Service
Gantries
SIPLACE HF-Series
Replacing the Gantry [03006781-xx]
3-8
00194307-02 Issue 11/2004 Copyright © 2004 Siemens
1
3
2
Carefully rub the following contact surfaces with a dressing
stone (oil stone) and wipe clean with a cloth and ethanol.
1. Magnet support
2. Contact surfaces of the 4 guide slides
3. Contact edges of the 4 guide slides
Enlist the help of a second strong person. Lift the gantry up to
the guide slides and secure the gantry at the top with two
screws (M4 x 14).
Then loosely screw in the remaining screws. Observe the
correct screw lengths.
