SIPLACE HF-Series
Replacing the Trailing Cable [03013940-xx]
3-14
00194307-02 Issue 11/2004 Copyright © 2004 Siemens
Disassembly
3
3
4
5
1
2

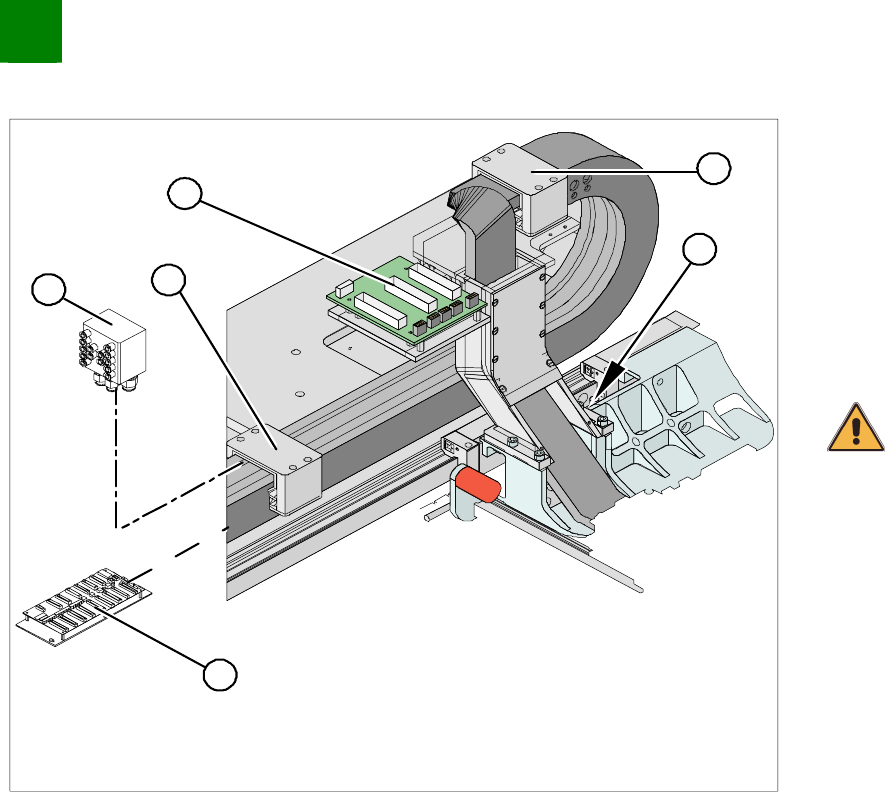

Disconnect the flat ribbon cable from the trailing unit interface
gantry (1). Take care not to lose the brackets for the plug-and-
socket connections. They could fall out and be lost.
Remove cable ties where necessary.
Remove the cover from the gantry distributor (5).
Undo the screws fastening the gantry distributor (5).
Remove all compressed air hoses from the gantry distributor.
CAUTION
Note the order in which the terminal connections are arranged. You
will need this sequence later, for reassembly purposes.
NOTE
Now reconnect the gantry distributor to the new trailing cable and
install the distributor in the machine..
Secure the end of the trailing cable (with cable ties) in the
machine to prevent it hanging loosely and damaging other
machine components.
SIPLACE HF-Series
Replacing the Trailing Cable [03013940-xx]
Service
Gantries
3
Copyright © 2004 Siemens 00194307-02 Issue 11/2004 3-15
Remove the necessary cable ties at the gantry interface (2) and
disconnect the flat ribbon cable.
Disconnect the motor, proximity switches, read head and
temperature sensor cables from the gantry interface (2).
NOTE
The gantry interface board is installed on the cable clamp of the new
trailing cable.
Remove the cooling tubes (4) from the Y-axis motor.
Undo the screws fastening the pressure plates (3) at the power
track chain. Please note that the screws have been secured
with loctite.
NOTE
Only undo the fastening screws. The clamps for the flat ribbon cable
remain in place.
3
Service
Gantries
SIPLACE HF-Series
Replacing the Trailing Cable [03013940-xx]
3-16
00194307-02 Issue 11/2004 Copyright © 2004 Siemens
5
5
1
4
3
2
Disconnect the flat ribbon cable from the head board (1).
Undo the screws fastening the pressure plate (3) to the head
mount and the two screws on the gantry (5).
NOTE
Only undo the fastening screws. The clamps for the flat ribbon cable
remain in place.
Remove the head board (1). This provides access to the
pneumatic distributor (2) below.
NOTE
Mark the installation position of the contact disks and spacer bolts
and take care not to lose them. These will need to be correctly
replaced later.
Remove the hoses from the pneumatic distributor (2).
WARNING
Risk of injury to hands. Press the lock in with a suitable tool and
extract the hose out with hose pliers.
TIP
Cut the hoses with wire cutters and then dismantle the
pneumatic distributor. It is easier to disconnect the hoses when
they are no longer installed.
