3.6 System time (only OIS client)

The OIS operating data is stored using the appropriate station's system time. The SIS operating

data are stored with the server system time. Therefore, it is important that the system time on all

station computers is synchronized to allow the operating data to be evaluated correctly. To do this,

you must install a time server client on each machine.

SIPLACE Explorer also requires the system time of the OIS and SIS operating data to be

synchronized.

NOTICE

► Install the current version of TimeSync to synchronize the system time.

TimeSync is not included in the SIPLACE OIS software package.

TimeSync is provided on the Support Media DVD. In the software guide, item no.

[00194669-xx] you find detailed information for the installation of TimeSync.

Additionally, TimeSync is also provided on the station software DVD.

SIPLACE OIS V12.1 / Installation Manual Ausgabe 05/2015 Edition

3.7 Identify Station (only OIS client)

For a station to be monitored, it must be identified.

For a station with station software version 70x, the station identification is not necessary.

► Select the Station identification item from the Options menu.

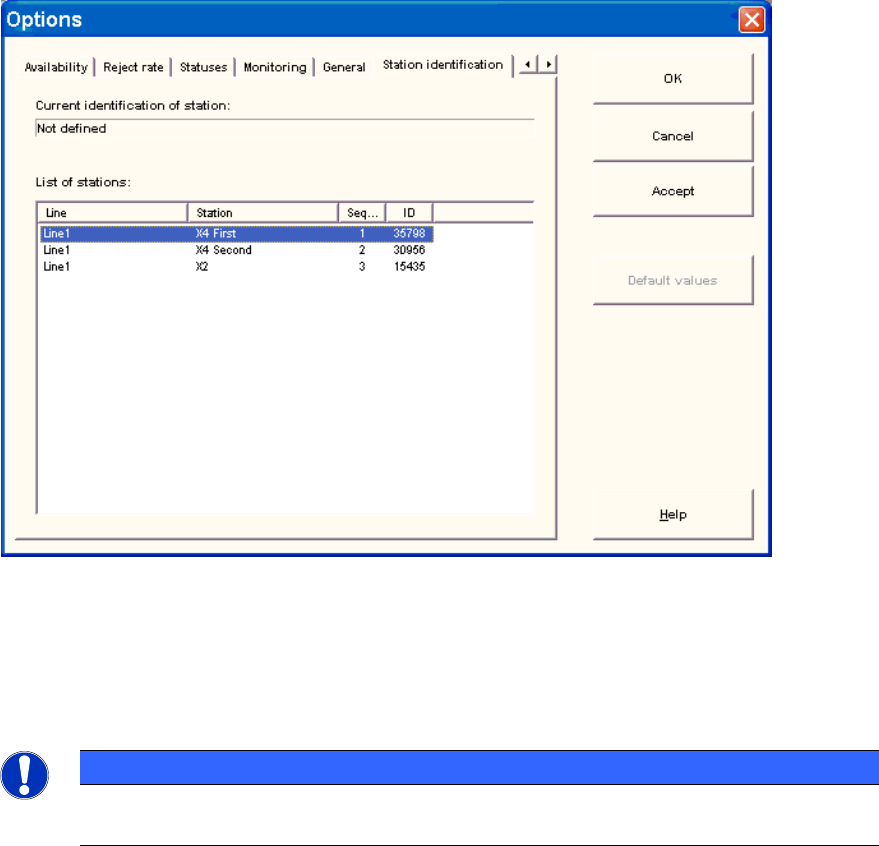

Figure 3-38: Identifying station

► Select the appropriate station in the OIS Client from the list.

► Double-click the station to identify it.

► Close the dialog by clicking OK.

NOTICE

To select the station, the line configuration must be created first on the OIS Server using

OIS LineConfig, see the Administration Guide, item no. [00197620-xx].

SIPLACE OIS V12.1 / Installation Manual Ausgabe 05/2015 Edition

4 Maintenance of the OIS and SIS Databases

For more details, please refer to the "Database Maintenance" section in "SIPLACE / OIS

Databases Interface Description", item no: [00197621-xx].

4.1 Automatic Maintenance and Reorganization

The OIS and SIS databases have stored procedures that remove old data from the databases

regularly.

However, this may lead to fragmented database indexes and distorted statistics. Thus, indexes and

statistics will be reorganized automatically at regular intervals.

NOTICE

SIPLACE OIS V10.x / V11.x – periodic manual maintenance required!

If these versions are used, the OIS database should be manually maintained bimonthly

to avoid performance losses in the database queries.
