Installation of SQL 2005 Express Edition 02/2011 US
The following dialog appears:

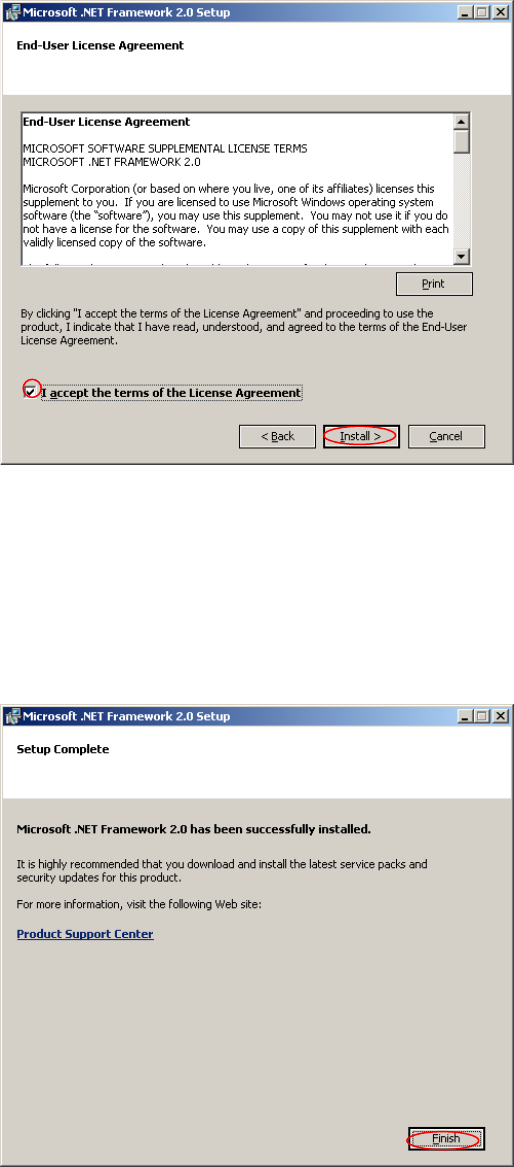

Fig. 3-4: .Net Framework 2.0 EULA dialog
→ Read the EULA.
→ Activate the option “I accept the terms of the License Agreement”
→ Click the Install > button.
Wait until the .Net Framework setup completes. The following dialog appears:
Fig. 3-5: .Net Framework 2.0 Setup complete dialog
→ Click the Finish button.
9 / 54
Installation of SQL 2005 Express Edition 02/2011 US
3.1.2 Installation of .Windows Installer 3.1
→ Insert the SIPLACE Net Support Media into your drive.
The following dialog appears:

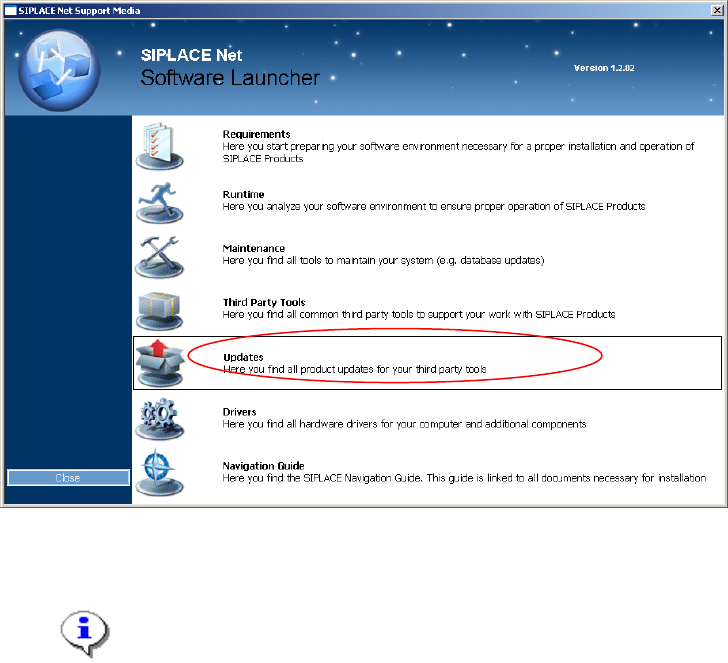

Fig. 3-6: Support Media Software Launcher
Note:
If the dialog does not appear start your Windows Explorer, browse to the file
autorun.cmd on the DVD and double-click it.
→ Select “Updates”.
10 / 54
Installation of SQL 2005 Express Edition 02/2011 US
An Explorer Window appears.
→ Navigate to the folder <DRIVE>:\UPDATES\WINDOWS INSTALLER\3.1.

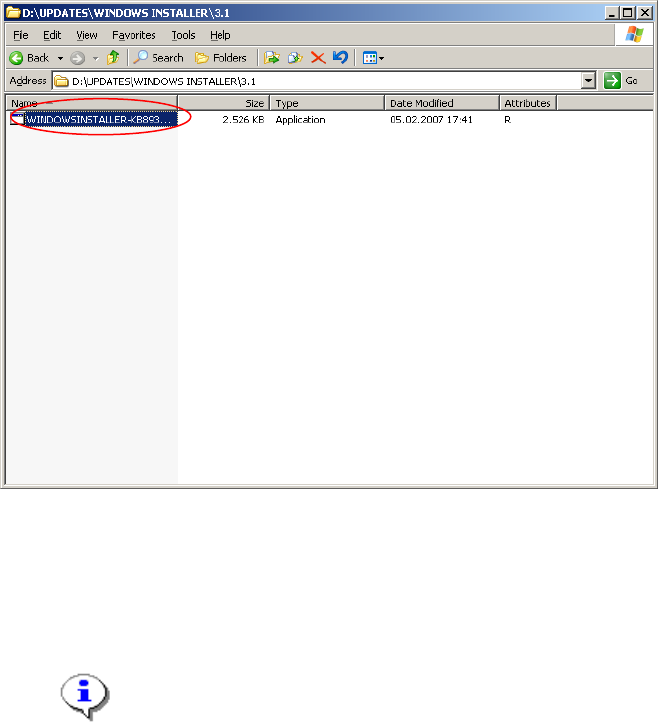

Fig. 3-7: Windows Installer 3.1 Update on Support Media
→ Double-click WINDOWSINSTALLER-KB893803-V2-X86.EXE in the folder
<DRIVE>:\UPDATES\WINDOWS INSTALLER\3.1
Note:
This setup package may be used for fresh installation or update of Windows
Installer.
After a few seconds the following window appears:
11 / 54
