Installation of SQL 2005 Express Edition 02/2011 US After connecting successful ly, the following dialog appears: 47 / 54 Fig. 3-29: SQL Server Management Console → Right- click on your server con n ection on the left si…
Installation of SQL 2005 Express Edition 02/2011 US
Fig. 3-28: The "Connect to Server" dialog box of Management Studio
→ Select your Server- and Instance name and specify the Windows Authentication.
→ Click the Connect button
46 / 54
Installation of SQL 2005 Express Edition 02/2011 US
After connecting successfully, the following dialog appears:
47 / 54
Fig. 3-29: SQL Server Management Console
→ Right- click on your server connection on the left side and select Properties
2
Fig. 3-30: select Server connection properties
Installation of SQL 2005 Express Edition 02/2011 US
The following dialog appears:
48 / 54

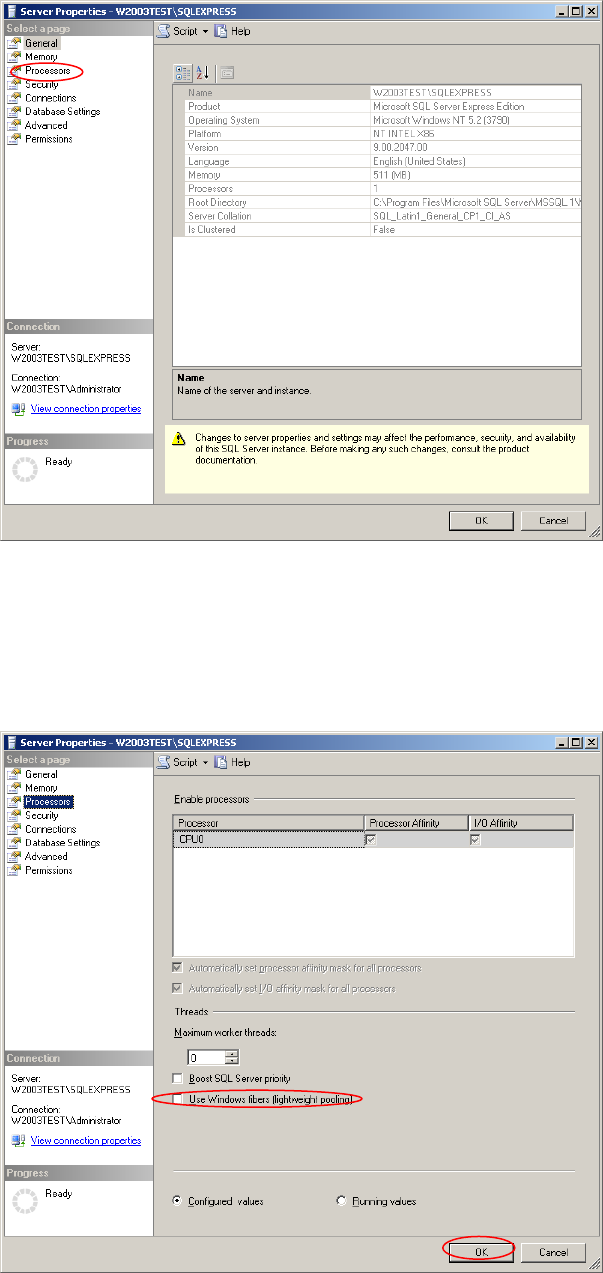

Fig. 3-31: Server connection properties - General
→ Select the Processors option- page on the left side
The following window appears:
