Electrical sc hematic Issue 2: July 2007
Pneumatics Tasks
•
Adjust mains input within tolerance
•
Replace a solenoid valve
Issue 2: July 2007
•
Replace a solenoid valve
•
Manually test the functionality of all
pneumatic solenoids
Objective 18: Complete activities in your workbook

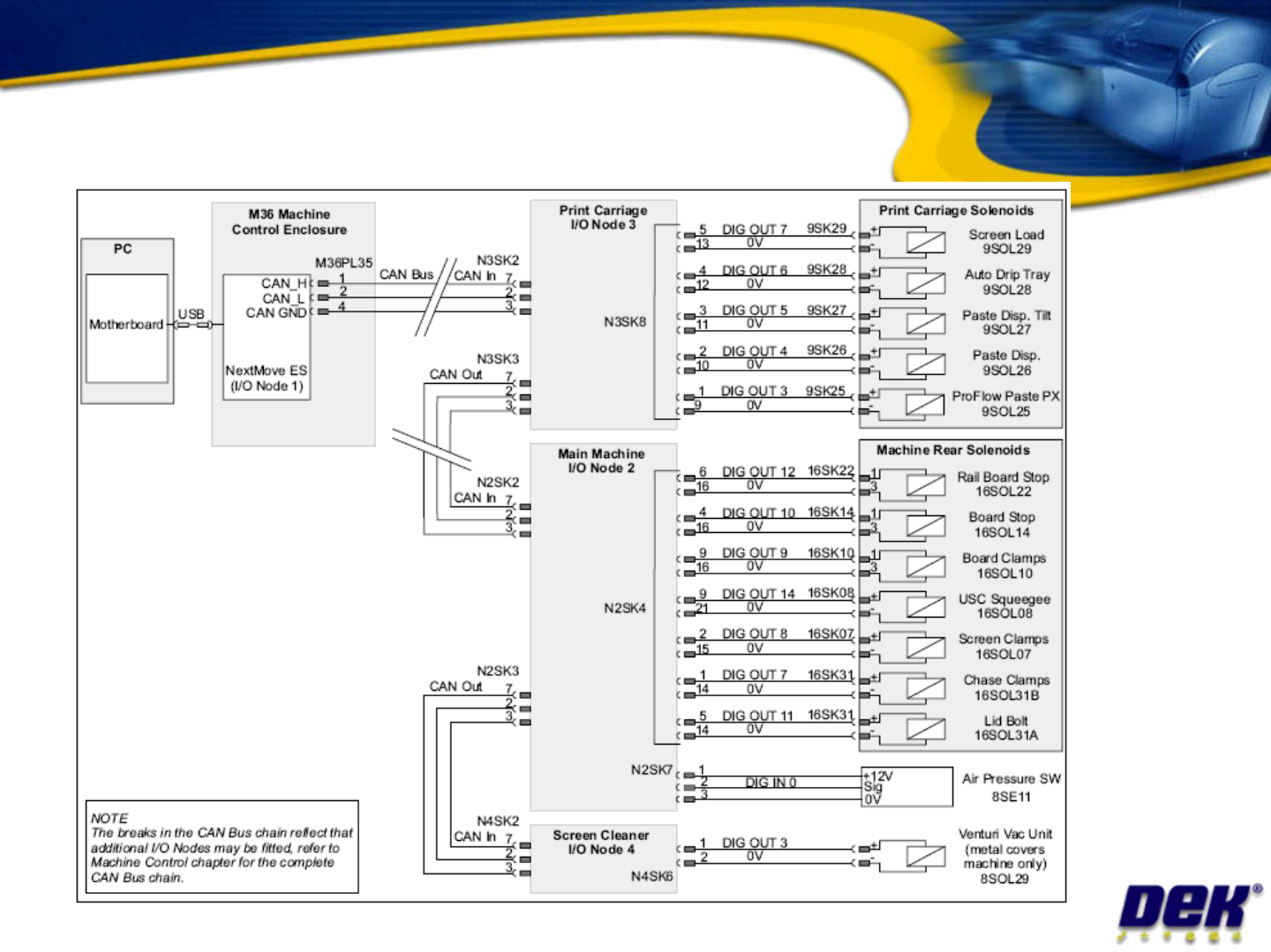

Electrical schematic
Issue 2: July 2007

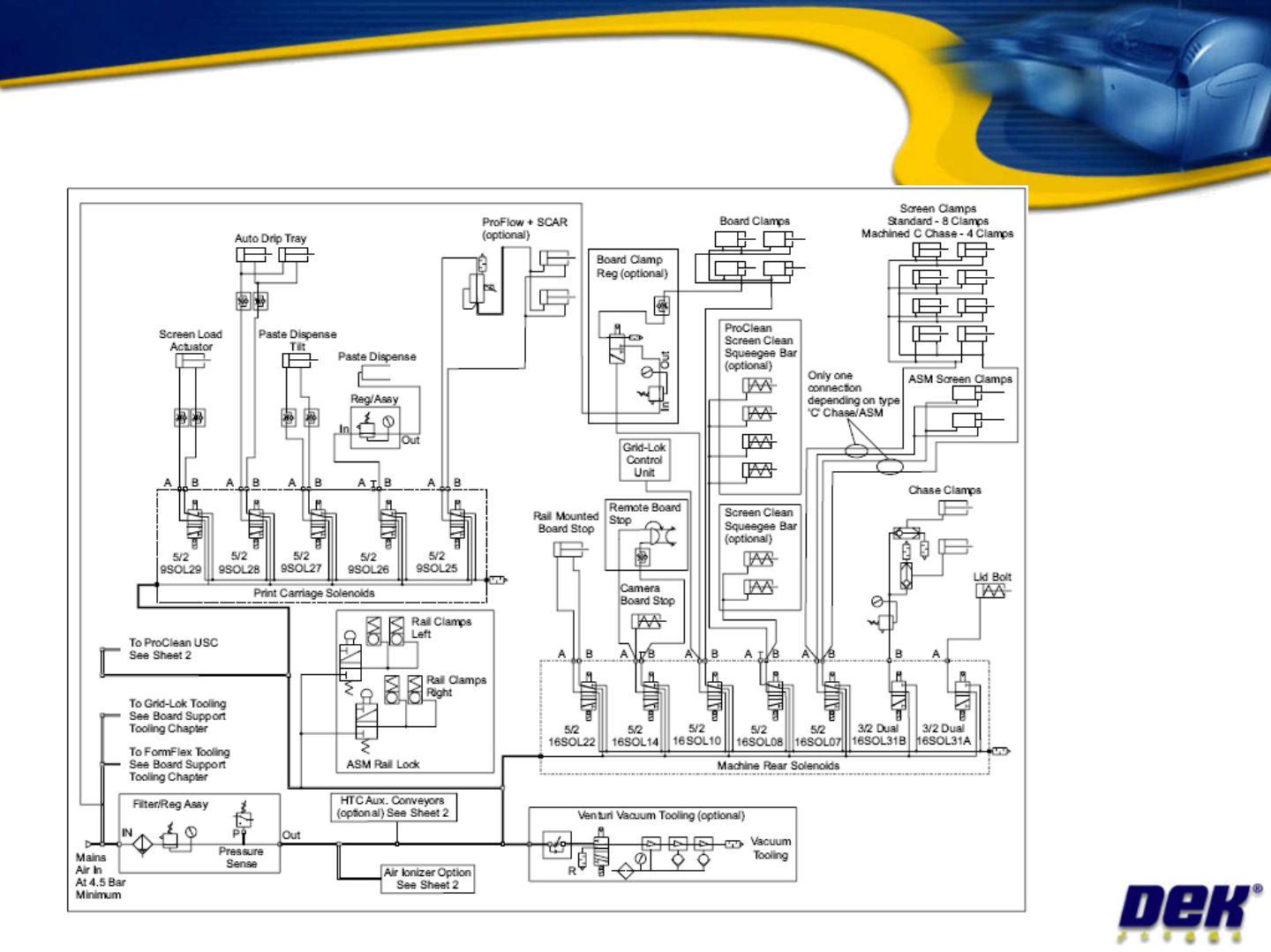

Pneumatic schematic
Issue 2: July 2007
