Electrical en closures Issue 2: July 2007 With Advantech PC With I-Bus PC
Electrical system Quiz
•
Which configurations and settings must be completed if the
Nextmove ES card is changed?
•
Name 3 locations where +24v can be monitored?
•
Which cards are interchangeable for troubleshooting
purposes?
Issue 2: July 2007
purposes?
Task: Complete the answers in your workbook

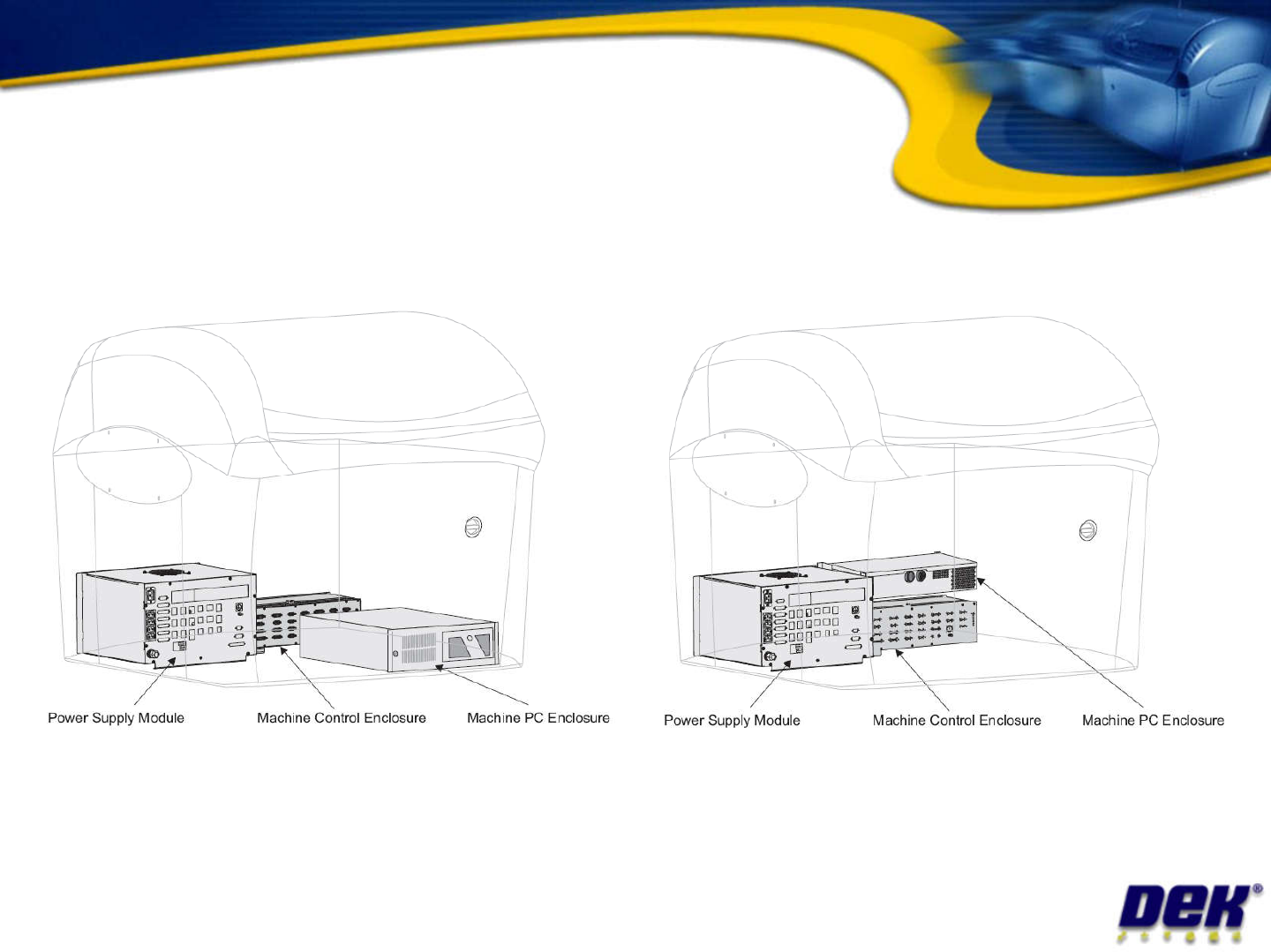

Electrical enclosures
Issue 2: July 2007
With Advantech PC
With I-Bus PC

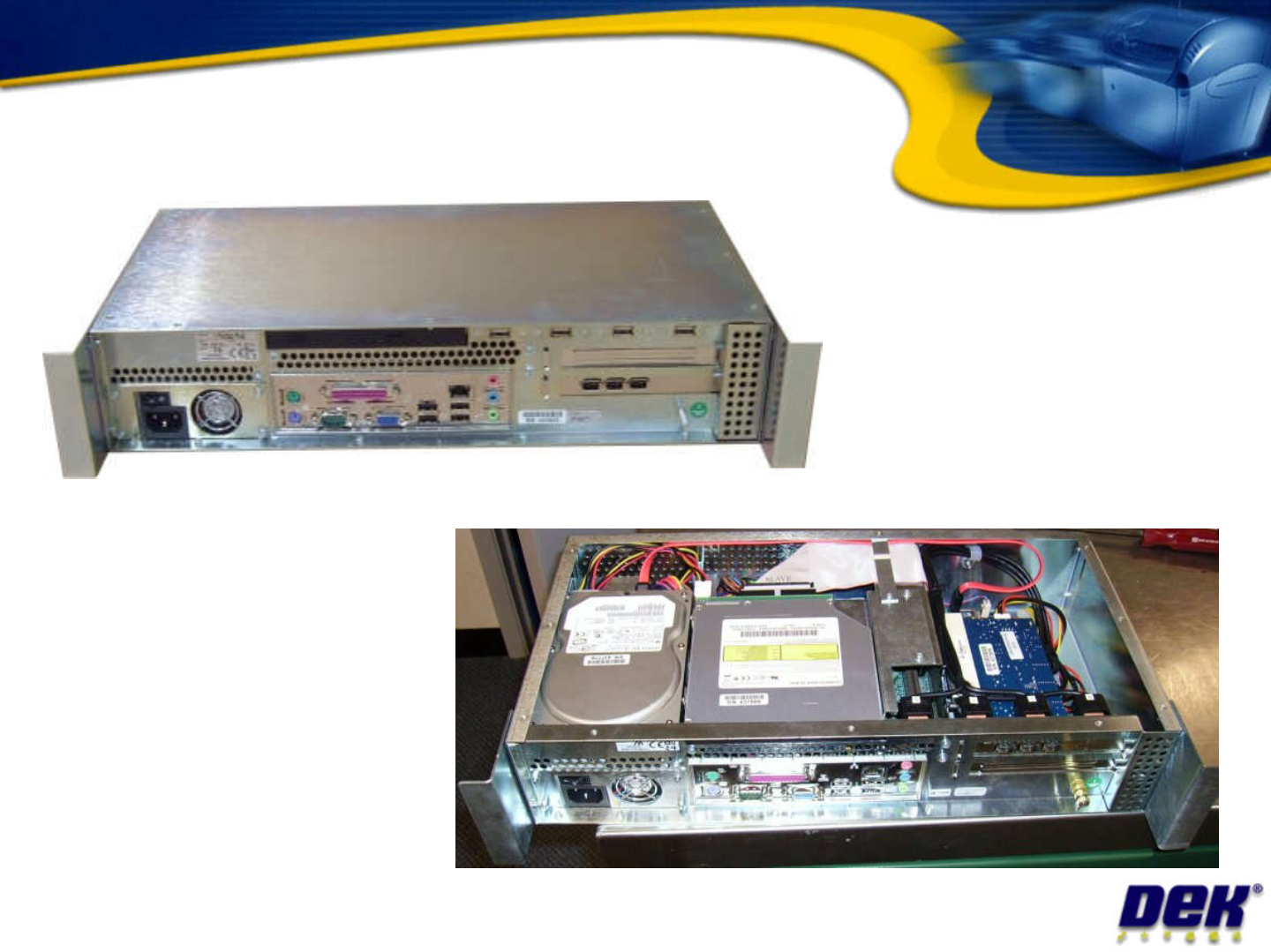

I-bus PC (Digital Camera)
Issue 2: July 2007
